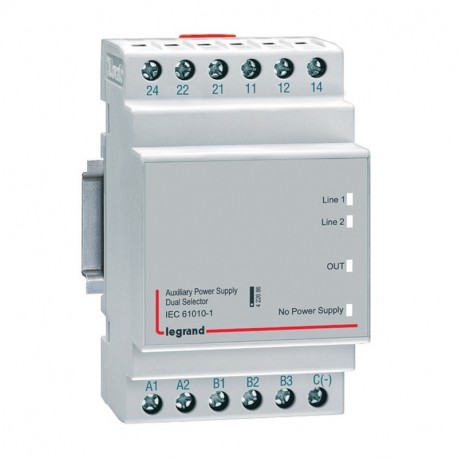

422686 LEGRAND DUAL FEED MODULE

Code: 422686

Manufacturer: LEGRAND

Description:

DUAL FEED MODULE
MODULE FOR DOUBLE POWER
Dual power supply selector - for automatic transfer switch control units
Dual feed module

Categories:

  • Low-voltage industrial components > AC-power supply
  • LEGRAND > DPX3 MOLDED BOX

Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 621,19 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 5 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

  • Pack (number of units)1
  • Volume (dm3)0.831
  • Weight (g)242.00
Product characteristics
Dual power supply selector
  • Dual power supply selector measures and controls two supply voltages at its inputs (single phase, 230 V~) and selects the most adapted voltage for auxiliary circuits supply
  • Equipped with 1 alarm contact, if no supply voltage can be selected within the limits
General characteristics
Automatic transfer switch control units
  • They can control transfer switching between two sources, manage generator start/stop, control single phase, two-phase and three-phase networks, control phase-phase and phase-neutral voltages
  • For DPX³ and DMX³ circuit breakers and CTX³ contactors

ETIM for 422686 Low-voltage industrial controls and switchgear (EC002541)

Feature namePower output (EF003034)
Feature value2.4 W
Feature nameHeight (EF000040)
Feature value90 mm
Feature nameDegree of protection (IP) (EF005474)
Feature valueIP20
Feature nameSuitable for safety functions (EF001597)
Feature valueNo
Feature nameSuitable for rail mounting (EF003972)
Feature valueYes
Feature nameOutput voltage stabilized (EF003092)
Feature valueNo
Feature nameRated supply voltage AC 50 Hz (EF007076)
Feature value80 V
Feature nameRated supply voltage AC 60 Hz (EF007077)
Feature value80 V
Feature nameShort-circuit-proof (EF007332)
Feature valueYes
Feature nameMax. output current 1 (EF008284)
Feature value4 A
Feature nameMax. output current 2 (EF008285)
Feature value4 A
Feature nameModular version (EF001126)
Feature valueYes
Feature nameVoltage type (supply voltage) (EF002991)
Feature valueAC
Feature nameDirect mounting possible (EF005689)
Feature valueYes
Feature nameBuilt-in height (EF000332)
Feature value104.7 mm
Feature nameStabilized (EF005302)
Feature valueNo
Feature nameType of electric connection (EF003961)
Feature valueScrew connection
Feature name2nd secondary output voltage (EF006797)
Feature value250 V
Feature name1st secondary output voltage (EF006792)
Feature value250 V
Feature nameSecondary voltage adjustable (EF007002)
Feature valueNo
Feature nameDepth (EF000049)
Feature value64.9 mm
Feature namePower consumption (EF000346)
Feature value7 VA
Feature nameWidth (EF000008)
Feature value53.5 mm
