LEGRANDDPX3 MOLDED BOX422681 LEGRAND BASIC AUTOMATION BOX

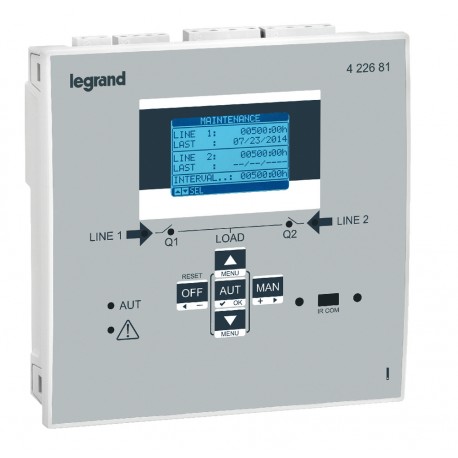

LEGRAND 422681 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

422681 LEGRAND BASIC AUTOMATION BOX

Code: 422681

Manufacturer: LEGRAND

Description:

BASIC AUTOMATION BOX
Automatic transfer switch control units for standard management of 2 circuit breakers - 6 inputs 7 outputs
Circuit breaker control unit between two sources for switches

Categories:

  • Low-voltage industrial components > Accessories/spare parts for low-voltage switch technology
  • LEGRAND > DPX3 MOLDED BOX

Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 1.077,41 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 5 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

    • Pack (number of units)1
    • Volume (dm3)4.335
    • Weight (g)604.00
    Product characteristics
    Automatic transfer switch control units
    For standard management of 2 circuit breakers
    • Configuration software available for download via e-catalogue ACU Configurator app for smartphone and tablet available on Apple Store and Google Play
    • 6 programmable digital inputs and 7 programmable relay outputs
    • LCD display
    • IR communication port on the front panel for connection of USB or WiFi modules Cat.No 4 226 87/88
    • Can be configured with the help of front panel touch keys or of the Legrand dedicated software
    • Power supply: 110-240 V~
    • IP40
    General characteristics
    Automatic transfer switch control units
    • They can control transfer switching between two sources, manage generator start/stop, control single phase, two-phase and three-phase networks, control phase-phase and phase-neutral voltages
    • For DPX³ and DMX³ circuit breakers and CTX³ contactors

    ETIM for 422681 Low-voltage industrial controls and switchgear (EC002498)

    Feature nameAccessory (EF013236)
    Feature valueYes
    Feature nameSpare part (EF013237)
    Feature valueNo
    Feature nameType of accessory/spare part (EF000215)
    Feature valueOther

    DATASHEET - PDF

    Title
    Size
    Type
    422681 EN_422681.pdf
    133 Kbytes
