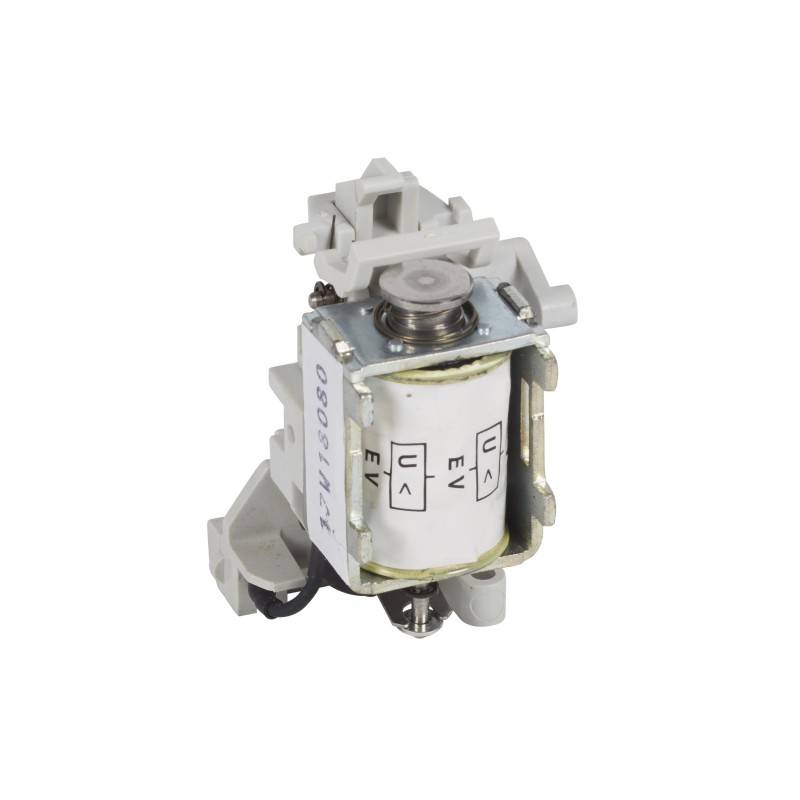

422623 LEGRAND DECLENCHEUR MIN. TENS. RETARDS View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

422623 LEGRAND DECLENCHEUR MIN. TENS. RETARDS

422623

LEGRAND

DECLENCHEUR MIN. TENS. RETARDS

Minimum voltage dispro coil with delay (800 ms) for DPX³ 630 and 1600 molded case switches

Minimum voltage coil with delay for DPX³ 630 and 1600

More details


Low-voltage industrial components > Under voltage coil

DPX3 MOLDED BOX

Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND

Total: $249.26
Unit price: $249.26
This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


Suitable for all construction sites, the DPX³ range offers 4 sizes of moulded case switches, for gauges between 16 A and 1600 A and breaking powers ranging from 16 to 100 kA. It also offers a wide range of versions to meet all needs: circuit breakers or electronics according to the level of protection required, fixed, sectional and removable devices according to the desired level of maintenance and residual current circuit breakers. With the DPX³ electronic switches with integrated measurement, it is possible to monitor the parameters and consumption of the different circuits in the system, without additional devices or accessories. The selectivity between the switches is optimal thanks to the performance of the DPX³ devices, in critical configurations, the dynamic selectivity and logic selectivity offered by the protection units of the electronic DPX³ ensure maximum continuity of service.
Pilot Pilot Supply Nominal Voltage for DC24-24 V
Drive Tension TypeCC
Running the electrical connectionThreaded connection
Number of contacts normally opened0
Number of Normally Closed Contacts0
Number of investor contacts0
RetardedYes
Suitable for circuit breakersYes
Load switch fitYes
Suitable for motor protection switchYes
Suitable for overload relaysYes

ETIM for 422623 Low-voltage industrial controls and switchgear (EC001022)
Feature Name Feature Value
Rated control supply voltage DC (EF003980) 24 V
Number of contacts as change-over contact (EF008257) 0
Delayed (EF001541) Yes
Suitable for off-load switch (EF001543) Yes
Suitable for power circuit breaker (EF005863) Yes
Type of electric connection (EF003961) Screw connection
Voltage type for actuating (EF008242) DC
Number of contacts as normally closed contact (EF008255) 0
Number of contacts as normally open contact (EF008256) 0
Suitable for motor safety switch (EF005826) Yes
Suitable for overload relay (EF001545) Yes
