LEGRANDDPX3 MOLDED BOX422243 LEGRAND DPX³ 630 B. TRIGGER E.T. 400V

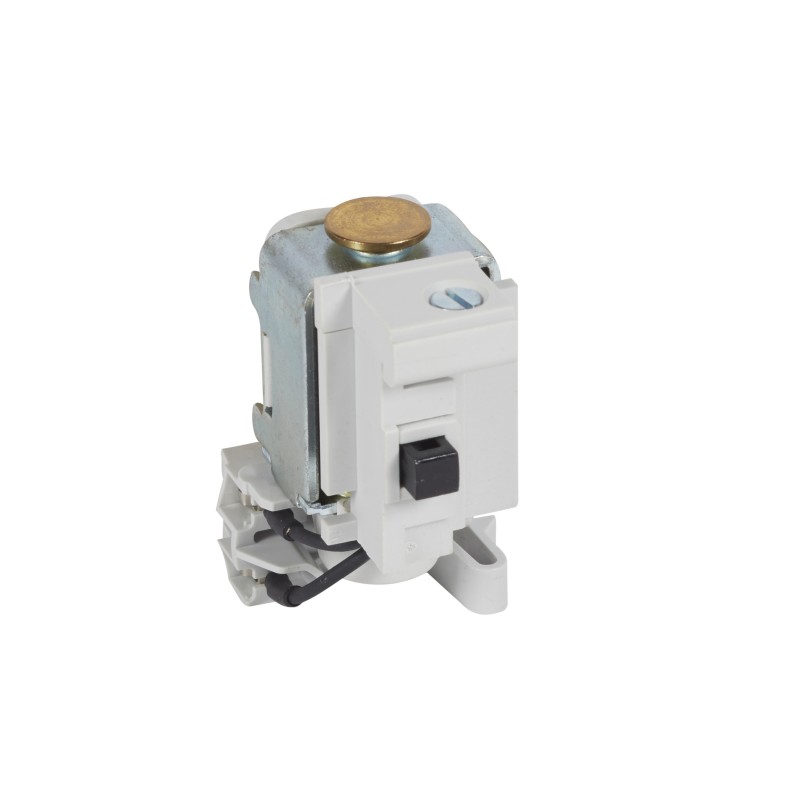

LEGRAND 422243 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

422243 LEGRAND DPX³ 630 B. TRIGGER E.T. 400V

Code: 422243

Manufacturer: LEGRAND

Description:

DPX³ 630 B. TRIGGER E.T. 400V
DPX3 630 B. SHOT E. T. 400V
Shunt releases for DRX/DPX³ 400 V~ and =
Current emission coil - coil 400V~/= - DPX³/DPX³ -I 630 and 1600

Categories:

  • Low-voltage industrial components > Switch spool for power circuit breaker
  • LEGRAND > DPX3 MOLDED BOX

Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 92,97 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 15-17 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

  • Pack (number of units)1
  • Volume (dm3)0.31
  • Weight (g)83.00
Product characteristics
Shunt releases
  • Allow remote tripping of a DPX³ or DPX³-I 630 and DPX³ 1600
  • Shunt inrush power 300 VA
  • Coil voltage 400 V~
General characteristics
DPX³ 630 and 1600 - common auxiliaries

ETIM for 422243 Low-voltage industrial controls and switchgear (EC002483)

Feature nameRated control supply voltage DC (EF003980)
Feature value380 V
Feature nameBuilt as switching-on coil (EF005914)
Feature valueNo
Feature nameVoltage type for actuating (EF008242)
Feature valueAC/DC
Feature nameRated control supply voltage AC 50 Hz (EF003978)
Feature value380 V
Feature nameRated control supply voltage AC 60 Hz (EF003979)
Feature value380 V
Feature nameBuilt as switch-off coil (EF006263)
Feature valueYes
