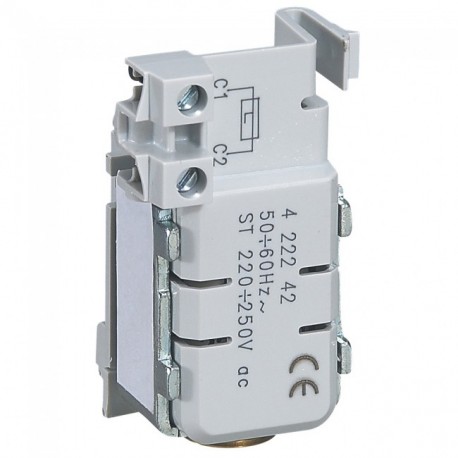

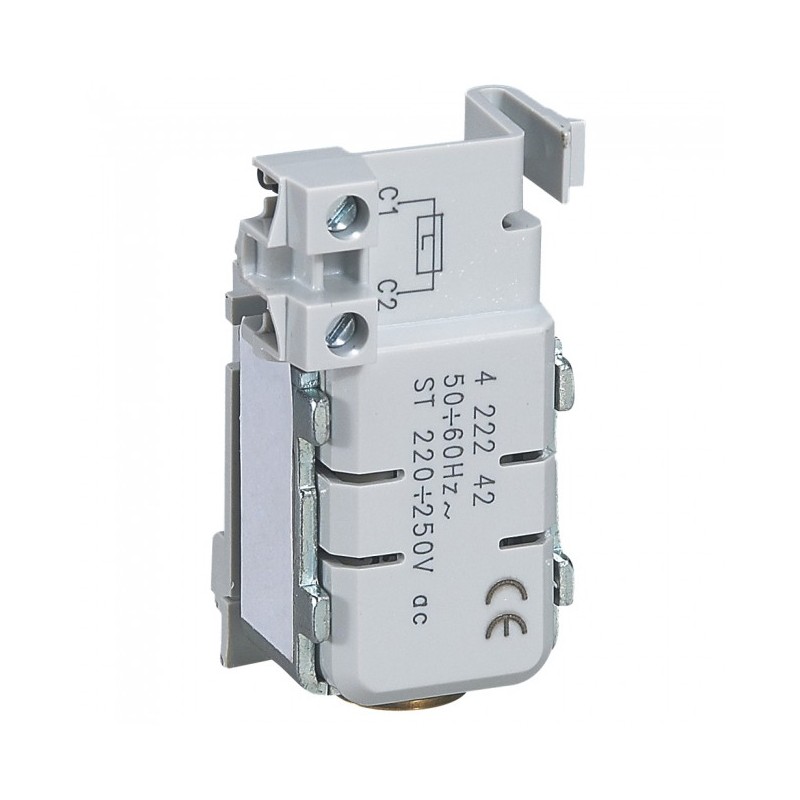

422242 LEGRAND DPX3 630 B. SHOT E. T. 230V
422242
LEGRAND
DPX3 630 B. SHOT E. T. 230V
Shunt releases for DRX/DPX³ 230 V~ and =
Current emission coil - coil 230V~/= - DPX³/DPX³ -I 630 and 1600
Low-voltage industrial components > Switch spool for power circuit breaker
DPX3 MOLDED BOX
Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND
Best sellers
▲More info
▲- Pack (number of units)1
- Volume (dm3)0.31
- Weight (g)91.00
- Allow remote tripping of a DPX³ or DPX³-I 630 and DPX³ 1600
- Shunt inrush power 300 VA
- Coil voltage 230 V~
| Feature Name | Feature Value |
|---|---|
| Rated control supply voltage DC (EF003980) | 220 V |
| Built as switching-on coil (EF005914) | No |
| Voltage type for actuating (EF008242) | AC/DC |
| Rated control supply voltage AC 50 Hz (EF003978) | 220 V |
| Rated control supply voltage AC 60 Hz (EF003979) | 220 V |
| Built as switch-off coil (EF006263) | Yes |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| 422242 EN_422242.pdf | 130 Kbytes |
 |
