LEGRANDDPX3 MOLDED BOX421083 LEGRAND DPX3 EXTERNAL POWER

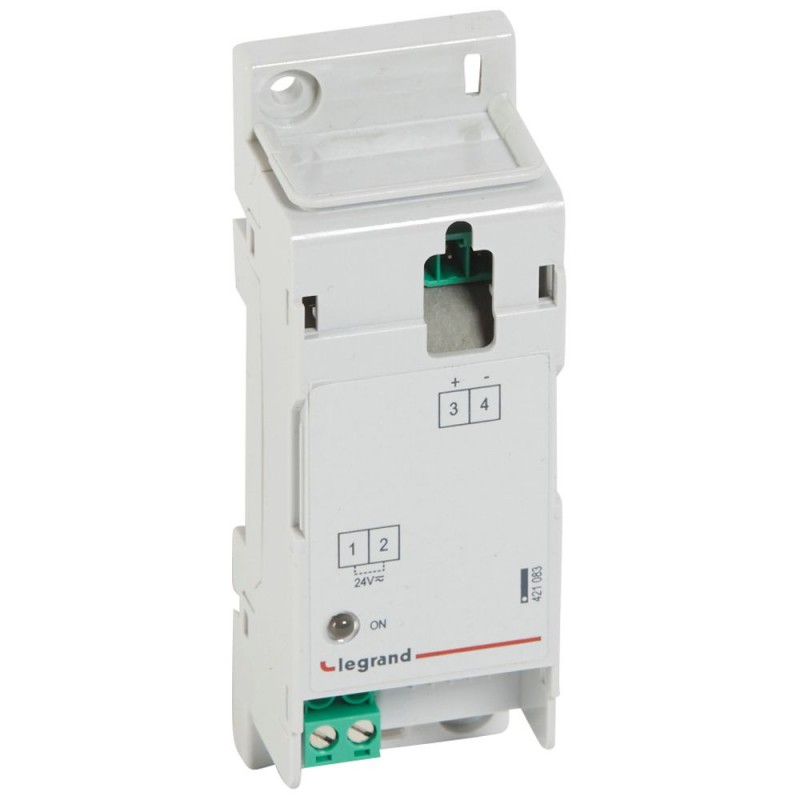

LEGRAND 421083 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

421083 LEGRAND DPX3 EXTERNAL POWER

Code: 421083

Manufacturer: LEGRAND

Description:

DPX3 EXTERNAL POWER
DPX3 SUPPLY EXTERNAL
Auxiliary power supply for DPX³ - 24 V~/= - 250 mA - 2 modules
Auxiliary power supply for the DPX³ electronic unit

Categories:

  • Installation bus systems > Power supply for bus system
  • LEGRAND > DPX3 MOLDED BOX

Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 118,05 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 5 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

  • Pack (number of units)1
  • Volume (dm3)0.556
  • Weight (g)85.00
Product characteristics
Auxiliary power supply for DPX³
  • For supplying DPX³ electronic units when the circuit breaker is open or when the current passing through it is insufficient
  • Input voltage 24 V~/=
  • 2 modules
  • Output 250 mA: can supply several circuit breakers
  • Consumption:
    • Electronic DPX³ (S2/Sg): 50 mA
    • Electronic DPX³ with measurement (S2/Sg): 62.5 mA
    • Electronic DPX³ with residual current protection(S2): 50 mA
    • Electronic DPX³ with residual current protection and measurement (S2): 62.5 mA
General characteristics
DPX³ 160, 250, 630 and 1600 - power supervision system

ETIM for 421083 Installation bus systems (EC000675)

Feature nameWith LED indication (EF005950)
Feature valueYes
Feature nameBus system KNX-RF (Radio Frequency) (EF008855)
Feature valueNo
Feature nameWidth in number of modular spacings (EF002950)
Feature value2
Feature nameBus system LON (EF003831)
Feature valueNo
Feature nameMounting method (EF000003)
Feature valueOther
Feature nameBus system KNX (EF001499)
Feature valueNo
Feature nameBus system Powernet (EF001501)
Feature valueNo
Feature nameNumber of lines to feed (EF000873)
Feature value8
Feature nameBus system radio frequency (EF001500)
Feature valueNo
Feature nameMax. output current (EF001315)
Feature value250 mA
Feature nameOther bus systems (EF003811)
Feature valueNone
Feature nameBus voltage stockable (EF001518)
Feature valueNo

DATASHEET - PDF

Title
Size
Type
421083 EN_421083.pdf
130 Kbytes
