LEGRANDDPX3 MOLDED BOX421013 LEGRAND DPX³ 24 Vac/dc emission coil

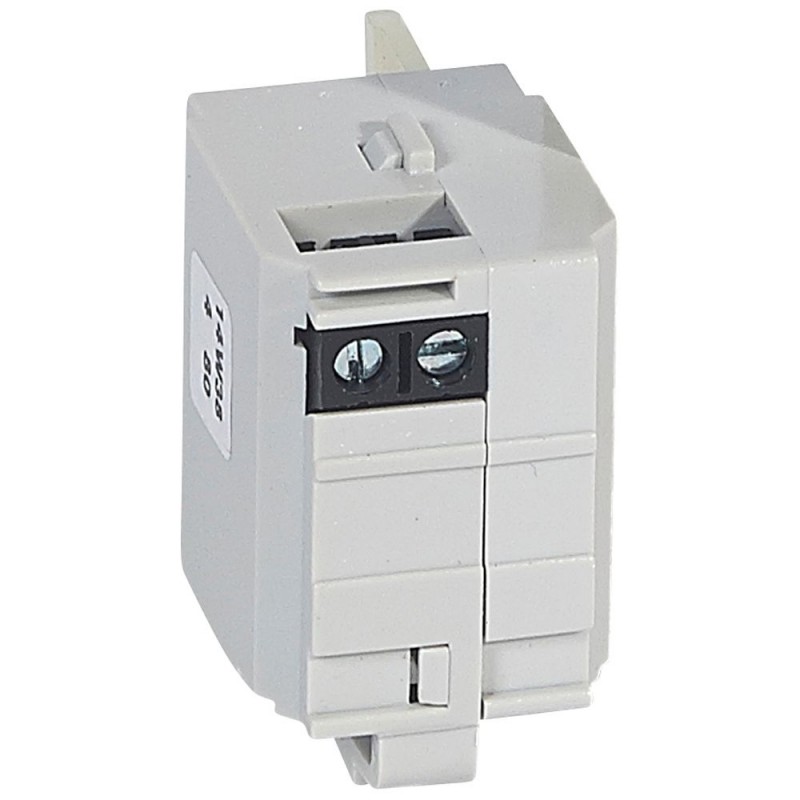

LEGRAND 421013 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

421013 LEGRAND DPX³ 24 Vac/dc emission coil

Code: 421013

Manufacturer: LEGRAND

Description:

DPX³ 24 Vac/dc emission coil
DPX3 coil issue 24 Vac/dc
Shunt release - for DPX³ - 24 V~/=
Current emission coil for DPX³/DPX³ -I 160/250 - coil 24V~/=

Categories:

  • Low-voltage industrial components > Shunt release (for power circuit breaker)
  • LEGRAND > DPX3 MOLDED BOX

Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 70,58 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 15-17 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

  • Pack (number of units)1
  • Volume (dm3)0.127
  • Weight (g)52.00
Product characteristics
Shunt releases
  • Allow remote tripping of a DPX³/DPX³-I 160 and 250
  • 24 V~/=
General characteristics
DPX³ 160 and 250 common auxiliaries and accessories

ETIM for 421013 Low-voltage industrial controls and switchgear (EC001023)

Feature nameRated control supply voltage DC (EF003980)
Feature value24 V
Feature nameNumber of contacts as change-over contact (EF008257)
Feature value0
Feature nameSuitable for off-load switch (EF001543)
Feature valueYes
Feature nameSuitable for power circuit breaker (EF005863)
Feature valueYes
Feature nameType of electric connection (EF003961)
Feature valueScrew connection
Feature nameVoltage type for actuating (EF008242)
Feature valueAC/DC
Feature nameNumber of contacts as normally closed contact (EF008255)
Feature value0
Feature nameNumber of contacts as normally open contact (EF008256)
Feature value0
Feature nameSuitable for overload relay (EF001545)
Feature valueYes
Feature nameSuitable for motor safety switch (EF005826)
Feature valueYes
Feature nameRated control supply voltage AC 50 Hz (EF003978)
Feature value24 V
Feature nameRated control supply voltage AC 60 Hz (EF003979)
Feature value24 V

DATASHEET - PDF

Title
Size
Type
421013 EN_421013.pdf
128 Kbytes
