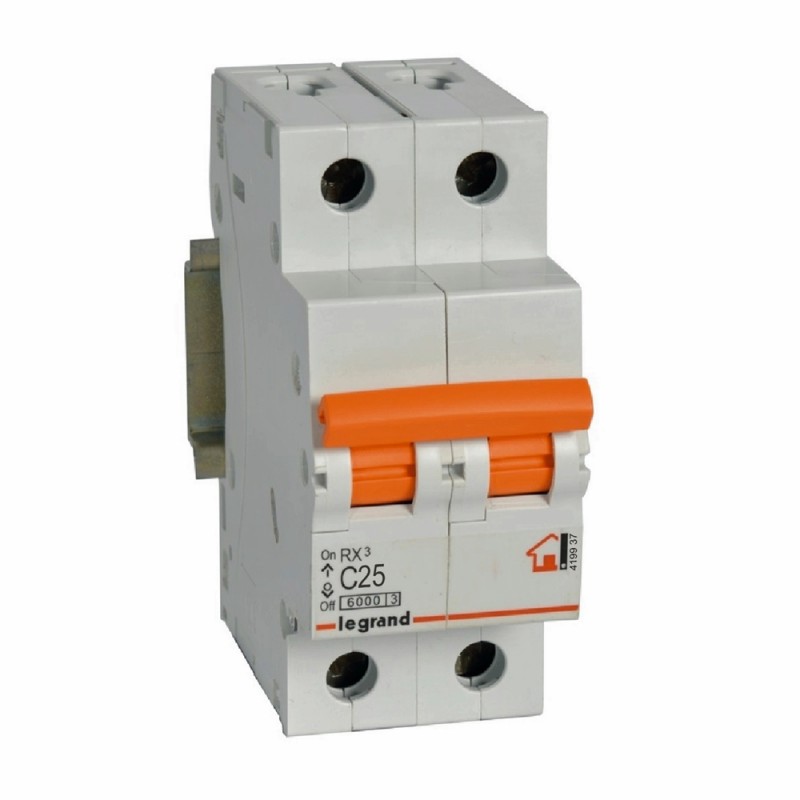

419937 LEGRAND MAGNET. HOUSING RX3 2P 25A
419937
LEGRAND
6
MAGNET. HOUSING RX3 2P 25A
Circuit breaker RX3 - 2P - 230/400 V~ - 25 A - curve C
RX³ Circuit Breaker - 2P - 230/400V~ - 25A - C curve
Circuit breakers and fuses > Miniature circuit breaker (MCB)
HOME CIRCUIT BREAKERS
Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND
Best sellers
▲More info
▲Product features
Circuit breaker circuit breaker RX3 Bipolar 230/400 V~ - Curve C - rated current: 25a - Number of modules: 2General characteristics
Circuit RX3 - breakers from 10 a To 40 A - curve C - breaking capacity 6000A - According to UNE en-60898-1 - Screws, safety pins and headache, mixed - Use domestic - Mounting on profile symmetric - Capacity of embornamiento: 25 mm2 flexible/35 mm2 rigid| Feature Name | Feature Value |
|---|---|
| Explosion-proof (EF004663) | No |
| Degree of protection (IP) (EF005474) | IP20 |
| Concurrently switching neutral conductor (EF005997) | Yes |
| Voltage type (EF000187) | AC |
| Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V (EF009555) | 6 kA |
| Additional equipment possible (EF008148) | No |
| Rated impulse withstand voltage Uimp (EF011980) | 4 kV |
| Number of protected poles (EF005548) | 1 |
| Frequency (EF000416) | 50 Hz |
| Built-in depth (EF000218) | 44 mm |
| Number of poles (total) (EF008618) | 2 |
| Pollution degree (EF002570) | 2 |
| Width in number of modular spacings (EF002950) | 2 |
| Rated insulation voltage Ui (EF001366) | 400 V |
| Rated current (EF000227) | 25 A |
| Current limiting class (EF002568) | 3 |
| Flush-mounted installation (EF007517) | Yes |
| Release characteristic (EF000889) | C |
| Rated voltage (EF000228) | 400 V |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| 419937 EN_419925.pdf | 508 Kbytes |
 |
