LEGRANDINDUSTRIAL CONTACTORS / SWITCHES416820 LEGRAND RELAY CONTROL 2NA+2NC 24VAC

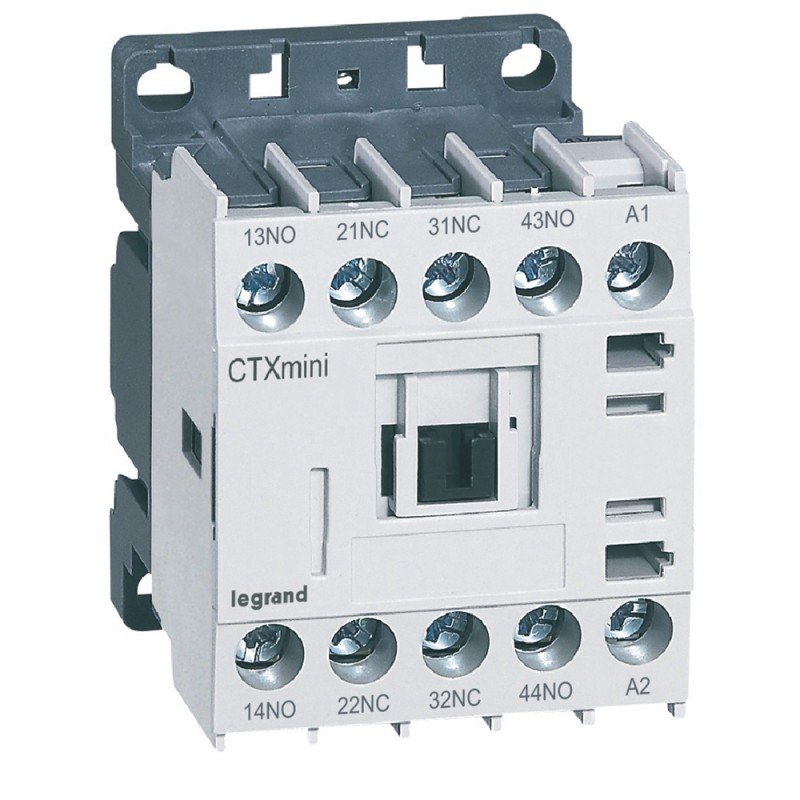

LEGRAND 416820 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

416820 LEGRAND RELAY CONTROL 2NA+2NC 24VAC

Code: 416820

Manufacturer: LEGRAND

Description:

RELAY CONTROL 2NA+2NC 24VAC
CTX³ control relay - 2 NO + 2 NC - 24 V~
CTX³ Control Relay - 2 NA + 2 NC - 24V~

Categories:

  • Low-voltage industrial components > Contactor relay
  • LEGRAND > INDUSTRIAL CONTACTORS / SWITCHES

Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 37,01 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 15-17 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

  • Pack (number of units)1
  • Volume (dm3)0.215
  • Weight (g)193.00
Product characteristics
CTX³ control relays
  • 4-pole
  • Conform to IEC 60 947
  • Ith = 10 A
  • Low consumption coil
2 NO + 2 NC
  • 24 V~
General characteristics
Control relays CTX³

ETIM for 416820 Low-voltage industrial controls and switchgear (EC000196)

Feature nameWith LED indication (EF005950)
Feature valueNo
Feature nameConnection type auxiliary circuit (EF006820)
Feature valueScrew connection
Feature nameNumber of auxiliary contacts as normally open contact (EF001376)
Feature value2
Feature nameInterface (EF000594)
Feature valueYes
Feature nameNumber of auxiliary contacts as change-over contact (EF003531)
Feature value0
Feature nameMounting method (EF000003)
Feature valueDIN-rail/screw
Feature nameRated operation current Ie, 400 V (EF001378)
Feature value1.9 A
Feature nameNumber of auxiliary contacts as normally closed contact (EF001377)
Feature value2
Feature nameVoltage type for actuating (EF008242)
Feature valueAC
Feature nameNumber of auxiliary contacts as normally closed contact, delayed switching (EF007281)
Feature value0
Feature nameNumber of auxiliary contacts as normally open contact, leading (EF007282)
Feature value0
Feature nameRated control supply voltage AC 50 Hz (EF003978)
Feature value20.4 V
Feature nameRated control supply voltage AC 60 Hz (EF003979)
Feature value20.4 V
Feature nameSuitable for manual operation (EF002978)
Feature valueYes

DATASHEET - PDF

Title
Size
Type
416820 EN_416800.pdf
619 Kbytes
