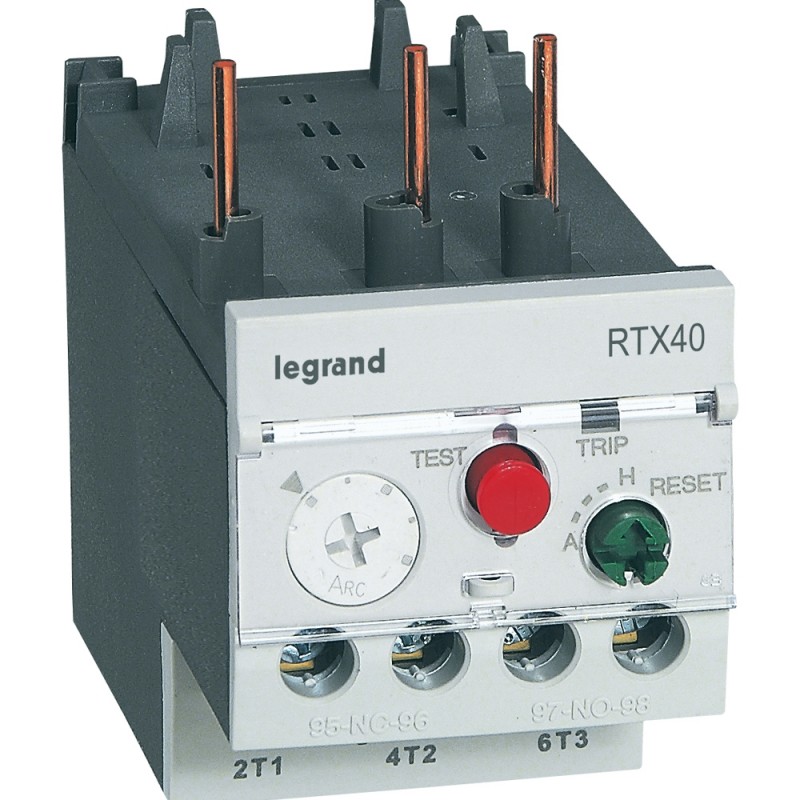

LEGRAND 416675 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

416675 LEGRAND RTX RELAY 18-25A D T2.3

Code: 416675

Manufacturer: LEGRAND

Description:

RTX RELAY 18-25A D T2.3
Thermal overload relay RTX³ 40 - 18 to 25 A - for CTX³ 22 and 40 - diff.
RTX³ 40 Thermal Relays - 18 to 25A for CTX³ 22 & 40

Categories:

  • Low-voltage industrial components > Thermal overload relay
  • LEGRAND > INDUSTRIAL CONTACTORS / SWITCHES

Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 80,09 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 15-17 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

  • Pack (number of units)1
  • Volume (dm3)0.38
  • Weight (g)187.00
Product characteristics
Thermal overload relays
  • Class 10A
  • Integrated auxiliary contacts 1 NO + 1 NC
RTX³ 40
  • For CTX³ 22 and 40
  • With screw terminals
  • Type diff.
  • Adjustment range - I min. : 18 A
  • Adjustment range - I max. : 25 A
General characteristics
Thermal relays RTX³ - for CTX³ 3-pole industrial contactors
  • Thermal protection against overloads, long starting times and lasting stalling of the motor
  • Differential type ensures a better protection in case of one phase failure thanks to faster tripping
  • Conform to IEC 60 947-1, IEC 60 947-4-1

ETIM for 416675 Low-voltage industrial controls and switchgear (EC000106)

Feature nameNumber of auxiliary contacts as normally open contact (EF001376)
Feature value1
Feature nameRelease class (EF006668)
Feature valueCLASS 10
Feature nameNumber of auxiliary contacts as change-over contact (EF003531)
Feature value0
Feature nameMax. rated operation voltage Ue (EF007357)
Feature value690 V
Feature nameMounting method (EF000003)
Feature valueDirect attachment
Feature nameNumber of auxiliary contacts as normally closed contact (EF001377)
Feature value1
Feature nameAdjustable current range (EF008211)
Feature value18 A
Feature nameType of electrical connection of main circuit (EF006819)
Feature valueScrew connection

DATASHEET - PDF
