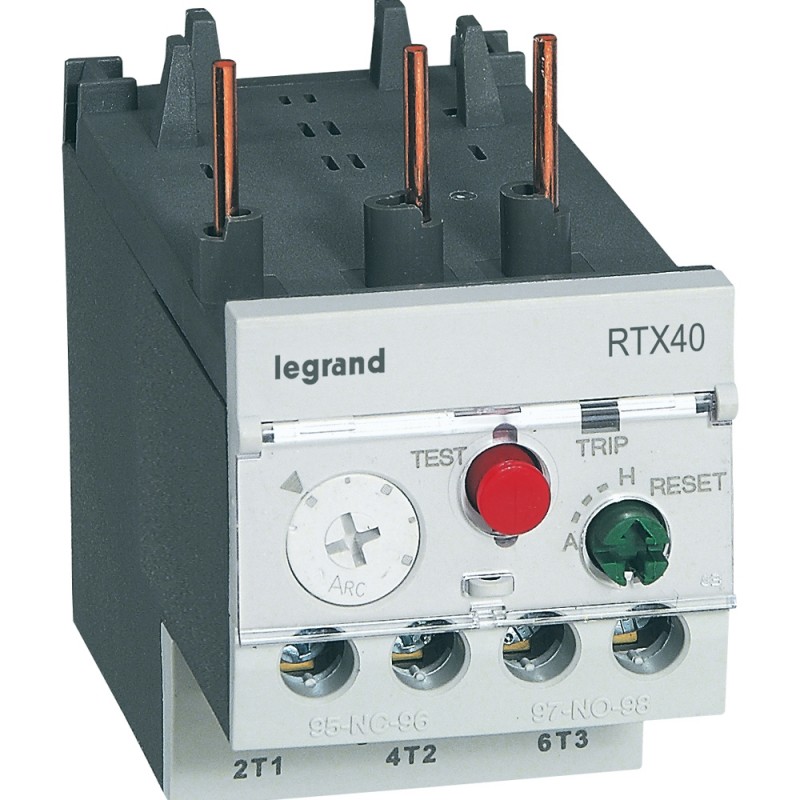

416672 LEGRAND RTX RELAY 9-13A D T2,3
416672
LEGRAND
RTX RELAY 9-13A D T2,3
Thermal overload relay RTX³ 40 - 9 to 13 A - for CTX³ 22 and 40 - diff.
RTX³ 40 Thermal Relays - 9 to 13A for CTX³ 22 & 40
Low-voltage industrial components > Thermal overload relay
INDUSTRIAL CONTACTORS / SWITCHES
Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND
Best sellers
▲More info
▲- Pack (number of units)1
- Volume (dm3)0.372
- Weight (g)184.00
- Class 10A
- Integrated auxiliary contacts 1 NO + 1 NC
- For CTX³ 22 and 40
- With screw terminals
- Type diff.
- Adjustment range - I min. : 9 A
- Adjustment range - I max. : 13 A
- Thermal protection against overloads, long starting times and lasting stalling of the motor
- Differential type ensures a better protection in case of one phase failure thanks to faster tripping
- Conform to IEC 60 947-1, IEC 60 947-4-1
| Feature Name | Feature Value |
|---|---|
| Number of auxiliary contacts as normally open contact (EF001376) | 1 |
| Release class (EF006668) | CLASS 10 |
| Number of auxiliary contacts as change-over contact (EF003531) | 0 |
| Max. rated operation voltage Ue (EF007357) | 690 V |
| Mounting method (EF000003) | Direct attachment |
| Number of auxiliary contacts as normally closed contact (EF001377) | 1 |
| Adjustable current range (EF008211) | 9 A |
| Type of electrical connection of main circuit (EF006819) | Screw connection |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| 416672 EN_416672.pdf | 2 Mbytes |
 |
