LEGRANDSUPERVISION AND ENERGY MEASUREMENT414936 LEGRAND EMS CX3 MINI CONFIGURATOR

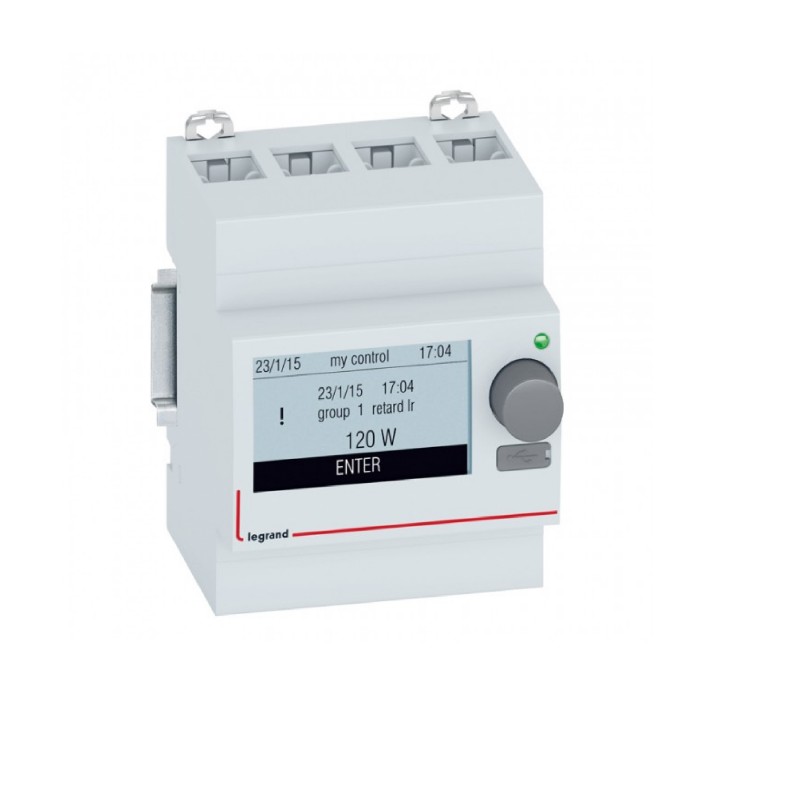

LEGRAND 414936 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

414936 LEGRAND EMS CX3 MINI CONFIGURATOR

Code: 414936

Manufacturer: LEGRAND

Description:

EMS CX3 MINI CONFIGURATOR
Stand alone configuration modules CX³ - rail mounting - 4 modules
EMS CX³ Configuration and Display Module

Categories:

  • Installation bus systems > Display for bus system
  • LEGRAND > SUPERVISION AND ENERGY MEASUREMENT

Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 194,67 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 15-17 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

  • Energy efficiency solution
  • Pack (number of units)1
  • Volume (dm3)0.716
  • Weight (g)143.00
Product characteristics
Stand alone configuration module
Rail mounting
  • Enables upstream busbar connection
  • Optional module for "stand alone" supervision need
  • Enables to configure, test and control CX³ energy management system and to visualize supervision data
  • No computer or IP connection required
  • Consumption: 0.438 W - 36.5 mA (12 V =)
  • Number of modules : 4
General characteristics
CX³ energy management system
  • Conform to IEC/EN 61131-2 (Programmable controllers)
  • CX³ energy management system enables to measure, control and visualize the state of rail mounting protection devices (MCBs, RCCBs, RCBOs, etc...) and head equipment (DMX³ and DPX³), locally ("Stand alone" ) or remotely
  • All the modules of the system are equipped with two specific communication ports: one at the backside (for communication rail) and one underneath (for communication patch cords)
  • Power supply with specific module Cat.No 4 149 45
  • Remote configuration possible with the help of the Energy Management Configuration Software, available for free download via E-Catalogue (giving also access to a 30-day trial version of Energy Management Software Cat.No 4 149 38/39)

ETIM for 414936 Installation bus systems (EC000677)

Feature nameBus system KNX-RF (Radio Frequency) (EF008855)
Feature valueNo
Feature nameRAL-number (similar) (EF003882)
Feature value7035
Feature nameWidth of the front (EF003651)
Feature value17 mm
Feature nameDegree of protection (IP) (EF005474)
Feature valueIP40
Feature nameMaterial (EF002169)
Feature valuePlastic
Feature nameSurface finishing (EF006569)
Feature valueMatt
Feature nameBus system LON (EF003831)
Feature valueNo
Feature nameWith transmission function (EF000872)
Feature valueNo
Feature nameMaterial quality (EF001257)
Feature valueThermoplastic
Feature nameMounting method (EF000003)
Feature valueOther
Feature nameBus system KNX (EF001499)
Feature valueNo
Feature nameWith signal tone (EF003873)
Feature valueNo
Feature nameRadio frequency bidirectional (EF009466)
Feature valueNo
Feature nameTransparent (EF006243)
Feature valueNo
Feature nameWith lighting (EF003829)
Feature valueYes
Feature nameBus system Powernet (EF001501)
Feature valueNo
Feature nameBus system radio frequency (EF001500)
Feature valueNo
Feature nameColour (EF000007)
Feature valueGrey
Feature nameSurface protection (EF000139)
Feature valueOther
Feature nameOther bus systems (EF003811)
Feature valueOther
Feature nameWith anti-theft/dismantling protection (EF003837)
Feature valueNo

DATASHEET - PDF

Title
Size
Type
414936 EN_414936.pdf
3 Mbytes
