LEGRANDSUPERVISION AND ENERGY MEASUREMENT414932 LEGRAND EMS CX3 CONTROL MODULE

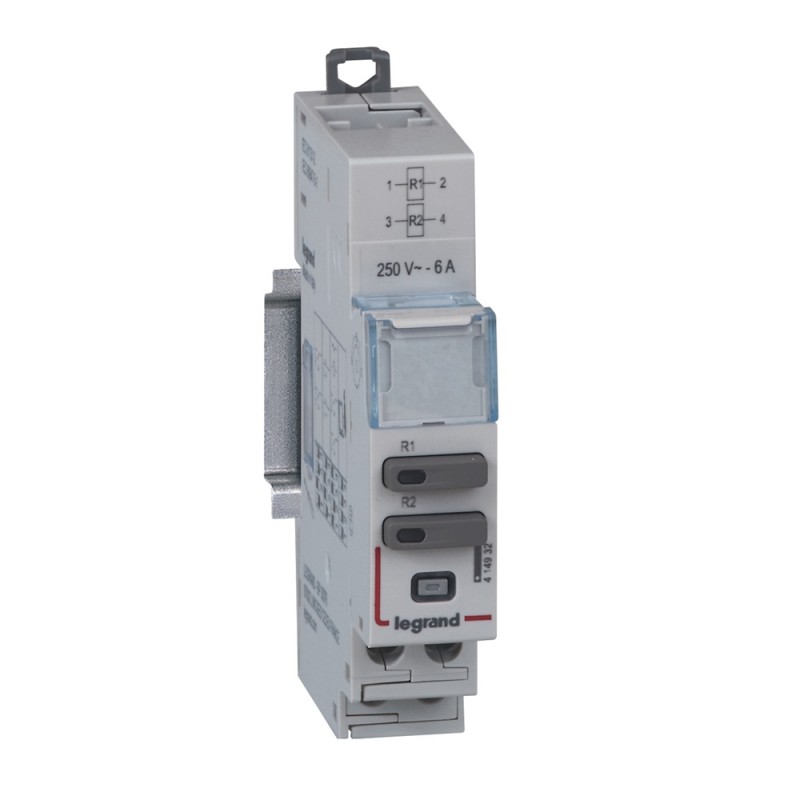

LEGRAND 414932 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

414932 LEGRAND EMS CX3 CONTROL MODULE

Code: 414932

Manufacturer: LEGRAND

Description:

EMS CX3 CONTROL MODULE
EMS CX3 MODULE CONTROL
Universal control modules CX³ - 2 relays 240 V~ - 6 A - 1 module
EMS CX³ Universal Control Module

Categories:

  • Installation bus systems > Switch actuator for bus system
  • LEGRAND > SUPERVISION AND ENERGY MEASUREMENT

Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 105,69 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 15-17 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

  • Energy efficiency solution
  • Pack (number of units)1
  • Volume (dm3)0.219
  • Weight (g)62.00
Product characteristics
Universal control module
  • Enables upstream busbar connection
  • 2 relays: 240 V~ - 6 A
  • Enables to remotely control different electrical loads or motorised controls associated to symmetrical rail mounting protection devices or head equipment (DPX³ MCCBs)
  • Equipped with DIP switches (on the side) allowing product configuration: contact type (NO + NC, 2 NO, etc...) and function (maintained or momentary contact)
  • Consumption: 0.456 W - 38 mA (12 V =)
  • Number of modules : 1
General characteristics
CX³ energy management system
  • Conform to IEC/EN 61131-2 (Programmable controllers)
  • CX³ energy management system enables to measure, control and visualize the state of rail mounting protection devices (MCBs, RCCBs, RCBOs, etc...) and head equipment (DMX³ and DPX³), locally ("Stand alone" ) or remotely
  • All the modules of the system are equipped with two specific communication ports: one at the backside (for communication rail) and one underneath (for communication patch cords)
  • Power supply with specific module Cat.No 4 149 45
  • Remote configuration possible with the help of the Energy Management Configuration Software, available for free download via E-Catalogue (giving also access to a 30-day trial version of Energy Management Software Cat.No 4 149 38/39)

ETIM for 414932 Installation bus systems (EC001097)

Feature nameWith LED indication (EF005950)
Feature valueYes
Feature nameDegree of protection (IP) (EF005474)
Feature valueIP40
Feature nameNumber of digital inputs (EF001992)
Feature value0
Feature nameBus system LON (EF003831)
Feature valueNo
Feature nameMounting method (EF000003)
Feature valueOther
Feature nameBus system KNX (EF001499)
Feature valueNo
Feature nameBus system Powernet (EF001501)
Feature valueNo
Feature nameModular expandability (EF006738)
Feature valueNo
Feature nameBus system radio frequency (EF001500)
Feature valueNo
Feature nameMax. switching power (EF001503)
Feature value1500 W
Feature nameWith bus connection (EF001504)
Feature valueYes
Feature nameDifferent phases connectable (EF003905)
Feature valueYes
Feature nameBus system KNX-RF (Radio Frequency) (EF008855)
Feature valueNo
Feature nameWidth in number of modular spacings (EF002950)
Feature value1
Feature nameBus module detachable (EF009766)
Feature valueNo
Feature nameRadio frequency bidirectional (EF009466)
Feature valueNo
Feature nameMax. number of switching contacts (EF001739)
Feature value2
Feature nameRated operating voltage (EF001435)
Feature value12 V
Feature namePower consumption (EF000346)
Feature value0.46 W
Feature nameRated current (EF000227)
Feature value6 A
Feature nameSuitable for C-load (EF003832)
Feature valueNo
Feature nameOther bus systems (EF003811)
Feature valueOther
Feature nameLocal operation/hand operation (EF003914)
Feature valueYes

DATASHEET - PDF

Title
Size
Type
414932 EN_414932.pdf
5 Mbytes
