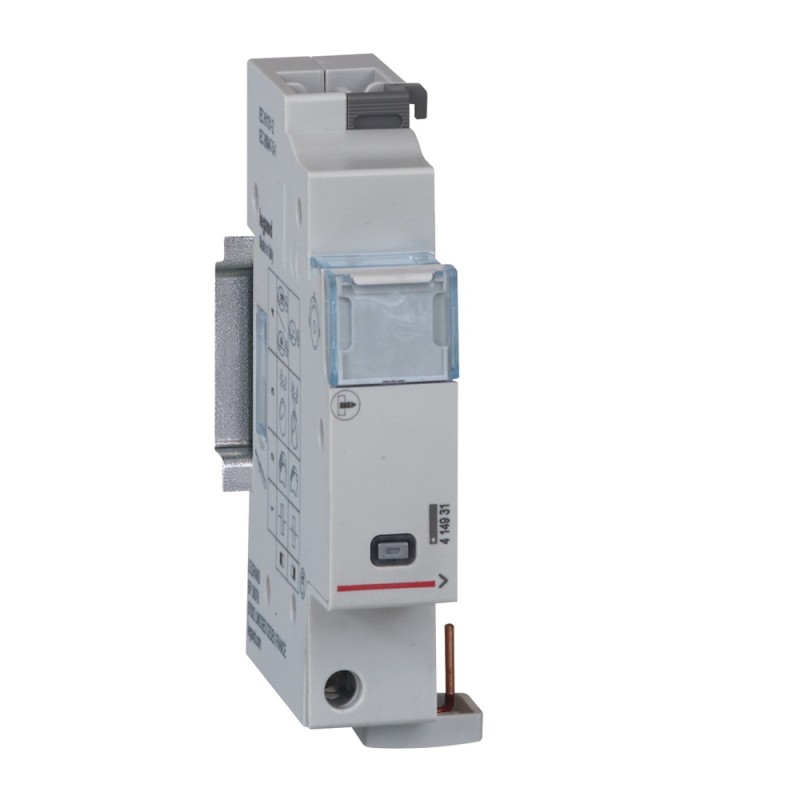

LEGRAND 414931 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

414931 LEGRAND EMS CX3 MOD AUX. FOR TL-CT

Code: 414931

Manufacturer: LEGRAND

Description:

EMS CX3 MOD AUX. FOR TL-CT
Control & state reporting modules CX³ - for latching relay or contactor - 1 module
EMS CX³ Status Indication and Control Module

Categories:

  • Devices for distribution board-/surface mounting > Auxiliary device for distribution board devices
  • LEGRAND > SUPERVISION AND ENERGY MEASUREMENT

Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 143,26 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 15-17 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

  • Energy efficiency solution
  • Pack (number of units)1
  • Volume (dm3)0.332
  • Weight (g)89.00
Product characteristics
Control and state reporting module
For CX³ latching relays and 1 and 2-module contactors up to 25 A
  • Enables upstream busbar connection
  • Indicates the position of the contacts and enables remote control of its associated product
  • Equipped with DIP switches (on the side) allowing product configuration: selection of the main product (latching relay or contactor).
  • To fit on the left-hand side of the CX³ latching relays and contactors
  • Consumption: 0.372 W - 31 mA (12 V =)
  • Number of modules : 1
General characteristics
CX³ energy management system
  • Conform to IEC/EN 61131-2 (Programmable controllers)
  • CX³ energy management system enables to measure, control and visualize the state of rail mounting protection devices (MCBs, RCCBs, RCBOs, etc...) and head equipment (DMX³ and DPX³), locally ("Stand alone" ) or remotely
  • All the modules of the system are equipped with two specific communication ports: one at the backside (for communication rail) and one underneath (for communication patch cords)
  • Power supply with specific module Cat.No 4 149 45
  • Remote configuration possible with the help of the Energy Management Configuration Software, available for free download via E-Catalogue (giving also access to a 30-day trial version of Energy Management Software Cat.No 4 149 38/39)

ETIM for 414931 Modular devices for distribution board/surface mounting (EC001286)

Feature nameFunction (EF000030)
Feature valueRemote drive
Feature nameNumber of fault-signal switches (EF007613)
Feature value0
Feature nameNumber of contacts as change-over contact (EF008257)
Feature value0
Feature nameWidth in number of modular spacings (EF002950)
Feature value1
Feature nameSuitable for max. current main contact unit (EF008730)
Feature value6 A
Feature nameVoltage type (EF000187)
Feature valueAC
Feature nameNumber of contacts as normally closed contact (EF008255)
Feature value1
Feature nameNumber of contacts as normally open contact (EF008256)
Feature value0
Feature nameRated switch current (EF006706)
Feature value6 A
Feature nameWith auto test for earth leakage function (EF008727)
Feature valueNo
Feature nameRated voltage (EF000228)
Feature value250 V
Feature nameDevice fitting (EF007826)
Feature valueAuxiliary switch / relay
Feature nameSuitable for max. number of poles main contact unit (total) (EF008729)
Feature value4

DATASHEET - PDF

Title
Size
Type
414931 EN_414931.pdf
6 Mbytes
