LEGRANDSUPERVISION AND ENERGY MEASUREMENT414930 LEGRAND EMS CX3 MULTI-FUNCTION VIEWFINDER

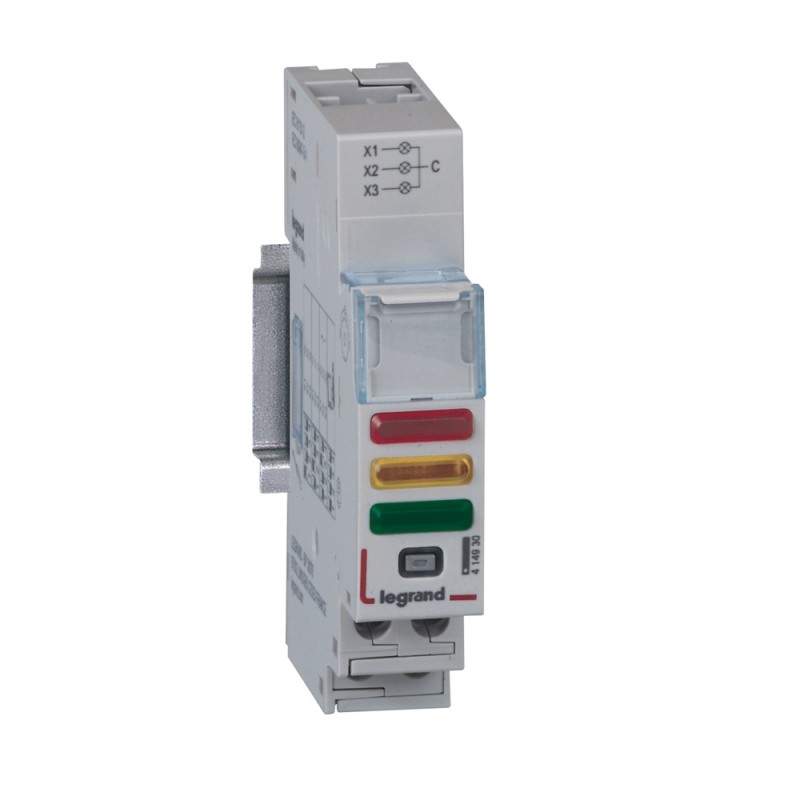

LEGRAND 414930 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

414930 LEGRAND EMS CX3 MULTI-FUNCTION VIEWFINDER

Code: 414930

Manufacturer: LEGRAND

Description:

EMS CX3 MULTI-FUNCTION VIEWFINDER
EMS CX3 VIEWER MULTI FUNCTION
State reporting modules CX³ - universal signalling - 3 LED lights - 1 module
EMS CX³ Universal Signaling Module

Categories:

  • Low-voltage industrial components > Indicator light complete
  • LEGRAND > SUPERVISION AND ENERGY MEASUREMENT

Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 98,83 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 15-17 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

  • Energy efficiency solution
  • Pack (number of units)1
  • Volume (dm3)0.219
  • Weight (g)62.00
Product characteristics
State reporting modules
Universal signalling module
  • Enables upstream busbar connection
  • Equipped with 3 LED lights: green, red and yellow
  • Indicates various type of information, according to selected configuration:
    • contacts position, plugged-in or drawn-out product, etc…
  • Equipped with DIP switches (on the side) allowing product configuration: selection of information type and of the LED behaviour
  • Compatible with symmetrical rail mounting protection devices or head equipment (DMX³ and DPX³)
  • Consumption: 0.377 W - 31.4 mA (12 V =)
  • Number of modules : 1
General characteristics
CX³ energy management system
  • Conform to IEC/EN 61131-2 (Programmable controllers)
  • CX³ energy management system enables to measure, control and visualize the state of rail mounting protection devices (MCBs, RCCBs, RCBOs, etc...) and head equipment (DMX³ and DPX³), locally ("Stand alone" ) or remotely
  • All the modules of the system are equipped with two specific communication ports: one at the backside (for communication rail) and one underneath (for communication patch cords)
  • Power supply with specific module Cat.No 4 149 45
  • Remote configuration possible with the help of the Energy Management Configuration Software, available for free download via E-Catalogue (giving also access to a 30-day trial version of Energy Management Software Cat.No 4 149 38/39)

ETIM for 414930 Low-voltage industrial controls and switchgear (EC000272)

Feature nameMaterial front ring (EF005972)
Feature valuePlastic
Feature nameType of lamp socket (EF008229)
Feature valueLED
Feature nameWith front ring (EF006014)
Feature valueNo
Feature nameDegree of protection (IP) (EF005474)
Feature valueIP40
Feature nameVoltage type (EF000187)
Feature valueDC
Feature nameHole diameter (EF000079)
Feature value14 mm
Feature nameWidth opening (EF004565)
Feature value14.276 mm
Feature nameType of electric connection (EF003961)
Feature valueOther
Feature nameType of lens (EF008343)
Feature valueHigh
Feature nameConstruction type lens (EF006253)
Feature valueRectangular
Feature nameDegree of protection (NEMA) (EF011959)
Feature valueOther
Feature nameNumber of indicator lights (EF001965)
Feature value3
Feature nameHeight opening (EF004778)
Feature value4.272 mm
Feature nameColour lens (EF000207)
Feature valueOther
Feature nameWith light source (EF005905)
Feature valueYes
Feature nameColour front ring (EF002429)
Feature valueOther
Feature nameRated operating voltage Ue (EF002418)
Feature value12 V

DATASHEET - PDF

Title
Size
Type
414930 EN_414930.pdf
6 Mbytes
