414927 LEGRAND EMS CX3 SIZE+BULLS AB 6300A
414927
LEGRAND
EMS CX3 SIZE+BULLS AB 6300A

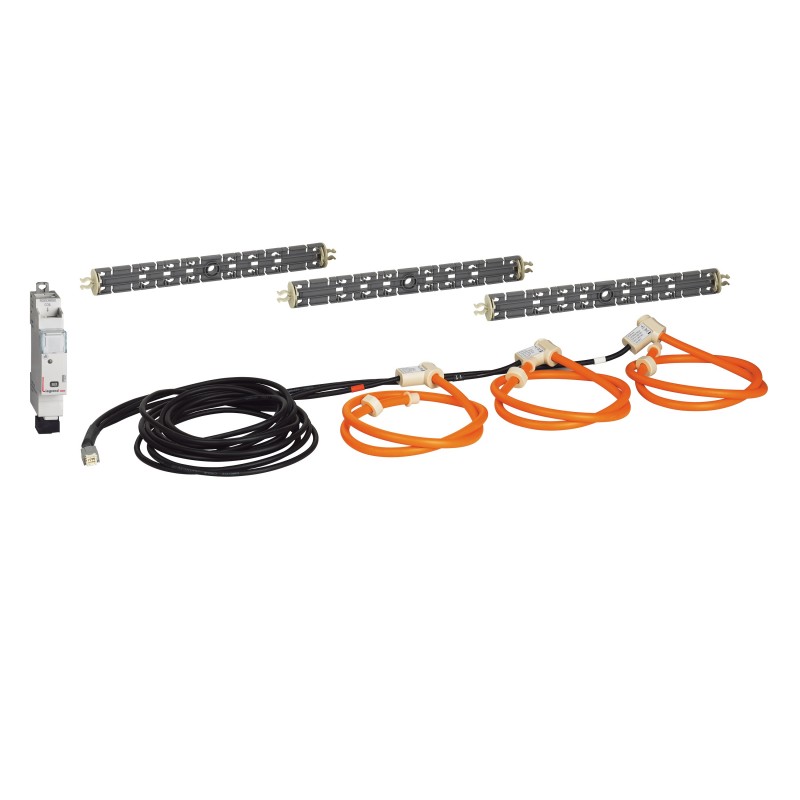

Measurement module for high currents + open toroidal EMS CX³ up to 6300A - 1 module
Measuring module for high currents + open toroidal EMS CX³ - 6300A
Installation bus systems > Energy management for bus system
SUPERVISION AND ENERGY MEASUREMENT
Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND
Related products
▲Best sellers
▲More info
▲Overview
Measurement module - Allows the measurement of currents, simple and compound voltages, active/reactive and apparent power in each phase and accumulated, cos ø and frequency, harmonic rate indications, etc. - Accuracy class: 0.5.
description
EMS CX³ (Energy Management System) is a complete system for managing energy in new or existing switchboards – the ideal solution for controlling the entire electrical installation.specifications
| KNX bus system | No |
|---|---|
| KNX-RF (Radio Frequency) Bus System | No |
| Radio frequency bus system | No |
| LON Bus System | No |
| Powernet Bus System | No |
| Other bus systems | Other |
| Bidirectional Radio Frequency | No |
| Model | Direct/Transformer |
| Connection Method | Direct |
| Reactive power | Yes |
| S0 Boost Interface | none |
| Rate change | No |
| Accuracy Class | 1 |
| Width | 17.8 mm |
| Height | 95.5 mm |
| Depth | 67.6 mm |
| Impact resistance | Other |
|---|---|
| Protection Class (IP) | IP40 |
| Operating Temperature | -25-70 °C |
| Storage temperature | -40-70 °C |
| Type of voltage | CC |
| Nominal Voltage | 10.8-13.2 V |
| Display of markings on the connection terminals | Yes |
| Halogen-free | Yes |
| Terminal capacity | 0.5-2.5 mm² |
| Connection type | Cable |
| Label Space/Print Area | Yes |
| USB port | No |
| Type of mounting | DIN Lane |
| Addressable | Yes |
| Contains battery and/or accumulator | No |
| Connected Object | No |
| Feature Name | Feature Value |
|---|---|
| Bus system KNX-RF (Radio Frequency) (EF008855) | No |
| Model (EF000010) | Direct/transformer |
| S0 impulse interface (EF001530) | None |
| Bus system LON (EF003831) | No |
| Bus system KNX (EF001499) | No |
| Accuracy class (EF001532) | 1 |
| Connection type (EF000124) | Direct |
| Reactive power (EF001531) | Yes |
| Radio frequency bidirectional (EF009466) | No |
| Bus system Powernet (EF001501) | No |
| Bus system radio frequency (EF001500) | No |
| Other bus systems (EF003811) | Other |
| Tariff switch (EF001529) | No |
