414923 LEGRAND EMS CX3 MODULE TO MEASURE FOR YOU
414923
LEGRAND
EMS CX3 MODULE TO MEASURE FOR YOU

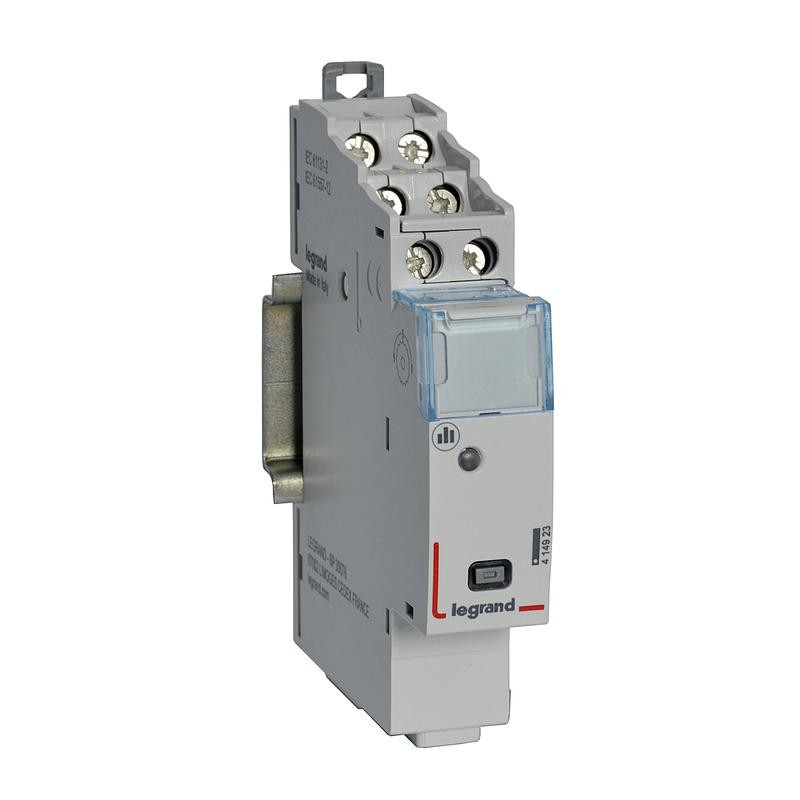

Measurement module CX³ - connection with CT - 5 A - 1 module
Three-phase EMS CX³ measurement module for IT/5A
Installation bus systems > Energy management for bus system
SUPERVISION AND ENERGY MEASUREMENT
Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND
Related products
▲Best sellers
▲More info
▲- Energy efficiency solution
- Pack (number of units)1
- Volume (dm3)0.332
- Weight (g)104.00
- For measuring current, voltage, active/reactive power and other values
- Conform to IEC/EN 61557-12
- Accuracy: class 0.5
- 5 A measuring module connected via current transformers (CT)
- Consumption: 0.391 W - 32.6 mA (12 V =)
- Number of modules : 1
- Conform to IEC/EN 61131-2 (Programmable controllers)
- CX³ energy management system enables to measure, control and visualize the state of rail mounting protection devices (MCBs, RCCBs, RCBOs, etc...) and head equipment (DMX³ and DPX³), locally ("Stand alone" ) or remotely
- All the modules of the system are equipped with two specific communication ports: one at the backside (for communication rail) and one underneath (for communication patch cords)
- Power supply with specific module Cat.No 4 149 45
- Remote configuration possible with the help of the Energy Management Configuration Software, available for free download via E-Catalogue (giving also access to a 30-day trial version of Energy Management Software Cat.No 4 149 38/39)
| Feature Name | Feature Value |
|---|---|
| Bus system KNX-RF (Radio Frequency) (EF008855) | No |
| Model (EF000010) | Energy meter |
| S0 impulse interface (EF001530) | None |
| Bus system LON (EF003831) | No |
| Bus system KNX (EF001499) | No |
| Accuracy class (EF001532) | 0.5 |
| Connection type (EF000124) | Convertible |
| Reactive power (EF001531) | Yes |
| Radio frequency bidirectional (EF009466) | No |
| Bus system Powernet (EF001501) | No |
| Bus system radio frequency (EF001500) | No |
| Other bus systems (EF003811) | Other |
| Tariff switch (EF001529) | No |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| 414923 EN_414923.pdf | 3 Mbytes |
 |
