414920 LEGRAND EMS CX3 AS TRI + BULLS 63A
414920
LEGRAND
EMS CX3 AS TRI + BULLS 63A

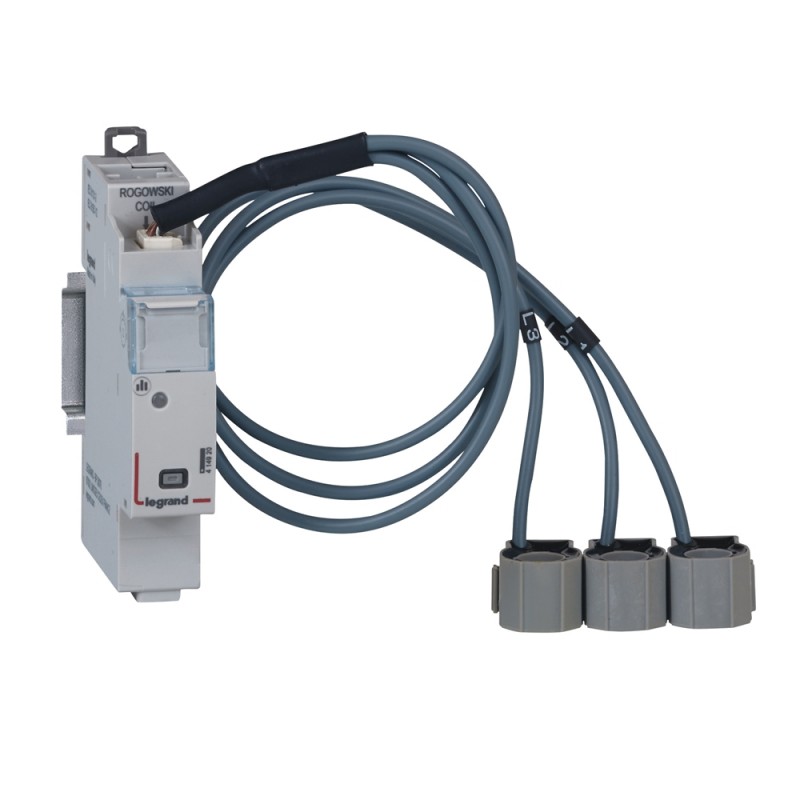

Measurement module CX³ - direct connection up to 63A - 3-phase + 3 coils - 1 module
Three-phase EMS CX³ measurement module up to 63A with closed toroidal
Installation bus systems > Energy management for bus system
SUPERVISION AND ENERGY MEASUREMENT
Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND
Related products
▲Best sellers
▲More info
▲- Energy efficiency solution
- Pack (number of units)1
- Volume (dm3)0.332
- Weight (g)136.00
- For measuring current, voltage, active/reactive power and other values
- Conform to IEC/EN 61557-12
- Accuracy: class 0.5
- Allow the passage of prong-type supply busbars (upper side)
- Supplied with closed Rogowski coils
- Enables upstream busbar connection
- 3-phase measuring module and closed
- Rogowski coil up to 63 A
- Consumption: 0.418 W - 34.8 mA (12 V =)
- Number of modules : 1
- Conform to IEC/EN 61131-2 (Programmable controllers)
- CX³ energy management system enables to measure, control and visualize the state of rail mounting protection devices (MCBs, RCCBs, RCBOs, etc...) and head equipment (DMX³ and DPX³), locally ("Stand alone" ) or remotely
- All the modules of the system are equipped with two specific communication ports: one at the backside (for communication rail) and one underneath (for communication patch cords)
- Power supply with specific module Cat.No 4 149 45
- Remote configuration possible with the help of the Energy Management Configuration Software, available for free download via E-Catalogue (giving also access to a 30-day trial version of Energy Management Software Cat.No 4 149 38/39)
| Feature Name | Feature Value |
|---|---|
| Bus system KNX-RF (Radio Frequency) (EF008855) | No |
| Model (EF000010) | Energy meter |
| S0 impulse interface (EF001530) | None |
| Bus system LON (EF003831) | No |
| Bus system KNX (EF001499) | No |
| Accuracy class (EF001532) | 0.5 |
| Connection type (EF000124) | Convertible |
| Reactive power (EF001531) | Yes |
| Radio frequency bidirectional (EF009466) | No |
| Bus system Powernet (EF001501) | No |
| Bus system radio frequency (EF001500) | No |
| Other bus systems (EF003811) | Other |
| Tariff switch (EF001529) | No |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| 414920 EN_414920.pdf | 4 Mbytes |
 |
