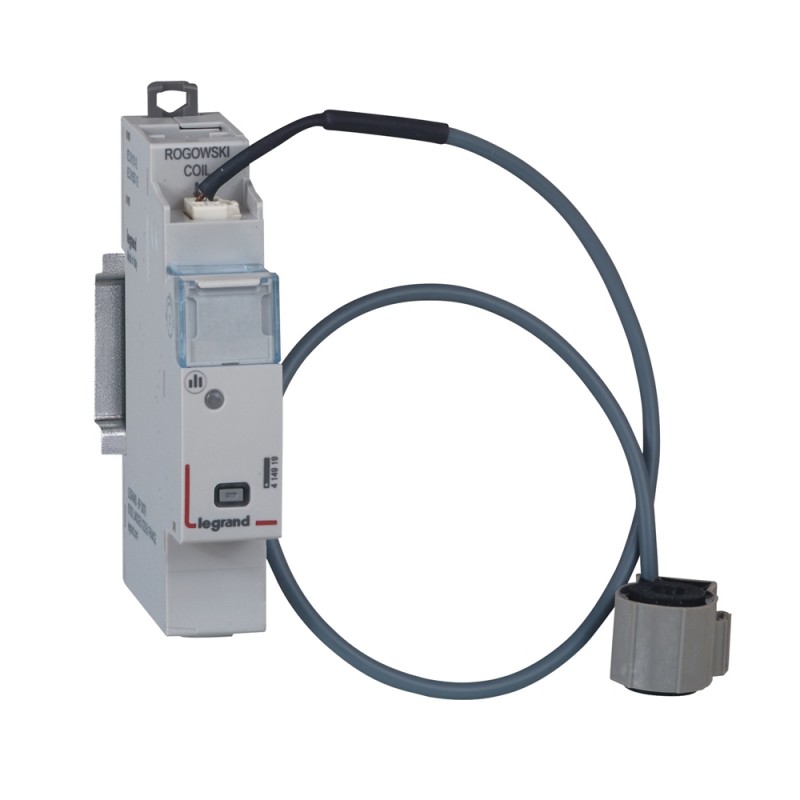

LEGRAND 414919 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

414919 LEGRAND EMS CX3 SIZE MONO + TORO 63A

Code: 414919

Manufacturer: LEGRAND

Description:

EMS CX3 SIZE MONO + TORO 63A
EMS CX3 AS MONO + BULL 63A
Measurement module CX³ - direct connection up to 63A - single-phase + coil - 1 module
Single-phase EMS CX³ measurement module up to 63A with closed toroidal

Categories:

  • Installation bus systems > Energy management for bus system
  • LEGRAND > SUPERVISION AND ENERGY MEASUREMENT

Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 271,47 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 15-17 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

  • Energy efficiency solution
  • Pack (number of units)1
  • Volume (dm3)0.332
  • Weight (g)112.00
Product characteristics
Measurement modules
  • For measuring current, voltage, active/reactive power and other values
  • Conform to IEC/EN 61557-12
  • Accuracy: class 0.5
Direct connection up to 63 A with closed Rogowski coils
  • Allow the passage of prong-type supply busbars (upper side)
  • Supplied with closed Rogowski coils
  • Enables upstream busbar connection
  • Single-phase measuring module and closed Rogowski coil up to 63 A
  • Consumption: 0.409 W - 34.1 mA (12 V =)
  • Number of modules : 1
General characteristics
CX³ energy management system
  • Conform to IEC/EN 61131-2 (Programmable controllers)
  • CX³ energy management system enables to measure, control and visualize the state of rail mounting protection devices (MCBs, RCCBs, RCBOs, etc...) and head equipment (DMX³ and DPX³), locally ("Stand alone" ) or remotely
  • All the modules of the system are equipped with two specific communication ports: one at the backside (for communication rail) and one underneath (for communication patch cords)
  • Power supply with specific module Cat.No 4 149 45
  • Remote configuration possible with the help of the Energy Management Configuration Software, available for free download via E-Catalogue (giving also access to a 30-day trial version of Energy Management Software Cat.No 4 149 38/39)

ETIM for 414919 Installation bus systems (EC001102)

Feature nameBus system KNX-RF (Radio Frequency) (EF008855)
Feature valueNo
Feature nameModel (EF000010)
Feature valueEnergy meter
Feature nameS0 impulse interface (EF001530)
Feature valueNone
Feature nameBus system LON (EF003831)
Feature valueNo
Feature nameBus system KNX (EF001499)
Feature valueNo
Feature nameAccuracy class (EF001532)
Feature value0.5
Feature nameConnection type (EF000124)
Feature valueConvertible
Feature nameReactive power (EF001531)
Feature valueYes
Feature nameRadio frequency bidirectional (EF009466)
Feature valueNo
Feature nameBus system Powernet (EF001501)
Feature valueNo
Feature nameBus system radio frequency (EF001500)
Feature valueNo
Feature nameOther bus systems (EF003811)
Feature valueOther
Feature nameTariff switch (EF001529)
Feature valueNo
