LEGRANDSUPERVISION AND ENERGY MEASUREMENT414916 LEGRAND ROGOWSKI EXTENSION KIT 3M

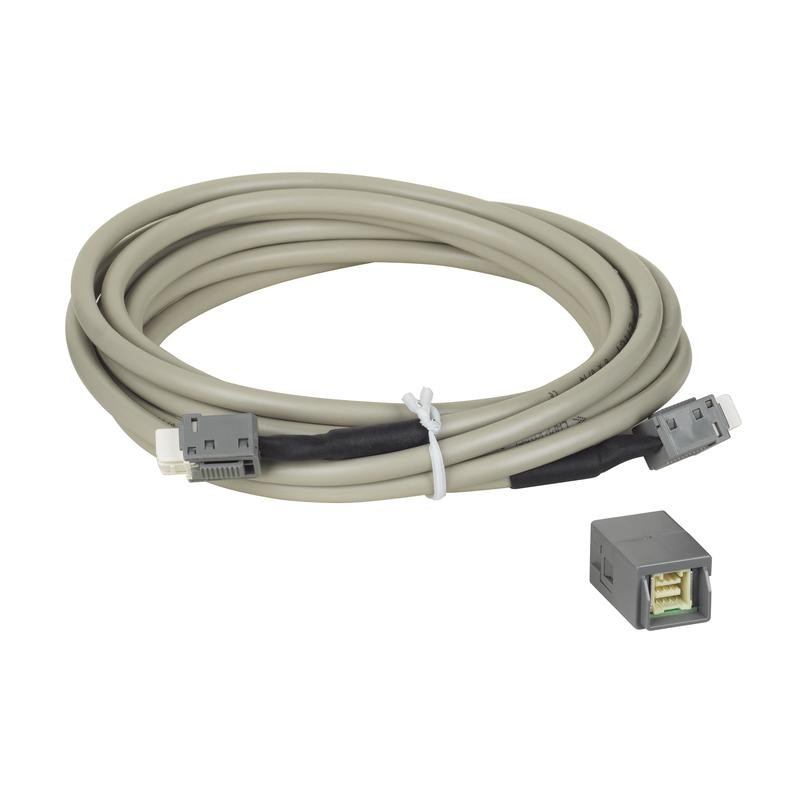

LEGRAND 414916 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

414916 LEGRAND ROGOWSKI EXTENSION KIT 3M

Code: 414916

Manufacturer: LEGRAND

Description:

ROGOWSKI EXTENSION KIT 3M
Extension kit for Rogowski coils for CX³ measurement module - length 3m
Extension kit for 3 meter flexible opening cores Rogowki

Categories:

  • Cables > Data and communication cable
  • LEGRAND > SUPERVISION AND ENERGY MEASUREMENT

Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 93,70 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 15-17 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

  • Energy efficiency solution
  • Pack (number of units)1
  • Volume (dm3)0.468
  • Weight (g)128.00
Product characteristics
Extension kits for Rogowski coils
  • Supplied with connectors
  • Lenght : 3 m
General characteristics
CX³ energy management system
  • Conform to IEC/EN 61131-2 (Programmable controllers)
  • CX³ energy management system enables to measure, control and visualize the state of rail mounting protection devices (MCBs, RCCBs, RCBOs, etc...) and head equipment (DMX³ and DPX³), locally ("Stand alone" ) or remotely
  • All the modules of the system are equipped with two specific communication ports: one at the backside (for communication rail) and one underneath (for communication patch cords)
  • Power supply with specific module Cat.No 4 149 45
  • Remote configuration possible with the help of the Energy Management Configuration Software, available for free download via E-Catalogue (giving also access to a 30-day trial version of Energy Management Software Cat.No 4 149 38/39)

ETIM for 414916 Cable (EC003249)

Feature nameProtective sheath (EF001691)
Feature valueOther
Feature nameHalogen free according to EN IEC 60754-2 (EF003792)
Feature valueYes
Feature nameCable height approx. (EF003797)
Feature value5 mm
Feature nameReaction-to-fire according to EN 13501-6: Class (EF011577)
Feature valueEca
Feature nameWeight (EF000167)
Feature value42
Feature nameCable width approx. (EF003796)
Feature value5 mm
Feature nameDuplex (EF023003)
Feature valueNo
Feature nameCable type (EF000081)
Feature valueOther
Feature nameConductor surface (EF010804)
Feature valueBare
Feature nameMaterial armouring (EF013440)
Feature valueOther
Feature nameNumber of sheath layers (EF016997)
Feature value1
Feature nameNumber of stranding elements (EF001688)
Feature value7
Feature nameWith rip cord (EF017088)
Feature valueNo
Feature nameSuitable for use as security alarm cable (EF017089)
Feature valueNo
Feature nameMin. permitted bending radius, stationary application/permanent installation (EF011803)
Feature value30 mm
Feature nameMin. permitted bending radius, moving application/free movement (EF011802)
Feature value75 mm
Feature nameWith rodent protection (EF007960)
Feature valueNo
Feature nameSpecification material outer sheath (EF011806)
Feature valueOther
Feature nameSpecification core insulation (EF011805)
Feature valueOther
Feature nameApproved type of underground installation (EF015176)
Feature valueOther
Feature nameColour outer sheath (EF001618)
Feature valueGrey
Feature nameRadial water blocking cable (EF011012)
Feature valueNo
Feature nameLongitudinal water blocking cable (EF011011)
Feature valueNo
Feature nameStranding element (EF001617)
Feature valueNo
Feature nameNumber of cores (EF001792)
Feature value6
Feature nameCore identification (EF000067)
Feature valueColour
Feature nameMaterial core insulation (EF000061)
Feature valueRubber
Feature nameNominal cross section conductor (EF000060)
Feature value0.14 mm²
Feature nameHalogen free according to EN IEC 60754-1 (EF016498)
Feature valueYes
Feature nameConductor material (EF001622)
Feature valueCopper
Feature nameStranding (EF003802)
Feature valueBundle
Feature nameDiameter conductor (EF001621)
Feature value0.422 mm
Feature nameScreen over stranding (EF001624)
Feature valueBraiding
Feature nameSuitable for underground installation (EF003689)
Feature valueNo
Feature nameOuter diameter approx. (EF003921)
Feature value5 mm
Feature nameScreen over stranding element (EF001623)
Feature valueBraiding
Feature nameDrain wire (EF001029)
Feature valueNo
Feature nameMaterial outer sheath (EF001625)
Feature valueRubber
Feature nameFlame retardant according to IEC 60332-1-2 (EF016492)
Feature valueYes
Feature nameAWG size (EF011789)
Feature valueOther
Feature nameArmouring/reinforcement (EF001683)
Feature valueNone
Feature namePermitted cable outer temperature after assembling without vibration (EF001686)
Feature value-40 °C
Feature namePermitted cable outer temperature during assembling/handling (EF001685)
Feature value-5 °C
Feature nameCompatible with Grade3TV according to XP-C 90-483 (EFFR0002)
Feature valueNo
Feature nameCore identification according to HD 308 S2 (EF013766)
Feature valueNo
Feature nameSuitable as telephone cable (EF013768)
Feature valueNo
Feature nameCompatible with Grade2TV according to XP-C 90-483 (EFFR0001)
Feature valueNo
Feature nameSuitable as computer data cable (EF013769)
Feature valueNo
Feature nameSuitable as signalling cable (EF013770)
Feature valueYes
Feature nameCable geometry (EF013532)
Feature valueRound
Feature nameConductor category (EF001632)
Feature valueClass 5 = flexible
