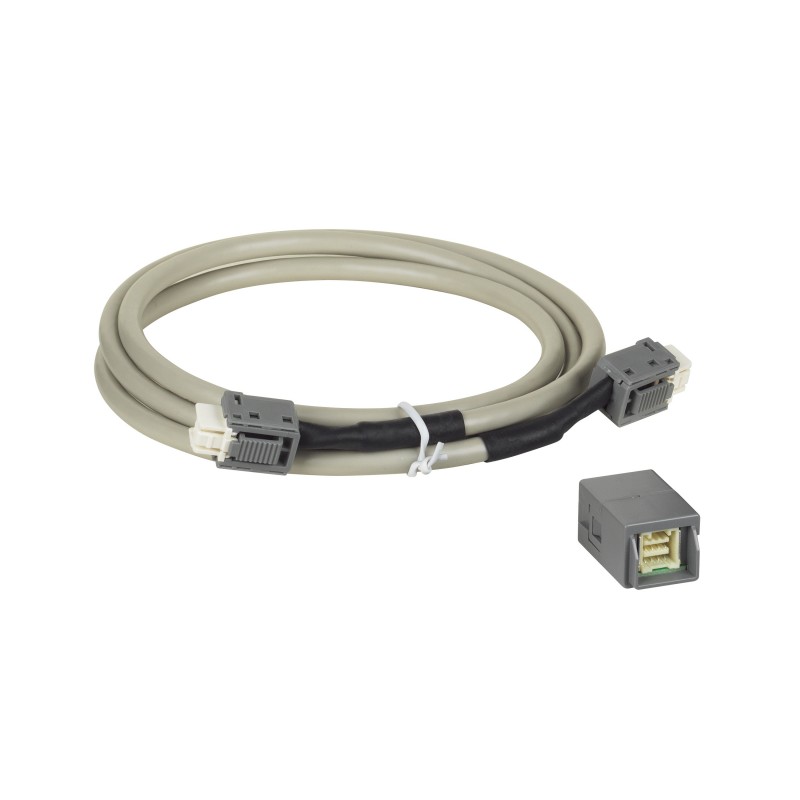

414915 LEGRAND ROGOWSKI EXTENSION KIT 1M
414915
LEGRAND
ROGOWSKI EXTENSION KIT 1M
Extension kit for Rogowski coils for CX³ measurement module - length 1m
Extension kit for flexible cores with 1 meter opening Rogowki
Cables > Data and communication cable
SUPERVISION AND ENERGY MEASUREMENT
Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND
Related products
▲Best sellers
▲More info
▲- Energy efficiency solution
- Pack (number of units)1
- Volume (dm3)0.252
- Weight (g)50.00
- Supplied with connectors
- Lenght : 1 m
- Conform to IEC/EN 61131-2 (Programmable controllers)
- CX³ energy management system enables to measure, control and visualize the state of rail mounting protection devices (MCBs, RCCBs, RCBOs, etc...) and head equipment (DMX³ and DPX³), locally ("Stand alone" ) or remotely
- All the modules of the system are equipped with two specific communication ports: one at the backside (for communication rail) and one underneath (for communication patch cords)
- Power supply with specific module Cat.No 4 149 45
- Remote configuration possible with the help of the Energy Management Configuration Software, available for free download via E-Catalogue (giving also access to a 30-day trial version of Energy Management Software Cat.No 4 149 38/39)
| Feature Name | Feature Value |
|---|---|
| Protective sheath (EF001691) | Other |
| Halogen free according to EN IEC 60754-2 (EF003792) | Yes |
| Cable height approx. (EF003797) | 5 mm |
| Reaction-to-fire according to EN 13501-6: Class (EF011577) | Eca |
| Weight (EF000167) | 42 |
| Cable width approx. (EF003796) | 5 mm |
| Duplex (EF023003) | No |
| Cable type (EF000081) | Other |
| Conductor surface (EF010804) | Bare |
| Material armouring (EF013440) | Other |
| Number of sheath layers (EF016997) | 1 |
| Number of stranding elements (EF001688) | 7 |
| With rip cord (EF017088) | No |
| Suitable for use as security alarm cable (EF017089) | No |
| Min. permitted bending radius, stationary application/permanent installation (EF011803) | 30 mm |
| Min. permitted bending radius, moving application/free movement (EF011802) | 75 mm |
| With rodent protection (EF007960) | No |
| Specification material outer sheath (EF011806) | Other |
| Specification core insulation (EF011805) | Other |
| Approved type of underground installation (EF015176) | Other |
| Colour outer sheath (EF001618) | Grey |
| Radial water blocking cable (EF011012) | No |
| Longitudinal water blocking cable (EF011011) | No |
| Stranding element (EF001617) | No |
| Number of cores (EF001792) | 6 |
| Core identification (EF000067) | Colour |
| Material core insulation (EF000061) | Rubber |
| Nominal cross section conductor (EF000060) | 0.14 mm² |
| Halogen free according to EN IEC 60754-1 (EF016498) | Yes |
| Conductor material (EF001622) | Copper |
| Stranding (EF003802) | Bundle |
| Diameter conductor (EF001621) | 0.422 mm |
| Screen over stranding (EF001624) | Braiding |
| Suitable for underground installation (EF003689) | No |
| Outer diameter approx. (EF003921) | 5 mm |
| Screen over stranding element (EF001623) | Braiding |
| Drain wire (EF001029) | No |
| Material outer sheath (EF001625) | Rubber |
| Flame retardant according to IEC 60332-1-2 (EF016492) | Yes |
| AWG size (EF011789) | Other |
| Armouring/reinforcement (EF001683) | None |
| Permitted cable outer temperature after assembling without vibration (EF001686) | -40 °C |
| Permitted cable outer temperature during assembling/handling (EF001685) | -5 °C |
| Compatible with Grade3TV according to XP-C 90-483 (EFFR0002) | No |
| Core identification according to HD 308 S2 (EF013766) | No |
| Suitable as telephone cable (EF013768) | No |
| Compatible with Grade2TV according to XP-C 90-483 (EFFR0001) | No |
| Suitable as computer data cable (EF013769) | No |
| Suitable as signalling cable (EF013770) | Yes |
| Cable geometry (EF013532) | Round |
| Conductor category (EF001632) | Class 5 = flexible |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| 414915 EN_414915.pdf | 5 Mbytes |
 |
