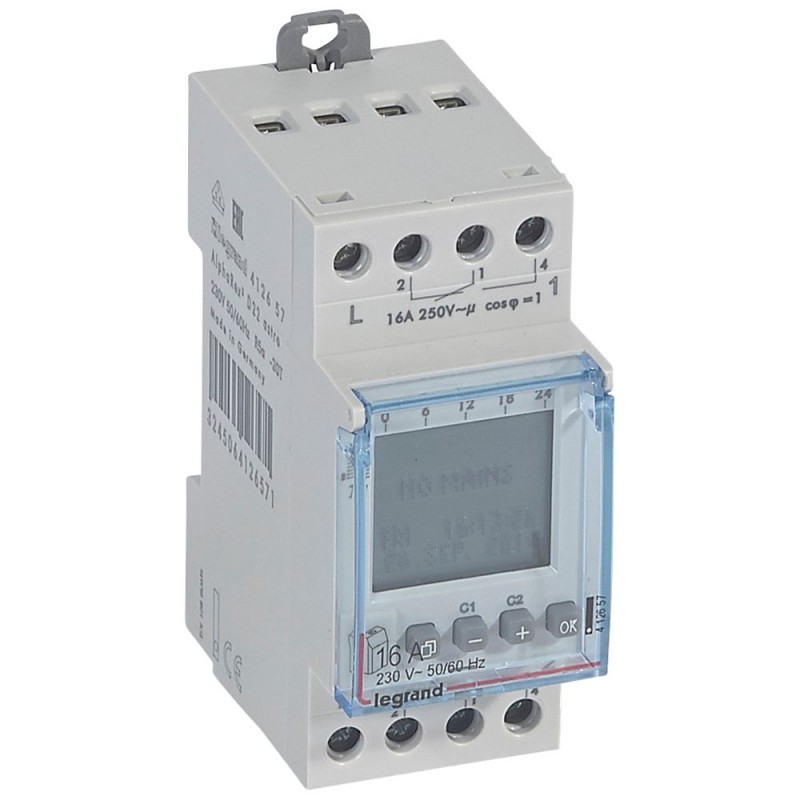

412657 LEGRAND INT. ASTRONOMICAL 2 OUTPUT 250V
412657
LEGRAND
INT. ASTRONOMICAL 2 OUTPUT 250V
AlphaRex³ Astro Time Switch 230V AC 2 x 16A 24 Hour 7 Day 2 Channel
Astronomical programming time switch - 2 outputs
Devices for distribution board-/surface mounting > Digital time switch for distribution board
TIME SWITCHES
Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND
Related products
▲Best sellers
▲More info
▲
Conform to EN 60730-1 and EN 60730-2-7 Supply voltage: 230V~ 50/60 Hz Mount on DIN rail EN 60715 4 Text based programming. Programmable in 15 languages Programme directly on time switch keypad or remotely via a PC with Legrand AlphaSoft software, USB adaptor and data key Data key enables programmes to be transferred from one unit to another and for programmes to be stored EEPROM memory keeps programmes stored indefinitely Pin code facility to protect programmes from unauthorised changes Time switch accuracy: n0.1 second per day Zero-crossing switching Automatic summer/winter time correction 5 years running reserve Back lit graphic display and keypad Operating temperature: -20°C to +55°C Protection: IP20 Switching increment: 1 minute Shortest switching time: 1 minute AlphaRex3 Astro light control Weekly time switches 24h / 7 day programme time Particularly suited to outdoor lighting and street signage applications Enables the daily astronomical calculation of sunrise and sunset by inputting local position or coordinates (no need to install a light sensor) Lights are switched ON and OFF according to sunrise and sunset times, and can be offset by up to n120 minutes in relation to sunrise and sunset times To save energy, it is also possible to programme an ON and OFF time at night Time saving programming due to pre-set groups of days: Mon-Sun, Mon-Fri, or Sat-Sun and individual selection of days Programmes are shown as a weekly matrix on the graphic display
| Mounting method | DIN rail |
|---|---|
| Number of channels | 2 |
| Supply voltage | 230-230 V |
| Voltage type (supply voltage) | AC |
| Frequency supply voltage | 50-60 Hz |
| Autonomy in years | 5 |
| Accuracy per day | 0.1 s |
| Text guidance in display | Yes |
| External programming | Yes |
| With memory card | No |
| 60 min program | No |
| 24 h program | Yes |
| Weekly program | Yes |
| Annual program | Yes |
| Holiday program | Yes |
| Impulse program | No |
| Cycle program | Yes |
| Astro program | Yes |
| Random program | Yes |
| Hour meter | Yes |
| Mains synchronous | Yes |
| Quartz controlled | Yes |
| Radio-controlled | No |
| Radio-controlled (DCF77) | No |
| GPS (global positioning system) | No |
|---|---|
| Contact type | Change-over contact (NO/NC) |
| Shortest switching time channel 1 | 0.01666 s |
| Number of memory locations | 56 |
| Automatic switching summer/winter time | Yes |
| Suitable for manual operation | Yes |
| External push button input | No |
| Switching preselection | Yes |
| Nominal switching current at 250 V AC | 16 A |
| Potential free switch contact | Yes |
| Degree of protection (IP) | IP20 |
| Width in number of modular spacings | 2 |
| Width | 35.6 mm |
| Height | 83 mm |
| Depth | 60 mm |
| Contains Batteries and/or Accumulator | Yes |
| IEC code (Pack1) | CR2477 |
| Battery ou Accumulator (Pack1) | Battery (not rechargeable) |
| Element Composition (Pack1) | Lithium (battery or accumulator) |
| Number of Pack 1 | 1 |
| Number of Single Element (Pack1) | 1 |
| Single Element weight (Pack1) | 11 g |
| Pack1 Location | Product includes a battery |
| Regulation Type (Pack1) | P : Portable (Standard format) |
| Feature Name | Feature Value |
|---|---|
| Height (EF000040) | 83 mm |
| Degree of protection (IP) (EF005474) | IP20 |
| Supply voltage (EF004127) | 230 V |
| Radio-controlled (DCF77) (EF003850) | No |
| Autonomy in years (EF004720) | 5 |
| Frequency supply voltage (EF004687) | 50 Hz |
| Mounting method (EF000003) | DIN rail |
| Accuracy per day (EF006325) | 0.1 s |
| External push button input (EF007754) | No |
| External programming (EF003846) | Yes |
| Potential free switch contact (EF003626) | Yes |
| Automatic switching summer/winter time (EF002977) | Yes |
| Quartz controlled (EF002974) | Yes |
| Number of channels (EF000259) | 2 |
| Suitable for manual operation (EF002978) | Yes |
| Switching preselection (EF002979) | Yes |
| Annual program (EF001185) | Yes |
| Weekly program (EF001184) | Yes |
| With memory card (EF009768) | No |
| Voltage type (supply voltage) (EF002991) | AC |
| Width in number of modular spacings (EF002950) | 2 |
| GPS (global positioning system) (EF002753) | No |
| Mains synchronous (EF002973) | Yes |
| Hour meter (EF004533) | Yes |
| Impulse program (EF002970) | No |
| Contact type (EF001587) | Change-over contact (NO/NC) |
| Cycle program (EF002971) | Yes |
| Nominal switching current at 250 V AC (EF005126) | 16 A |
| Text guidance in display (EF005341) | Yes |
| 24 h program (EF002965) | Yes |
| Depth (EF000049) | 60 mm |
| Number of memory locations (EF000203) | 56 |
| Astro program (EF000224) | Yes |
| 60 min program (EF002964) | No |
| Random program (EF002969) | Yes |
| Radio-controlled (EF000888) | No |
| Width (EF000008) | 35.6 mm |
| Holiday program (EF002968) | Yes |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| 412657 EN_412657.pdf | 135 Kbytes |
 |
