LEGRANDTIME SWITCHES412641 LEGRAND INTER MULTI-PROGRAM SCHEDULE

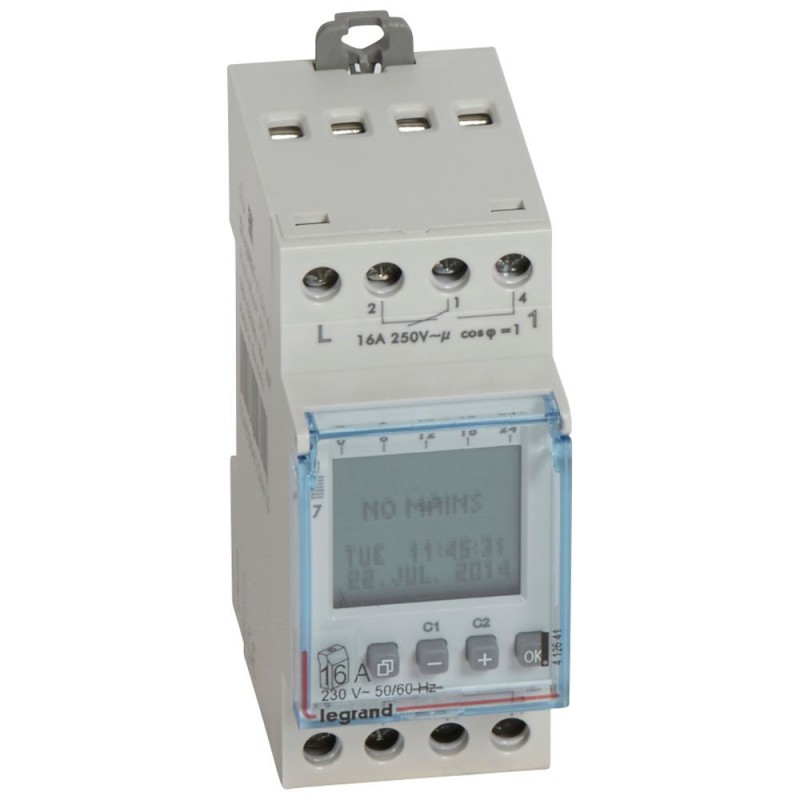

LEGRAND 412641 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

412641 LEGRAND INTER MULTI-PROGRAM SCHEDULE

Code: 412641

Manufacturer: LEGRAND

Description:

INTER MULTI-PROGRAM SCHEDULE
INTER-TIME MULTI-PROGRAM
AlphaRex³ Time Switch 230V AC 2 x 16A 24 Hour 7 Day 2 Channel
Digital programmable time switch - 2 outputs 16A - 250V~

Categories:

  • Devices for distribution board-/surface mounting > Digital time switch for distribution board
  • LEGRAND > TIME SWITCHES

Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 184,70 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 5 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

Mounting methodDIN rail
Number of channels2
Supply voltage230-230 V
Voltage type (supply voltage)AC
Frequency supply voltage50-60 Hz
Autonomy in years5
Accuracy per day0.1 s
Text guidance in displayYes
External programmingYes
With memory cardNo
60 min programNo
24 h programYes
Weekly programYes
Annual programYes
Holiday programYes
Impulse programNo
Cycle programYes
Astro programNo
Random programYes
Hour meterYes
Mains synchronousYes
Quartz controlledYes
Radio-controlledNo
Radio-controlled (DCF77)No
GPS (global positioning system)No
Contact typeChange-over contact (NO/NC)
Shortest switching time channel 10.01666 s
Number of memory locations56
Automatic switching summer/winter timeYes
Suitable for manual operationYes
External push button inputNo
Switching preselectionYes
Nominal switching current at 250 V AC16 A
Potential free switch contactYes
Degree of protection (IP)IP20
Width in number of modular spacings2
Width35.6 mm
Height83 mm
Depth60 mm
Operating / setting temperature-20-55 °C
Storage temperature-20-60 °C
Electric supplying directionOther
Terminal marking indicationYes
ColourGrey
RAL-number7035
Halogen freeYes
Connection typeScrewed terminal , Cable
Terminals capacity1.5-4 mm²
Label space/information surfaceNo
Contains Batteries and/or AccumulatorYes
IEC code (Pack1)CR2477
Battery ou Accumulator (Pack1)Battery (not rechargeable)
Element Composition (Pack1)Lithium (battery or accumulator)
Number of Pack 11
Number of Single Element (Pack1)1
Single Element weight (Pack1)11 g
Pack1 LocationProduct includes a battery
Regulation Type (Pack1)P : Portable (Standard format)
Connected objectNo
Application store for downloadNot applicable

ETIM for 412641 Modular devices for distribution board/surface mounting (EC002305)

Feature nameHeight (EF000040)
Feature value83 mm
Feature nameDegree of protection (IP) (EF005474)
Feature valueIP20
Feature nameSupply voltage (EF004127)
Feature value230 V
Feature nameRadio-controlled (DCF77) (EF003850)
Feature valueNo
Feature nameAutonomy in years (EF004720)
Feature value5
Feature nameFrequency supply voltage (EF004687)
Feature value50 Hz
Feature nameMounting method (EF000003)
Feature valueDIN rail
Feature nameAccuracy per day (EF006325)
Feature value0.1 s
Feature nameExternal push button input (EF007754)
Feature valueNo
Feature nameExternal programming (EF003846)
Feature valueYes
Feature namePotential free switch contact (EF003626)
Feature valueYes
Feature nameAutomatic switching summer/winter time (EF002977)
Feature valueYes
Feature nameQuartz controlled (EF002974)
Feature valueYes
Feature nameNumber of channels (EF000259)
Feature value2
Feature nameSuitable for manual operation (EF002978)
Feature valueYes
Feature nameSwitching preselection (EF002979)
Feature valueYes
Feature nameAnnual program (EF001185)
Feature valueYes
Feature nameWeekly program (EF001184)
Feature valueYes
Feature nameWith memory card (EF009768)
Feature valueNo
Feature nameVoltage type (supply voltage) (EF002991)
Feature valueAC
Feature nameWidth in number of modular spacings (EF002950)
Feature value2
Feature nameGPS (global positioning system) (EF002753)
Feature valueNo
Feature nameMains synchronous (EF002973)
Feature valueYes
Feature nameHour meter (EF004533)
Feature valueYes
Feature nameImpulse program (EF002970)
Feature valueNo
Feature nameContact type (EF001587)
Feature valueChange-over contact (NO/NC)
Feature nameCycle program (EF002971)
Feature valueYes
Feature nameNominal switching current at 250 V AC (EF005126)
Feature value16 A
Feature nameText guidance in display (EF005341)
Feature valueYes
Feature name24 h program (EF002965)
Feature valueYes
Feature nameDepth (EF000049)
Feature value60 mm
Feature nameNumber of memory locations (EF000203)
Feature value56
Feature nameAstro program (EF000224)
Feature valueNo
Feature name60 min program (EF002964)
Feature valueNo
Feature nameRandom program (EF002969)
Feature valueYes
Feature nameRadio-controlled (EF000888)
Feature valueNo
Feature nameWidth (EF000008)
Feature value35.6 mm
Feature nameHoliday program (EF002968)
Feature valueYes

DATASHEET - PDF

Title
Size
Type
412641 EN_412641.pdf
134 Kbytes
