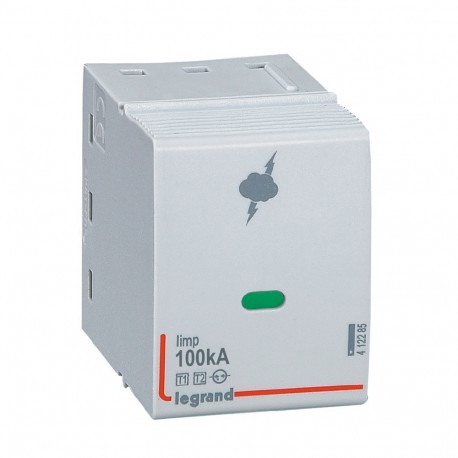

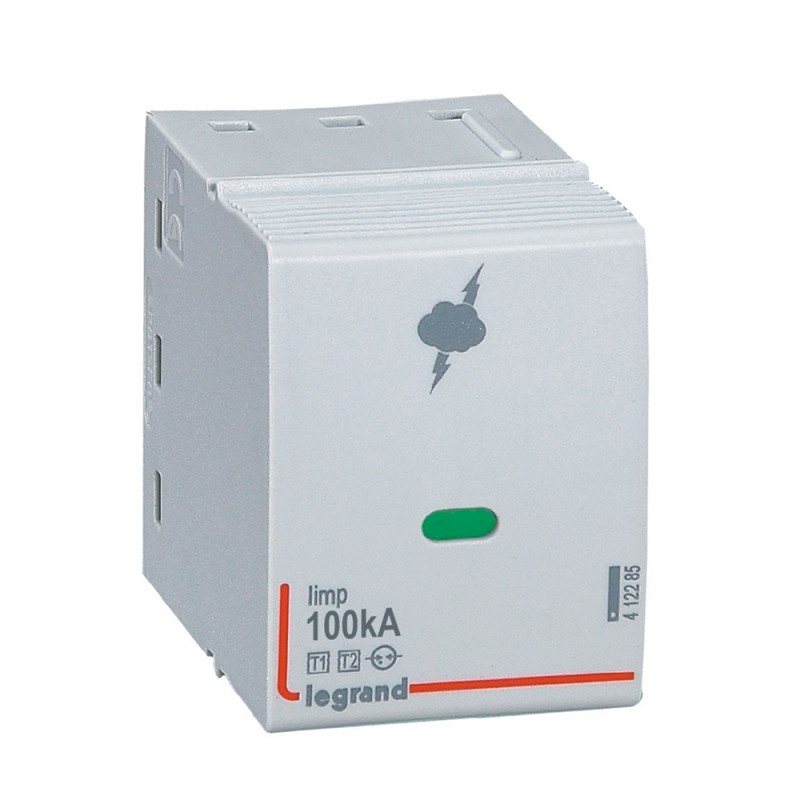

412285 LEGRAND MODULE T1 25KA N-PE
412285
LEGRAND
MODULE T1 25KA N-PE
Plug-in replacement modules for SPD - T1+T2 - 25 kA/pole - N-PE modules
Replacement cartridges for T1/25kA surge limiters (N-PE cartridge)
Earthing, lightning and surge protection > Surge protection device for power supply systems
MOTOR CIRCUIT BREAKERS
Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND
Related products
▲Best sellers
▲More info
▲- Pack (number of units)1
- Volume (dm3)0.369
- Weight (g)229.00
- N-PE module for SPDs T1+T2 - 25 kA Cat.Nos 4 122 81/83 and 0 030 23
- Protection against transient overvoltagess for 230/400 V~ power networks (50/60 Hz).
- SPDs compliant with EN/IEC 61643-11 standards
- Recommended for main distribution boards
- Class I+II (T1+T2) : SPDs tested and specified according to both T1 and T2 test classes
| Feature Name | Feature Value |
|---|---|
| System configuration TN-C-S (EF009933) | Yes |
| Degree of protection (IP) (EF005474) | IP20 |
| Nominal voltage AC (EF004220) | 400 V |
| System configuration TN-S (EF009930) | No |
| Construction size (EF002566) | 2 modular spacing |
| System configuration other (EF009932) | Yes |
| System configuration TT (EF009931) | No |
| Signalling at the device (EF004241) | Optic |
| Voltage protection level (EF003525) | 2.5 kV |
| System configuration IT (EF009927) | No |
| System configuration TN-C (EF009929) | Yes |
| System configuration TN (EF009928) | Yes |
| Max. continuous voltage AC (EF004198) | 350 V |
| Voltage protection level N-PE (EF008796) | 1.5 kV |
| Integrated backup fuse (EF008797) | No |
| Voltage protection level L-N (EF004236) | 1.5 kV |
| Nominal discharge surge current (8/20) (EF004214) | 25 kA |
| Category type 2 (EF004230) | No |
| With remote signalling contact (EF000422) | No |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| 412285 EN_412285.pdf | 131 Kbytes |
 |
