LEGRAND412175 LEGRAND 3P CONNECTED ENERGY METER
LEGRAND 412175 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

412175 LEGRAND 3P CONNECTED ENERGY METER

Code: 412175

Manufacturer: LEGRAND

Description:

3P CONNECTED ENERGY METER
Connected three-phase energy meter w/Netatmo + 3 closed coils

Categories:

  • Installation bus systems > Energy management for bus system
  • LEGRAND

Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND

  • More Info
  • ETIM
  • Reviews
Guarantee, repair and return.

Unit Price: 407,78 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 5 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

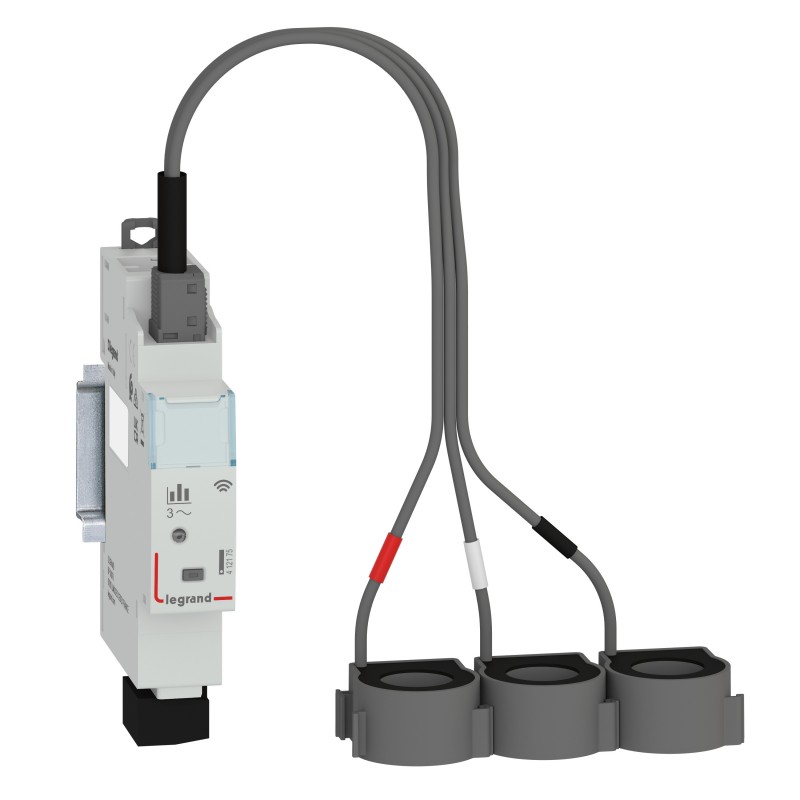

Three-phase energy meter connected EMDX3 with Netatmo - supplied with 3 closed current transformers up to 125A - Width: 1 DIN module. Zigbee communication protocol. Requires pre-installation of a Gateway module or connected starter pack.
KNX bus systemNo
KNX-RF bus system (radio frequency)No
Radio frequency bus systemNo
LON Bus SystemNo
Powernet Bus SystemNo
Other bus systemsnone
Bidirectional Radio FrequencyYes
ModelEnergy Meter
Connection MethodDirect
Reactive powerNo
PTB approvedNo
S0 Boost Interfacenone
Rate changeNo
Accuracy Class1
Width17.7 mm
Height101.6 mm
Depth67.2 mm
Impact resistanceIK04
Protection Class (IP)IP20
Operating Temperature-5-45°C
Storage temperature-40-70 °C
Type of voltageAC
Nominal Voltage110-500 V
frequency50-60 Hz
Display of markings on the connection terminalsYes
Halogen-freeYes
Terminal capacity0.75-2.5 mm²
Connection typeCable
Label Space/Print AreaYes
USB portNo
Type of mountingDIN Lane
AddressableNo
Contains battery and/or accumulatorNo
Connected ObjectYes
Method of operationZigbee
App download platformGoogle Play Store, App Store
Programming mediumSmartphone apps
ProgrammableYes
Connection Protocol InteroperabilityNo
Possibility of connection via Internet boxNo
Supported voice assistantsAmazon Alexa, Apple Siri, Google Assistant
Product usage functionEnergy metering and metering
App NameHome + Control

ETIM for 412175 Installation bus systems (EC001102)

Feature nameBus system KNX-RF (Radio Frequency) (EF008855)
Feature valueNo
Feature nameModel (EF000010)
Feature valueEnergy meter
Feature nameS0 impulse interface (EF001530)
Feature valueNone
Feature nameBus system LON (EF003831)
Feature valueNo
Feature nameBus system KNX (EF001499)
Feature valueNo
Feature nameAccuracy class (EF001532)
Feature value1
Feature nameConnection type (EF000124)
Feature valueDirect
Feature nameReactive power (EF001531)
Feature valueNo
Feature nameRadio frequency bidirectional (EF009466)
Feature valueYes
Feature nameBus system Powernet (EF001501)
Feature valueNo
Feature nameBus system radio frequency (EF001500)
Feature valueNo
Feature nameApproved according to PTB (EF001533)
Feature valueNo
Feature nameOther bus systems (EF003811)
Feature valueNone
Feature nameTariff switch (EF001529)
Feature valueNo
