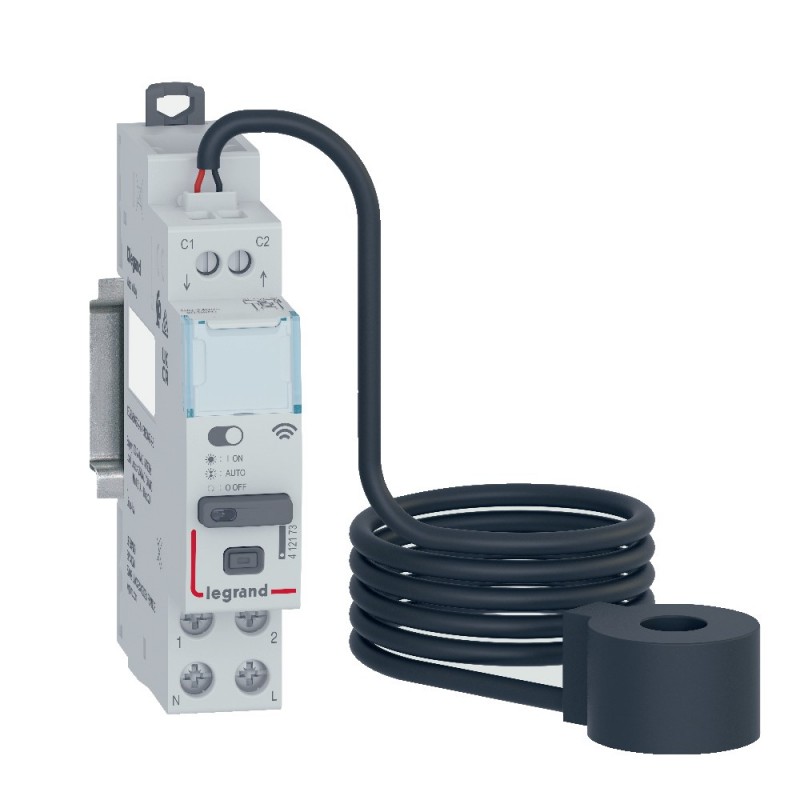

412173 LEGRAND CONNECTED DRY CONTACT
412173
LEGRAND
CONNECTED DRY CONTACT
Connected dry contact for electrical panel
PLC's > Fieldbus, decentr. periphery - digital I/O module
Home > LEGRAND
Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND
Best sellers
▲More info
▲Overview
Connected dry contact that allows single-phase measurement up to 80A and control (ON/OFF) of any device equipped with a 12-30 V DC direct current control terminal block (EV charger, etc.).
description
Monostable dry contact connected. It is installed in the electrical panel. Width: 1 DIN module. Single-phase current measurement up to 80A, using a closed toroidal. Zigbee communication protocol. Requires pre-installation of a Gateway module or connected starter pack.specifications
| Supply voltage 50 Hz AC | 100-240 V |
|---|---|
| Supply voltage 60 Hz AC | 100-240 V |
| Type of supply voltage | AC |
| Number of digital inputs | 1 |
| Number of digital outputs | 1 |
| Configurable digital inputs | No |
| Configurable digital outputs | No |
| Input Current at Signal 1 | 0.5 mA |
| Permissible input voltage | 0-240 V |
| Current Type (Input) | AC |
| Digital Output Type | Relay |
| Permissible Output Voltage | 5-250 V |
| Output Current Type | AC/DC |
| Short circuit protection, outputs available | No |
| Number of HW Industrial Ethernet Interfaces | 0 |
| Number of PROFINET interfaces | 0 |
| Number of HW RS232 interfaces | 0 |
| Number of HW RS422 interfaces | 0 |
| Number of HW RS485 interfaces | 0 |
| Number of TTY serial HW interfaces | 0 |
| Number of HW interfaces in parallel | 0 |
| Number of Wireless HW Interfaces | 1 |
| Number of HW USB Interfaces | 0 |
| Number of HW Interfaces Other | 0 |
| With optical interface | No |
| Supports TCP/IP protocol | No |
| Supports PROFIBUS protocol | No |
| Supports CAN protocol | No |
| Supports the INTERBUS protocol | No |
| Supports ASI protocol | No |
| Supports KNX protocol | No |
| Supports Modbus protocol | No |
| Supports data highway protocol | No |
| Supports DeviceNet protocol | No |
| Supports SUCONET protocol | No |
| Supports LON protocol | No |
| Supports PROFINET IO protocol | No |
|---|---|
| Supports PROFINET CBA protocol | No |
| Supports SERCOS protocol | No |
| Supports Foundation Fieldbus protocol | No |
| Supports Ethernet/IP protocol | No |
| Supports AS-Interface Safety at Work protocol | No |
| Supports DeviceNet Safety protocol | No |
| Supports the INTERBUS security protocol | No |
| Supports PROFIsafe protocol | No |
| Supports the SafetyBUS protocol p | No |
| Supports protocol for other bus systems | No |
| Bluetooth wireless standard | No |
| WLAN Radio Standard 802.11 | No |
| GPRS Radio Standard | No |
| GSM Radio Standard | No |
| UMTS Radio Standard | No |
| I/O Link Master | No |
| System Component | No |
| Protection Class (IP) | IP3X |
| Running the electrical connection | Threaded connection |
| Delay time with signal change | 200-300 ms |
| Fieldbus connection possible via separate bus coupler | No |
| Rail mounting possible | Yes |
| Wall/direct mounting possible | No |
| Front installation possible | No |
| Rack mounting possible | No |
| Suitable for safety functions | No |
| SIL according to IEC 61508 | none |
| Performance level according to EN ISO 13849-1 | none |
| Associated equipment (Exia) | No |
| Associated teams (Ex ib) | No |
| Explosion protection category for gas | none |
| Explosion protection category for dust | none |
| Width | 17.8 mm |
| Height | 95.9 mm |
| Depth | 71 mm |
| Feature Name | Feature Value |
|---|---|
| Radio standard UMTS (EF008525) | No |
| Fieldbus connection over separate bus coupler possible (EF004002) | No |
| Height (EF000040) | 95.9 mm |
| Supporting protocol for INTERBUS-Safety (EF006662) | No |
| Type of voltage (input voltage) (EF003033) | AC |
| Performance level according to EN ISO 13849-1 (EF007399) | None |
| Permitted voltage at output (EF007553) | 5 V |
| Permitted voltage at input (EF007554) | 0 V |
| Radio standard GPRS (EF008523) | No |
| Radio standard GSM (EF008524) | No |
| Digital outputs configurable (EF008520) | No |
| Time delay at signal change (EF002382) | 200 ms |
| System accessory (EF004118) | No |
| Supporting protocol for PROFINET CBA (EF007524) | No |
| Voltage type (supply voltage) (EF002991) | AC |
| Supporting protocol for PROFINET IO (EF007525) | No |
| Supporting protocol for PROFIsafe (EF007526) | No |
| Supporting protocol for SafetyBUS p (EF007527) | No |
| Supporting protocol for DeviceNet Safety (EF007520) | No |
| Short-circuit protection, outputs available (EF003203) | No |
| Supporting protocol for EtherNet/IP (EF007521) | No |
| Supporting protocol for Foundation Fieldbus (EF007522) | No |
| Type of electric connection (EF003961) | Screw connection |
| Depth (EF000049) | 71 mm |
| Explosion safety category for gas (EF003997) | None |
| Explosion safety category for dust (EF003998) | None |
| Width (EF000008) | 17.8 mm |
| Supporting protocol for AS-Interface Safety at Work (EF007519) | No |
| Rack-assembly possible (EF007018) | No |
| Supporting protocol for Modbus (EF003057) | No |
| Supporting protocol for INTERBUS (EF003054) | No |
| Degree of protection (IP) (EF005474) | IP3X |
| Supporting protocol for KNX (EF003055) | No |
| Number of digital inputs (EF001992) | 1 |
| Radio standard WLAN 802.11 (EF007179) | No |
| Supporting protocol for LON (EF003017) | No |
| Supply voltage AC 50 Hz (EF007532) | 100 V |
| Front built-in possible (EF007016) | No |
| Supporting protocol for Data-Highway (EF003058) | No |
| Supply voltage AC 60 Hz (EF007533) | 100 V |
| Number of digital outputs (EF001993) | 1 |
| Suitable for rail mounting (EF003972) | Yes |
| Suitable for safety functions (EF001597) | No |
| Supporting protocol for DeviceNet (EF003059) | No |
| IO link master (EF007298) | No |
| Type of output voltage (EF008222) | AC/DC |
| Radio standard Bluetooth (EF007178) | No |
| Appendant operation agent (Ex ib) (EF004142) | No |
| Supporting protocol for PROFIBUS (EF003052) | No |
| Appendant operation agent (Ex ia) (EF004141) | No |
| Supporting protocol for CAN (EF003053) | No |
| Supporting protocol for TCP/IP (EF003050) | No |
| Supporting protocol for ASI (EF003051) | No |
| Type of digital output (EF003601) | Relay |
| Input current at signal 1 (EF001428) | 0.5 mA |
| Number of HW-interfaces RS-485 (EF003023) | 0 |
| SIL according to IEC 61508 (EF009889) | None |
| Number of HW-interfaces serial TTY (EF003024) | 0 |
| Digital inputs configurable (EF008516) | No |
| Number of HW-interfaces RS-232 (EF003021) | 0 |
| Number of interfaces PROFINET (EF006932) | 0 |
| Number of HW-interfaces RS-422 (EF003022) | 0 |
| Number of HW-interfaces wireless (EF006933) | 1 |
| Number of HW-interfaces other (EF003027) | 0 |
| Supporting protocol for SERCOS (EF006657) | No |
| With optical interface (EF003028) | No |
| Number of HW-interfaces USB (EF003025) | 0 |
| Number of HW-interfaces parallel (EF003026) | 0 |
| Supporting protocol for SUCONET (EF003060) | No |
| Number of HW-interfaces industrial Ethernet (EF003020) | 0 |
| Wall mounting/direct mounting (EF007020) | No |
| Supporting protocol for other bus systems (EF003062) | No |
