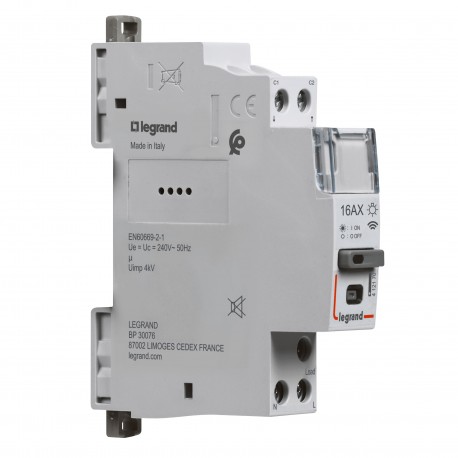

412170 LEGRAND CONNECTED TELESWITCH

Name: 412170 LEGRAND CONNECTED TELESWITCH
Brand: LEGRAND
SKU: LEG412170
Price: 197.00 USD
Availability: OutOfStock

Code: 412170

Manufacturer: LEGRAND

Description:

CONNECTED TELESWITCH

CX³ with Netatmo Single Pole 16A 230V AC Connected Latching Relay

Connected switch for electrical panel

Categories:

Devices for distribution board-/surface mounting > Latching relay
LEGRAND

Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND

More Info
ETIM
PDF
Reviews

Guarantee, repair and return.

Unit Price: 175,99 €

This price is per unit and is the net value (not including taxes if applicable).

Special discounts for registered customers.Login or register and prices will be updated.

Calculate price by quantity

Quantity	Price

Standard lead time: 5 days.

These delivery times are an estimate any may vary when the item order has been processed.
You will be notified of any change to delivery times once the order has been processed.
To this delivery time you have to add the time of transport from our logistics centre to your company.

MORE INFO

Function	Electronic switch
Mounting method	DIN rail
Width in number of modular spacings	1
Built-in depth	44 mm
Number of contacts as normally open contact	1
Rated switch current	16 A
Supply voltage	240-240 V
Voltage type (supply voltage)	AC
Max. incandescent lamp load	3840 W
Max. load fluorescent lamp	3000 VA
Max. switching current (cos phi = 0.6)	16 A
Suitable for manual operation	Yes
Width	17.8 mm

Height	95.9 mm
Depth	70.1 mm
degree of impact strength (IK)	IK04
Degree of protection (IP)	IP3X
Operating / setting temperature	-5-45 °C
Storage temperature	-40-70 °C
Electric supplying direction	Not applicable
Terminal marking indication	Yes
Stress test conformity (1000V)	Yes
Halogen free	Yes
Connection type	Screwed terminal , Cable
Terminals capacity	0.75-6 mm²
Label space/information surface	Yes

ETIM for 412170 Modular devices for distribution board/surface mounting (EC000188)

Feature nameMax. load fluorescent lamp (EF004971)

Feature value3000 VA

Feature nameFunction (EF000030)

Feature valueElectronic switch

Feature nameVoltage type (supply voltage) (EF002991)

Feature valueAC

Feature nameMax. switching current (cos phi = 0.6) (EF004920)

Feature value16 A

Feature nameWidth in number of modular spacings (EF002950)

Feature value1

Feature nameMax. incandescent lamp load (EF004952)

Feature value3840 W

Feature nameSupply voltage (EF004127)

Feature value240 V

Feature nameMounting method (EF000003)

Feature valueDIN rail

Feature nameNumber of contacts as normally open contact (EF008256)

Feature value1

Feature nameRated switch current (EF006706)

Feature value16 A

Feature nameBuilt-in depth (EF000218)

Feature value44 mm

Feature nameSuitable for manual operation (EF002978)

Feature valueYes

DATASHEET - PDF

Title

Size

Type

412170 EN_412170.pdf

139 Kbytes
