LEGRANDSUPERVISION AND ENERGY MEASUREMENT412157 LEGRAND TRANSF INTENSITY TRI 250/5A

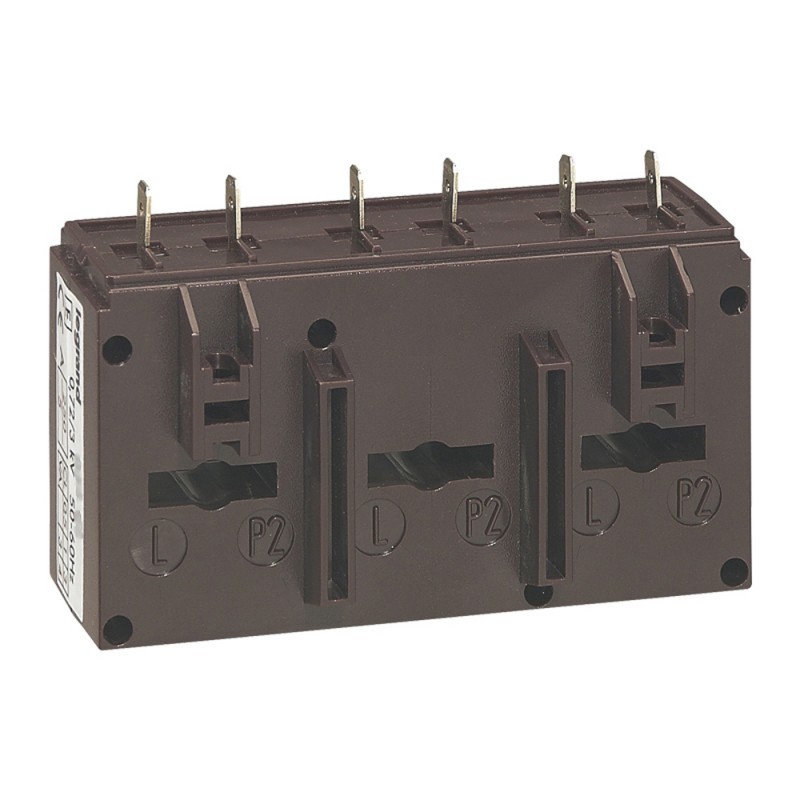

LEGRAND 412157 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

412157 LEGRAND TRANSF INTENSITY TRI 250/5A

Code: 412157

Manufacturer: LEGRAND

Description:

TRANSF INTENSITY TRI 250/5A
Legrand Three Phase Solid Core Current Transformer 250/5 3VA
Closed three-phase current transformer 250/5 - 3.0VA

Categories:

  • Low-voltage industrial components > Current transformer
  • LEGRAND > SUPERVISION AND ENERGY MEASUREMENT

Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 46,40 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 15-17 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

Used with ammeters, electricity meters or multi-function measuring units Current at the secondary: 5 A For fixing directly on bars
Model3-phase current converter set
Rated primary current250 A
Rated secondary current5 A
Rated secondary apparent power3 VA
Power consumption3 W
Accuracy class1
Overcurrent limiting factorFS 5
CalibratedYes
With contact protectionYes
Height opening8-8 mm
Width opening8-8 mm
Opening diameter8 mm
With copper railNo
Secondary connectionScrew connection
Number of primary inputs1

ETIM for 412157 Low-voltage industrial controls and switchgear (EC002048)

Feature nameRated primary current (EF007405)
Feature value250 A
Feature nameSecondary connection (EF021093)
Feature valueScrew connection
Feature nameModel (EF000010)
Feature value3-phase current converter set
Feature nameCalibrated (EF008836)
Feature valueYes
Feature nameOvercurrent limiting factor (EF007511)
Feature valueFS 5
Feature nameAccuracy class (EF008842)
Feature value1
Feature nameWith copper rail (EF007380)
Feature valueNo
Feature nameHeight opening (EF012757)
Feature value8 mm
Feature nameOpening diameter (EF005153)
Feature value8 mm
Feature nameWidth opening (EF012758)
Feature value8 mm
Feature nameRated secondary apparent power (EF007470)
Feature value3 VA
Feature nameWith contact protection (EF008186)
Feature valueYes
Feature nameRated secondary current (EF007471)
Feature value5 A
Feature namePower consumption (EF000346)
Feature value3 W
Feature nameNumber of primary inputs (EF006947)
Feature value1

DATASHEET - PDF

Title
Size
Type
412157 EN_412157.pdf
503 Kbytes
