412152 LEGRAND TRANSF INTENSITY MONO 2500/5A
412152
LEGRAND
TRANSF INTENSITY MONO 2500/5A

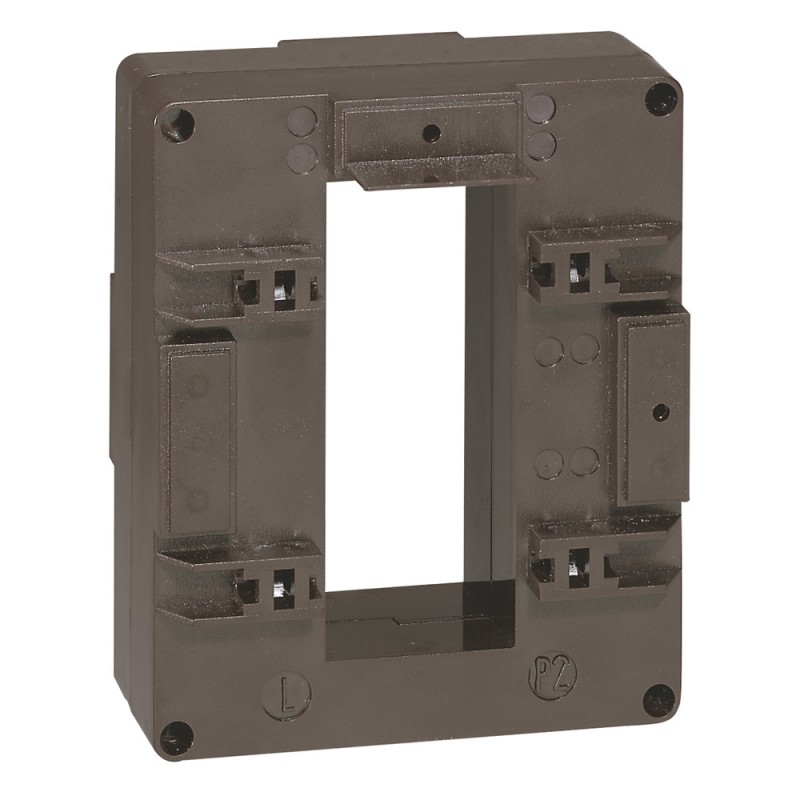

Legrand Single Phase Solid Core Current Transformer 2500/5 30VA
Closed Core Current Transformer 2500/5 - 30.0VA
Low-voltage industrial components > Current transformer
SUPERVISION AND ENERGY MEASUREMENT
Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND
Best sellers
▲More info
▲| Model | Single-phase current converter |
|---|---|
| Rated primary current | 2500 A |
| Rated secondary current | 5 A |
| Rated secondary apparent power | 30 VA |
| Power consumption | 30 W |
| Accuracy class | 0.5 |
| Overcurrent limiting factor | FS 5 |
|---|---|
| Calibrated | Yes |
| With contact protection | Yes |
| With copper rail | No |
| Secondary connection | Screw connection |
| Number of primary inputs | 1 |
| Feature Name | Feature Value |
|---|---|
| Rated primary current (EF007405) | 2500 A |
| Secondary connection (EF021093) | Screw connection |
| Model (EF000010) | Single-phase current converter |
| Calibrated (EF008836) | Yes |
| Overcurrent limiting factor (EF007511) | FS 5 |
| Accuracy class (EF008842) | 0.5 |
| With copper rail (EF007380) | No |
| Rated secondary apparent power (EF007470) | 30 VA |
| With contact protection (EF008186) | Yes |
| Rated secondary current (EF007471) | 5 A |
| Power consumption (EF000346) | 30 W |
| Number of primary inputs (EF006947) | 1 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| 412152 EN_412101.pdf | 783 Kbytes |
 |
