LEGRANDSUPERVISION AND ENERGY MEASUREMENT412151 LEGRAND TRANSF INTENSITY MONO 2000/5A

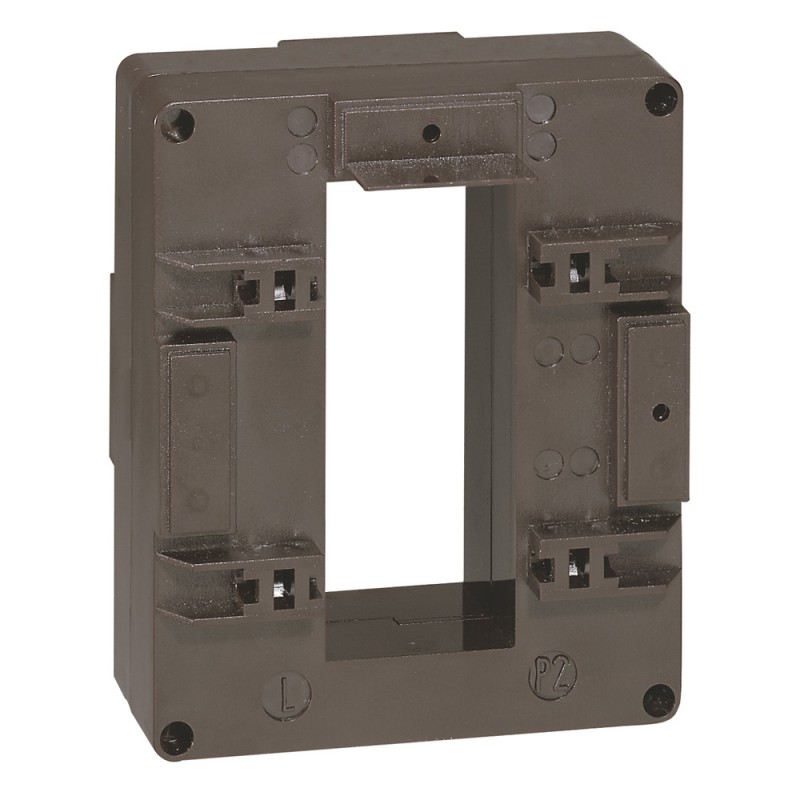

LEGRAND 412151 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

412151 LEGRAND TRANSF INTENSITY MONO 2000/5A

Code: 412151

Manufacturer: LEGRAND

Description:

TRANSF INTENSITY MONO 2000/5A
Single phase current transformer (CT) for 127 x 54 mm bar - transformation ratio 2000/5
Closed Core Current Transformer 2000/5 - 25VA

Categories:

  • Low-voltage industrial components > Current transformer
  • LEGRAND > SUPERVISION AND ENERGY MEASUREMENT

Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 99,27 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 15-17 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

  • Pack (number of units)1
  • Volume (dm3)2.21
  • Weight (g)903.00
Product characteristics
Single-phase solid core current transformers
  • Used with ammeters, electricity meters or multi-function measuring units
  • Current at the secondary: 5 A
  • Can be fixed on plate, EN 60715 rail Cat.No 4 121 01/02/03/04/05/06/07, or bars
  • Secondary connected by terminals or lugs
  • Precision class: 1 %
For 127 x 54 mm bar
  • Transformation ratio : 2000/5
  • Output : 25 VA
General characteristics
Current transformers (CT)

ETIM for 412151 Low-voltage industrial controls and switchgear (EC002048)

Feature nameRated primary current (EF007405)
Feature value2000 A
Feature nameSecondary connection (EF021093)
Feature valueScrew connection
Feature nameModel (EF000010)
Feature valueSingle-phase current converter
Feature nameCalibrated (EF008836)
Feature valueYes
Feature nameOvercurrent limiting factor (EF007511)
Feature valueFS 5
Feature nameAccuracy class (EF008842)
Feature value0.5
Feature nameWith copper rail (EF007380)
Feature valueNo
Feature nameRated secondary apparent power (EF007470)
Feature value25 VA
Feature nameWith contact protection (EF008186)
Feature valueYes
Feature nameRated secondary current (EF007471)
Feature value5 A
Feature namePower consumption (EF000346)
Feature value25 W
Feature nameNumber of primary inputs (EF006947)
Feature value1
