LEGRANDSUPERVISION AND ENERGY MEASUREMENT412138 LEGRAND TRANSF INTENSITY MONO 800/5A

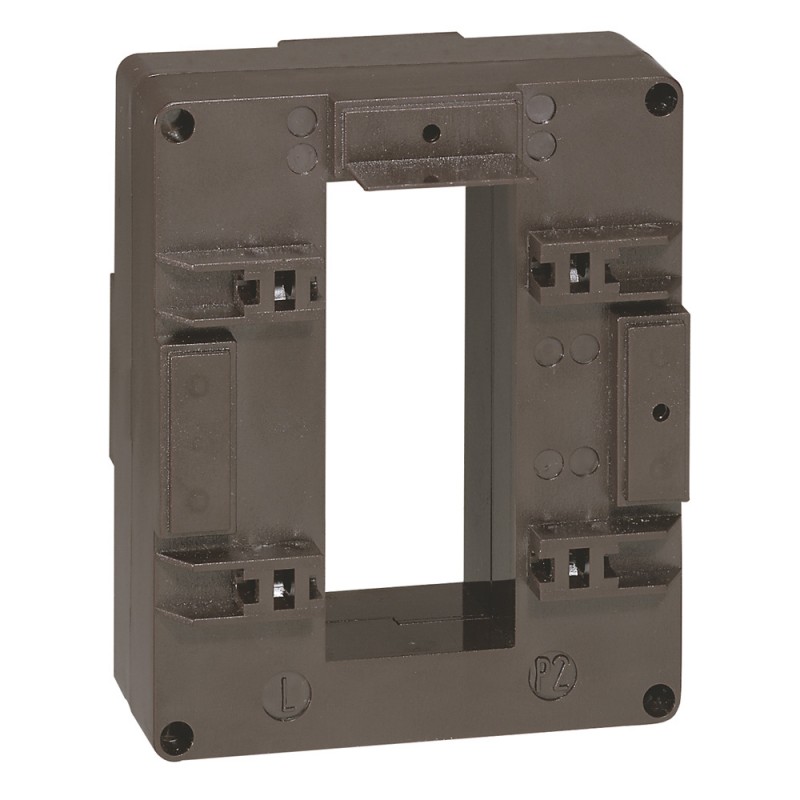

LEGRAND 412138 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

412138 LEGRAND TRANSF INTENSITY MONO 800/5A

Code: 412138

Manufacturer: LEGRAND

Description:

TRANSF INTENSITY MONO 800/5A
Legrand Single Phase Solid Core Current Transformer 800/5 12VA
Closed Core Current Transformer 800/5 - 12.0VA

Categories:

  • Low-voltage industrial components > Current transformer
  • LEGRAND > SUPERVISION AND ENERGY MEASUREMENT

Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 42,30 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 15-17 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

Used with ammeters, electricity meters or multi-function measuring units Current at the secondary: 5 A Can be fixed on plate, EN 60715 4 rail
ModelSingle-phase current converter
Rated primary current800 A
Rated secondary current5 A
Rated secondary apparent power12 VA
Power consumption12 W
Accuracy class0.5
Overcurrent limiting factorFS 5
CalibratedYes
With contact protectionYes
With copper railNo
Secondary connectionScrew connection
Number of primary inputs1

ETIM for 412138 Low-voltage industrial controls and switchgear (EC002048)

Feature nameRated primary current (EF007405)
Feature value800 A
Feature nameSecondary connection (EF021093)
Feature valueScrew connection
Feature nameModel (EF000010)
Feature valueSingle-phase current converter
Feature nameCalibrated (EF008836)
Feature valueYes
Feature nameOvercurrent limiting factor (EF007511)
Feature valueFS 5
Feature nameAccuracy class (EF008842)
Feature value0.5
Feature nameWith copper rail (EF007380)
Feature valueNo
Feature nameRated secondary apparent power (EF007470)
Feature value12 VA
Feature nameWith contact protection (EF008186)
Feature valueYes
Feature nameRated secondary current (EF007471)
Feature value5 A
Feature namePower consumption (EF000346)
Feature value12 W
Feature nameNumber of primary inputs (EF006947)
Feature value1

DATASHEET - PDF

Title
Size
Type
412138 EN_412101.pdf
783 Kbytes
