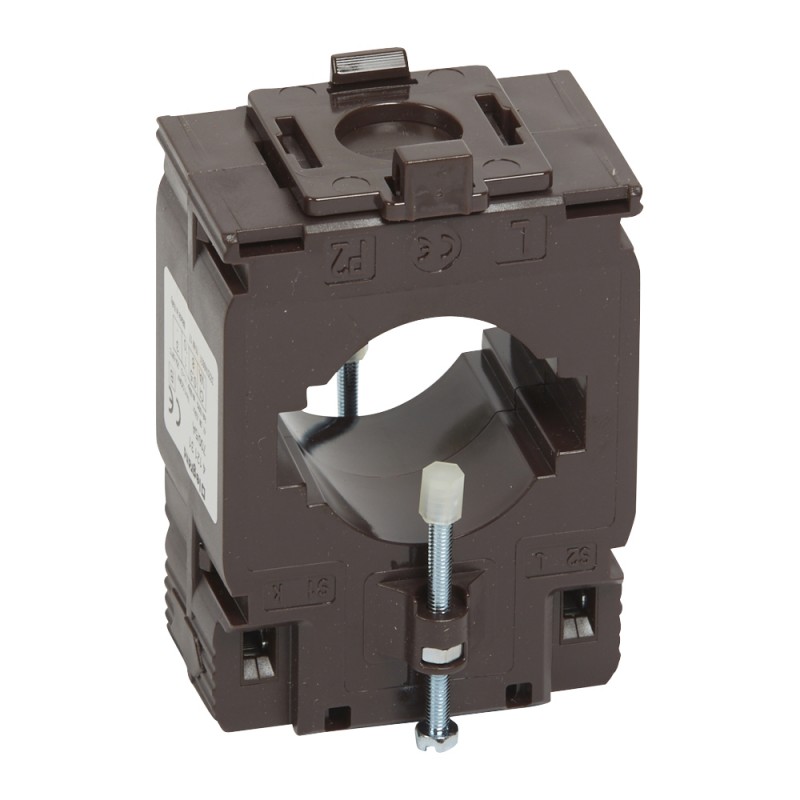

LEGRAND 412131 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

412131 LEGRAND TRANSF INTENSITY MONO 700/5A

Code: 412131

Manufacturer: LEGRAND

Description:

TRANSF INTENSITY MONO 700/5A
Single phase current transformer (CT) for 50.5x12.5 / 40.5x20.5 mm bar - transformation ratio 700/5
Closed Core Current Transformer 700/5 - 8.0VA

Categories:

  • Low-voltage industrial components > Current transformer
  • LEGRAND > SUPERVISION AND ENERGY MEASUREMENT

Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 37,53 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 15-17 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

  • Pack (number of units)1
  • Volume (dm3)0.655
  • Weight (g)362.00
Product characteristics
Single-phase solid core current transformers
  • Used with ammeters, electricity meters or multi-function measuring units
  • Current at the secondary: 5 A
  • Can be fixed on plate, EN 60715 rail Cat.No 4 121 01/02/03/04/05/06/07, or bars
  • Secondary connected by terminals or lugs
  • Precision class: 1 %
For 50,5 x 12,5 and 40,5 x 20,5 mm bars or Ø40 mm cable
  • Transformation ratio : 700/5
  • Output : 8 VA
General characteristics
Current transformers (CT)

ETIM for 412131 Low-voltage industrial controls and switchgear (EC002048)

Feature nameRated primary current (EF007405)
Feature value700 A
Feature nameSecondary connection (EF021093)
Feature valueScrew connection
Feature nameModel (EF000010)
Feature valueSingle-phase current converter
Feature nameCalibrated (EF008836)
Feature valueYes
Feature nameOvercurrent limiting factor (EF007511)
Feature valueFS 5
Feature nameAccuracy class (EF008842)
Feature value0.5
Feature nameWith copper rail (EF007380)
Feature valueNo
Feature nameHeight opening (EF012757)
Feature value40 mm
Feature nameOpening diameter (EF005153)
Feature value40 mm
Feature nameWidth opening (EF012758)
Feature value40 mm
Feature nameRated secondary apparent power (EF007470)
Feature value8 VA
Feature nameWith contact protection (EF008186)
Feature valueYes
Feature nameRated secondary current (EF007471)
Feature value5 A
Feature namePower consumption (EF000346)
Feature value8 W
Feature nameNumber of primary inputs (EF006947)
Feature value1
