LEGRANDSUPERVISION AND ENERGY MEASUREMENT412114 LEGRAND TRANSF INTENSITY MONO 600/5A

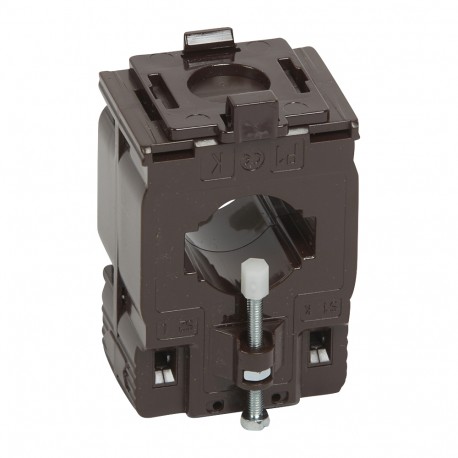

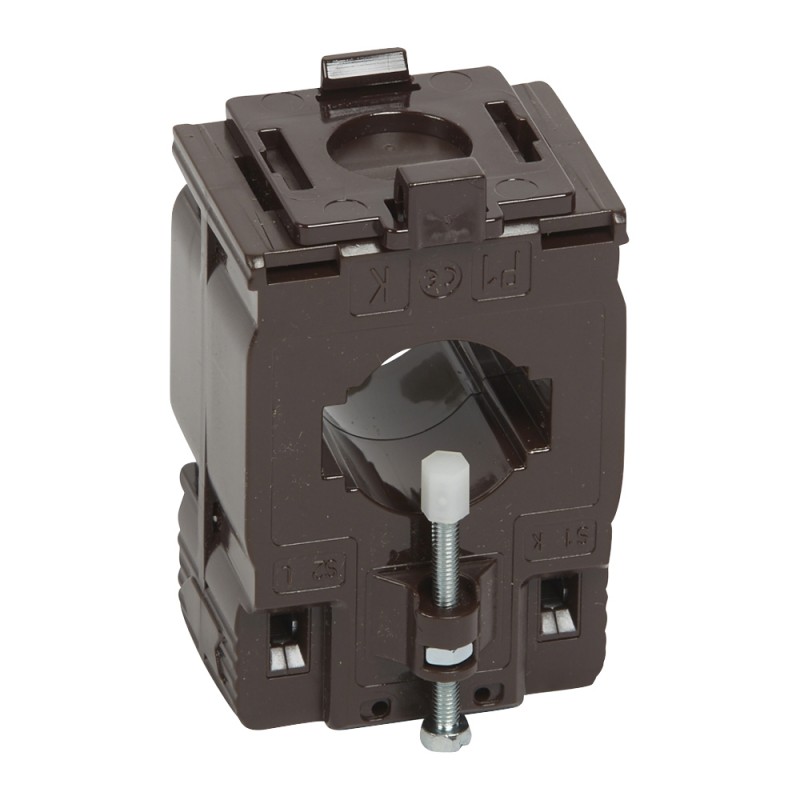

LEGRAND 412114 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

412114 LEGRAND TRANSF INTENSITY MONO 600/5A

Code: 412114

Manufacturer: LEGRAND

Description:

TRANSF INTENSITY MONO 600/5A
Single phase current transformer (CT) for 32x10.5 / 25.5x15.5 mm bar - transformation ratio 600/5
Closed Core Current Transformer 600/5 - 12VA

Categories:

  • Low-voltage industrial components > Current transformer
  • LEGRAND > SUPERVISION AND ENERGY MEASUREMENT

Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 24,93 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 15-17 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

  • Pack (number of units)1
  • Volume (dm3)0.47
  • Weight (g)346.00
Product characteristics
Single-phase solid core current transformers
  • Used with ammeters, electricity meters or multi-function measuring units
  • Current at the secondary: 5 A
  • Can be fixed on plate, EN 60715 rail Cat.No 4 121 01/02/03/04/05/06/07, or bars
  • Secondary connected by terminals or lugs
  • Precision class: 1 %
For 32,5 x 10,5 and 25,5 x 15,5 mm bars or Ø27 mm cable
  • Transformation ratio : 600/5
  • Output : 12 VA
General characteristics
Current transformers (CT)

ETIM for 412114 Low-voltage industrial controls and switchgear (EC002048)

Feature nameRated primary current (EF007405)
Feature value600 A
Feature nameSecondary connection (EF021093)
Feature valueScrew connection
Feature nameModel (EF000010)
Feature valueSingle-phase current converter
Feature nameCalibrated (EF008836)
Feature valueYes
Feature nameOvercurrent limiting factor (EF007511)
Feature valueFS 5
Feature nameAccuracy class (EF008842)
Feature value0.5
Feature nameWith copper rail (EF007380)
Feature valueNo
Feature nameHeight opening (EF012757)
Feature value27 mm
Feature nameOpening diameter (EF005153)
Feature value27 mm
Feature nameWidth opening (EF012758)
Feature value27 mm
Feature nameRated secondary apparent power (EF007470)
Feature value15 VA
Feature nameWith contact protection (EF008186)
Feature valueYes
Feature nameRated secondary current (EF007471)
Feature value5 A
Feature namePower consumption (EF000346)
Feature value15 W
Feature nameNumber of primary inputs (EF006947)
Feature value1

DATASHEET - PDF

Title
Size
Type
412114 EN_412101.pdf
783 Kbytes
