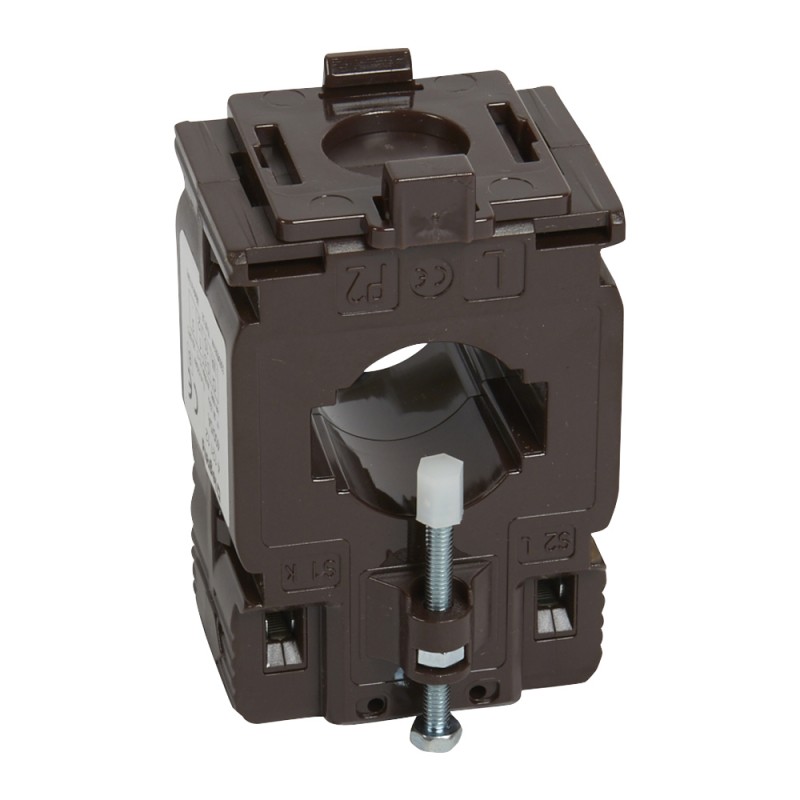

412112 LEGRAND TRANSF INTENSITY MONO-400/5A
412112
LEGRAND
TRANSF INTENSITY MONO-400/5A
Single phase current transformer (CT) for 32x10.5 / 25.5x15.5 mm bar - transformation ratio 400/5
Closed Core Current Transformer 400/5 - 10VA
Low-voltage industrial components > Current transformer
SUPERVISION AND ENERGY MEASUREMENT
Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND
Best sellers
▲More info
▲- Pack (number of units)1
- Volume (dm3)0.451
- Weight (g)322.00
- Used with ammeters, electricity meters or multi-function measuring units
- Current at the secondary: 5 A
- Can be fixed on plate, EN 60715 rail Cat.No 4 121 01/02/03/04/05/06/07, or bars
- Secondary connected by terminals or lugs
- Precision class: 1 %
- Transformation ratio : 400/5
- Output : 10 VA
| Feature Name | Feature Value |
|---|---|
| Rated primary current (EF007405) | 400 A |
| Secondary connection (EF021093) | Screw connection |
| Model (EF000010) | Single-phase current converter |
| Calibrated (EF008836) | Yes |
| Overcurrent limiting factor (EF007511) | FS 5 |
| Accuracy class (EF008842) | 0.5 |
| With copper rail (EF007380) | No |
| Height opening (EF012757) | 27 mm |
| Opening diameter (EF005153) | 27 mm |
| Width opening (EF012758) | 27 mm |
| Rated secondary apparent power (EF007470) | 10 VA |
| With contact protection (EF008186) | Yes |
| Rated secondary current (EF007471) | 5 A |
| Power consumption (EF000346) | 10 W |
| Number of primary inputs (EF006947) | 1 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| 412112 EN_412101.pdf | 783 Kbytes |
 |
