LEGRANDSUPERVISION AND ENERGY MEASUREMENT412101 LEGRAND TRANSF INTENSITY MONO 50/5A

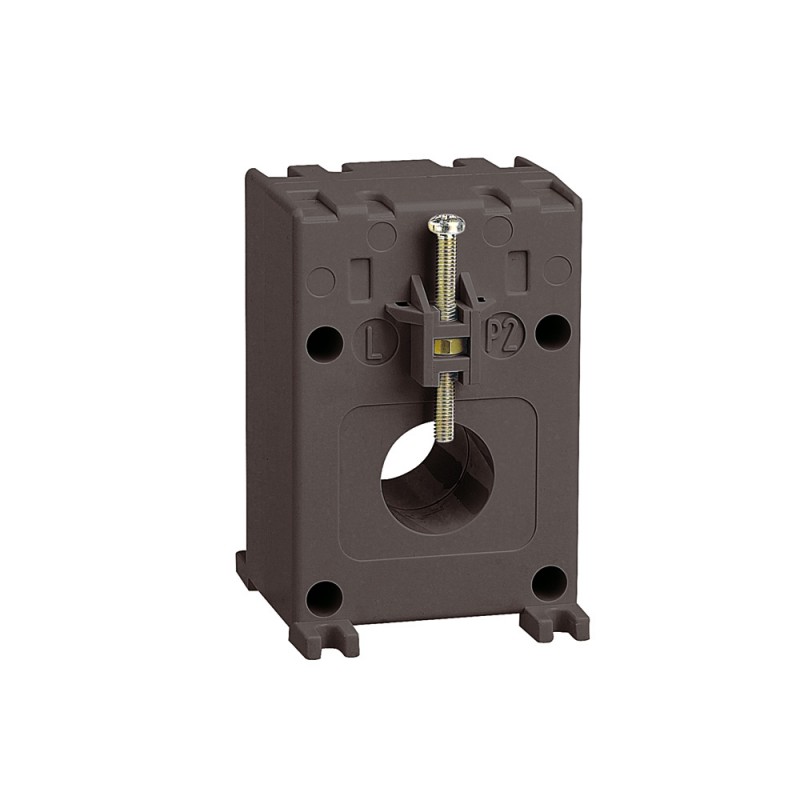

LEGRAND 412101 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

412101 LEGRAND TRANSF INTENSITY MONO 50/5A

Code: 412101

Manufacturer: LEGRAND

Description:

TRANSF INTENSITY MONO 50/5A
Legrand Single Phase Solid Core Current Transformer 50/5 1.25VA
Closed Core Current Transformer 50/5 - 1.25VA

Categories:

  • Low-voltage industrial components > Current transformer
  • LEGRAND > SUPERVISION AND ENERGY MEASUREMENT

Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 18,63 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 5 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

Used with ammeters, electricity meters or multi-function measuring units Current at the secondary: 5 A Can be fixed on plate, EN 60715 4 rail
ModelSingle-phase current converter
Rated primary current50 A
Rated secondary current5 A
Rated secondary apparent power1.3 VA
Power consumption1.3 W
Accuracy class1
Overcurrent limiting factorFS 5
CalibratedYes
With contact protectionYes
Height opening21-21 mm
Width opening21-21 mm
Opening diameter21 mm
With copper railNo
Secondary connectionScrew connection
Number of primary inputs1

ETIM for 412101 Low-voltage industrial controls and switchgear (EC002048)

Feature nameRated primary current (EF007405)
Feature value50 A
Feature nameSecondary connection (EF021093)
Feature valueScrew connection
Feature nameModel (EF000010)
Feature valueSingle-phase current converter
Feature nameCalibrated (EF008836)
Feature valueYes
Feature nameOvercurrent limiting factor (EF007511)
Feature valueFS 5
Feature nameAccuracy class (EF008842)
Feature value1
Feature nameWith copper rail (EF007380)
Feature valueNo
Feature nameHeight opening (EF012757)
Feature value21 mm
Feature nameOpening diameter (EF005153)
Feature value21 mm
Feature nameWidth opening (EF012758)
Feature value21 mm
Feature nameRated secondary apparent power (EF007470)
Feature value1.3 VA
Feature nameWith contact protection (EF008186)
Feature valueYes
Feature nameRated secondary current (EF007471)
Feature value5 A
Feature namePower consumption (EF000346)
Feature value1.3 W
Feature nameNumber of primary inputs (EF006947)
Feature value1

DATASHEET - PDF

Title
Size
Type
412101 EN_412101.pdf
783 Kbytes
