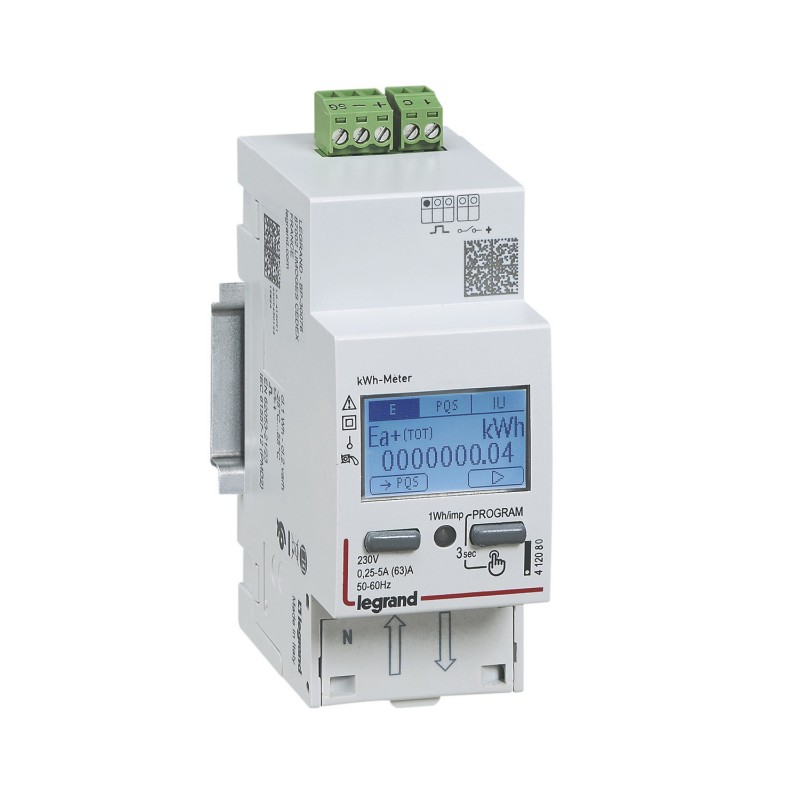

412082 LEGRAND EMDX3 METER MONO 63A MID
412082
LEGRAND
EMDX3 METER MONO 63A MID
EMDX³ 63A Energy Meter Single Phase Direct Connection Pulse Output MID Compliant
Single-phase energy meter EMDX³ - MID - direct connection 63A - 2mod
Meters > Kilowatt-hour meter
SUPERVISION AND ENERGY MEASUREMENT
Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND
Related products
▲Best sellers
▲More info
▲| Type of meter | Electronic |
|---|---|
| Nominal current (In) | 10 A |
| Max. current (Imax) | 63 A |
| Nominal voltage (Un) N-L | 197-265 V |
| Frequency | 49-61 Hz |
| Accuracy class | B |
| Pole type | Single phase |
| Model | Direct measurement |
| Energy type | Effective power and reactive power |
| Suitable for | Purchase/supply |
| Tariff type | Two-tariff |
| Tariff control | External |
| Measurement type load profile | No |
| Escapement mechanism | Yes |
| Calibrated | Yes |
| Approval | Measuring Instruments Directive |
| Pulse output | Optical |
| Pulse type | S0 |
| Pulse rate | 0.001-10 Imp/kWh (kvarh) |
| Type of indication | Digital |
| Mounting method | DRA (DIN-rail adaptor) |
| Width in number of modular spacings | 2 |
|---|---|
| Width | 35.8 mm |
| Depth | 66 mm |
| Height | 92.4 mm |
| Type of interface | None |
| With lock code | Yes |
| Number of positions total (counter) | 9 |
| Degree of protection (IP) | IP54 |
| Operating / setting temperature | -25-55 °C |
| Storage temperature | -25-70 °C |
| Voltage type | AC |
| Terminal marking indication | Yes |
| Colour | Grey |
| RAL-number | 7035 |
| Halogen free | Yes |
| Prewired | No |
| Connection type | Screwed terminal |
| Terminals capacity | 1-16 mm² |
| Label space/information surface | No |
| Connected object | No |
| Feature Name | Feature Value |
|---|---|
| Measurement type load profile (EF008844) | No |
| Height (EF000040) | 92.4 mm |
| Number of positions total (counter) (EF004442) | 9 |
| With lock code (EF008846) | Yes |
| Degree of protection (IP) (EF005474) | IP54 |
| Energy type (EF007135) | Effective power and reactive power |
| Pulse rate (EF008840) | 0.001 Imp/kWh (kvarh) |
| Accuracy class (EF008842) | B |
| Mounting method (EF000003) | DRA (DIN-rail adapter) |
| Pole type (EF008843) | Single phase |
| Tariff type (EF007550) | Two-tariff |
| Approval (EF008837) | Measuring Instruments Directive |
| Frequency (EF000416) | 49 Hz |
| Pulse output (EF008838) | Optic |
| Max. current (Imax) (EF000877) | 63 A |
| Pulse type (EF008839) | S0 |
| Tariff control (EF008834) | External |
| Suitable for (EF000073) | Purchase/supply |
| Escapement mechanism (EF008835) | Yes |
| Model (EF000010) | Direct measurement |
| Calibrated (EF008836) | Yes |
| Type of meter (EF005441) | Electronic |
| Type of interface (EF006977) | None |
| Nominal current (In) (EF008873) | 10 A |
| Width in number of modular spacings (EF002950) | 2 |
| Nominal voltage (Un) N-L (EF008871) | 197 V |
| Depth (EF000049) | 66 mm |
| Type of indication (EF000306) | Digital |
| Width (EF000008) | 35.8 mm |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| 412082 EN_412082.pdf | 5 Mbytes |
 |
