LEGRANDSUPERVISION AND ENERGY MEASUREMENT412081 LEGRAND EMDX3 MONO COUNTER 63A

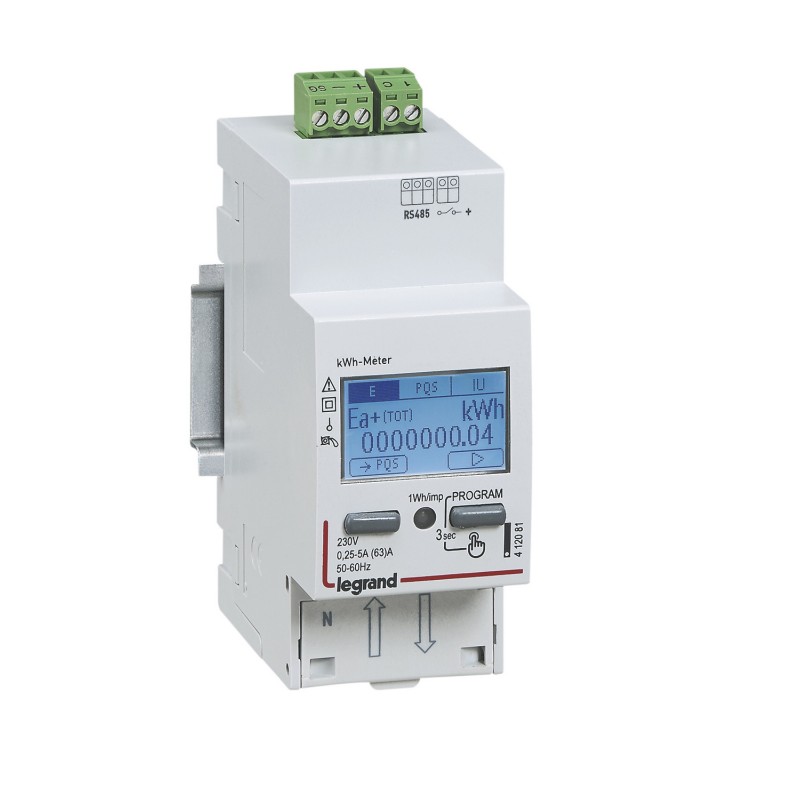

LEGRAND 412081 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

412081 LEGRAND EMDX3 MONO COUNTER 63A

Code: 412081

Manufacturer: LEGRAND

Description:

EMDX3 MONO COUNTER 63A
EMDX3 METER MONO 63RD
EMDX³ 63A Energy Meter Single Phase Direct Connection RS 485 Output Non-MID
EMDX³ single-phase energy meter - non-MID - direct connection 63A - 2mod

Categories:

  • Meters > Kilowatt-hour meter
  • LEGRAND > SUPERVISION AND ENERGY MEASUREMENT

Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 209,10 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 5 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

Measure the electricity consumed by a single phase or three phase circuit downstream of the electricity distribution metering Display electricity consumption in kWh, as well as other values such as current, active energy, reactive energy and power (depending on the catalogue number) MID compliance ensures accuracy of the metering with a view to recharging for the electricity used
Type of meterElectronic
Nominal current (In)10 A
Max. current (Imax)63 A
Nominal voltage (Un) N-L197-265 V
Frequency47-63 Hz
Accuracy classB
Pole typeSingle phase
ModelDirect measurement
Energy typeEffective power and reactive power
Suitable forPurchase/supply
Tariff typeTwo-tariff
Tariff controlExternal
Measurement type load profileNo
Escapement mechanismYes
CalibratedYes
ApprovalDomestic
Pulse outputNone
Type of indicationDigital
Mounting methodDRA (DIN-rail adaptor)
Width in number of modular spacings2
Width35.8 mm
Depth66 mm
Height92.4 mm
Type of interfaceRS-485
With lock codeYes
Number of positions total (counter)9
Degree of protection (IP)IP54
Operating / setting temperature-25-55 °C
Storage temperature-25-70 °C
Voltage typeAC
Terminal marking indicationYes
ColourGrey
RAL-number7035
Halogen freeYes
PrewiredNo
Connection typeScrewed terminal
Terminals capacity1-16 mm²
Label space/information surfaceNo
Connected objectNo

ETIM for 412081 Meters (EC001506)

Feature nameMeasurement type load profile (EF008844)
Feature valueNo
Feature nameHeight (EF000040)
Feature value92.4 mm
Feature nameNumber of positions total (counter) (EF004442)
Feature value9
Feature nameWith lock code (EF008846)
Feature valueYes
Feature nameDegree of protection (IP) (EF005474)
Feature valueIP54
Feature nameEnergy type (EF007135)
Feature valueEffective power and reactive power
Feature nameAccuracy class (EF008842)
Feature valueB
Feature nameMounting method (EF000003)
Feature valueDRA (DIN-rail adapter)
Feature namePole type (EF008843)
Feature valueSingle phase
Feature nameTariff type (EF007550)
Feature valueTwo-tariff
Feature nameApproval (EF008837)
Feature valueDomestic
Feature nameFrequency (EF000416)
Feature value47 Hz
Feature namePulse output (EF008838)
Feature valueNone
Feature nameMax. current (Imax) (EF000877)
Feature value63 A
Feature nameTariff control (EF008834)
Feature valueExternal
Feature nameSuitable for (EF000073)
Feature valuePurchase/supply
Feature nameEscapement mechanism (EF008835)
Feature valueYes
Feature nameModel (EF000010)
Feature valueDirect measurement
Feature nameCalibrated (EF008836)
Feature valueYes
Feature nameType of meter (EF005441)
Feature valueElectronic
Feature nameType of interface (EF006977)
Feature valueRS-485
Feature nameNominal current (In) (EF008873)
Feature value10 A
Feature nameWidth in number of modular spacings (EF002950)
Feature value2
Feature nameNominal voltage (Un) N-L (EF008871)
Feature value197 V
Feature nameDepth (EF000049)
Feature value66 mm
Feature nameType of indication (EF000306)
Feature valueDigital
Feature nameWidth (EF000008)
Feature value35.8 mm
