LEGRANDSUPERVISION AND ENERGY MEASUREMENT412075 LEGRAND EMDX3 MID 125 TRIF COUNTER

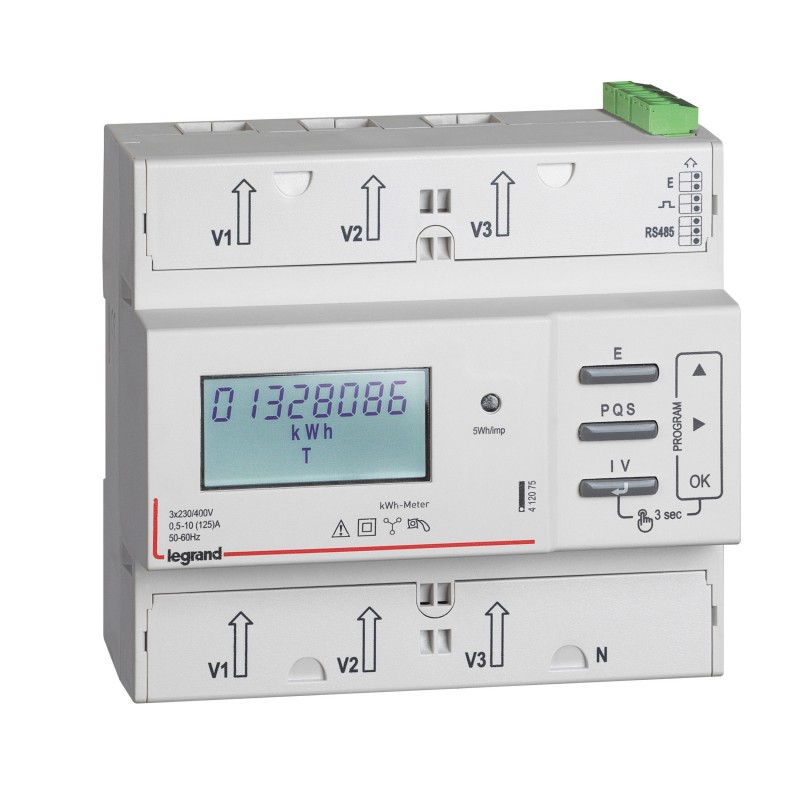

LEGRAND 412075 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

412075 LEGRAND EMDX3 MID 125 TRIF COUNTER

Code: 412075

Manufacturer: LEGRAND

Description:

EMDX3 MID 125 TRIF COUNTER
EMDX3 METER TRIF MID 125
Three-phase meter EMDX³ with direct connection - MID compliant - 125 A - RS485 and pulse outputs - 6 modules
EMDX³ - MID - direct connection 125A - 6mod three-phase energy meter

Categories:

  • Meters > Kilowatt-hour meter
  • LEGRAND > SUPERVISION AND ENERGY MEASUREMENT

Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 375,71 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 15-17 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

  • Energy efficiency solution
  • Pack (number of units)1
  • Volume (dm3)1.287
  • Weight (g)612.00
Product characteristics
Three-phase meters
Direct connection
  • MID compliant :
  • Maximum current : 125 A
  • Output type : Pulse and RS 485
  • Dual tariff : Yes
  • Number of modules : 6
General characteristics
EMDX³ electrical energy meters - rail mounting
  • Measure the electricity consumed by a single-phase or three-phase circuit downstream of the electricity distribution metering
  • Display electricity consumption in kWh, as well as other values such as current, active energy, reactive energy and power (depending on the catalogue number)
  • Conform to standards IEC 61557-12, IEC 62053-21/23, IEC 62052-11 and IEC 62052-31
  • MID compliance ensures accuracy of the metering with a view to recharging for the electricity used

ETIM for 412075 Meters (EC001506)

Feature nameMeasurement type load profile (EF008844)
Feature valueNo
Feature nameHeight (EF000040)
Feature value111.5 mm
Feature nameNumber of positions total (counter) (EF004442)
Feature value8
Feature nameEEC40 signature (EF008845)
Feature valueNo
Feature nameWith lock code (EF008846)
Feature valueYes
Feature nameDegree of protection (IP) (EF005474)
Feature valueIP54
Feature nameEnergy type (EF007135)
Feature valueEffective power and reactive power
Feature namePulse rate (EF008840)
Feature value0.001 Imp/kWh (kvarh)
Feature nameAccuracy class (EF008842)
Feature valueB
Feature nameMounting method (EF000003)
Feature valueDRA (DIN-rail adapter)
Feature namePole type (EF008843)
Feature valueFour conductor
Feature nameTariff type (EF007550)
Feature valueTwo-tariff
Feature nameApproval (EF008837)
Feature valueMeasuring Instruments Directive
Feature nameFrequency (EF000416)
Feature value47 Hz
Feature namePulse output (EF008838)
Feature valueOptic
Feature nameMax. current (Imax) (EF000877)
Feature value125 A
Feature namePulse type (EF008839)
Feature valueS0
Feature nameTariff control (EF008834)
Feature valueExternal
Feature nameSuitable for (EF000073)
Feature valuePurchase
Feature nameEscapement mechanism (EF008835)
Feature valueYes
Feature nameModel (EF000010)
Feature valueDirect measurement
Feature nameCalibrated (EF008836)
Feature valueYes
Feature nameType of meter (EF005441)
Feature valueElectronic
Feature nameType of interface (EF006977)
Feature valueRS-485
Feature nameNominal current (In) (EF008873)
Feature value20 A
Feature nameWidth in number of modular spacings (EF002950)
Feature value6
Feature nameNominal voltage (Un) N-L (EF008871)
Feature value197 V
Feature nameNominal voltage (Un) L-L (EF008872)
Feature value340 V
Feature nameDepth (EF000049)
Feature value65.6 mm
Feature nameType of indication (EF000306)
Feature valueDigital
Feature nameWidth (EF000008)
Feature value107.2 mm

DATASHEET - PDF

Title
Size
Type
412075 EN_412075.pdf
136 Kbytes
