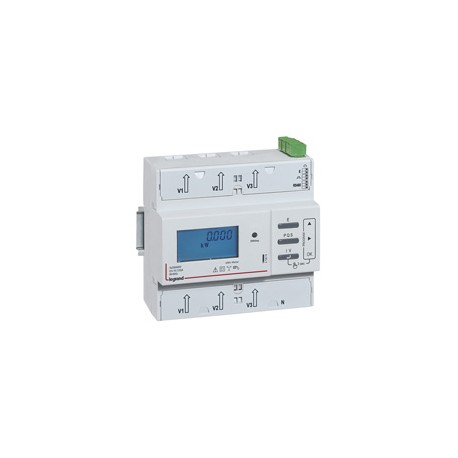

412074 LEGRAND EMDX3 METER THREE-PHASE 125A
412074
LEGRAND
EMDX3 METER THREE-PHASE 125A
EMDX³ 125A Energy Meter Three Phase Direct Connection Pulse and RS 485 Output Non-MID
Three-phase energy meter EMDX³ - non-MID - direct connection 125A - 6mod
Meters > Kilowatt-hour meter
SUPERVISION AND ENERGY MEASUREMENT
Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND
Related products
▲Best sellers
▲More info
▲| Type of meter | Electronic |
|---|---|
| Nominal current (In) | 20 A |
| Max. current (Imax) | 125 A |
| Nominal voltage (Un) N-L | 197-265 V |
| Nominal voltage (Un) L-L | 340-465 V |
| Frequency | 47-63 Hz |
| Accuracy class | B |
| Pole type | Four conductor |
| Model | Direct measurement |
| Energy type | Effective power and reactive power |
| Suitable for | Purchase |
| Tariff type | Two-tariff |
| Tariff control | External |
| Measurement type load profile | No |
| Escapement mechanism | Yes |
| Calibrated | Yes |
| Approval | Domestic |
| Pulse output | Optical |
| Pulse type | S0 |
| Pulse rate | 0.001-100 Imp/kWh (kvarh) |
| Type of indication | Digital |
| Mounting method | DRA (DIN-rail adaptor) |
| Width in number of modular spacings | 6 |
|---|---|
| Width | 107.2 mm |
| Depth | 65.6 mm |
| Height | 111.5 mm |
| Type of interface | RS-485 |
| EEC40 signature | No |
| With lock code | Yes |
| Number of positions total (counter) | 8 |
| Degree of protection (IP) | IP54 |
| Operating / setting temperature | -5-55 °C |
| Storage temperature | -25-70 °C |
| Voltage type | AC |
| Terminal marking indication | Yes |
| Colour | Grey |
| RAL-number | 7035 |
| Halogen free | Yes |
| Prewired | No |
| Connection type | Screwed terminal |
| Terminals capacity | 4-50 mm² |
| Label space/information surface | No |
| Connected object | No |
| Feature Name | Feature Value |
|---|---|
| Measurement type load profile (EF008844) | No |
| Height (EF000040) | 111.5 mm |
| Number of positions total (counter) (EF004442) | 8 |
| EEC40 signature (EF008845) | No |
| With lock code (EF008846) | Yes |
| Degree of protection (IP) (EF005474) | IP54 |
| Energy type (EF007135) | Effective power and reactive power |
| Pulse rate (EF008840) | 0.001 Imp/kWh (kvarh) |
| Accuracy class (EF008842) | B |
| Mounting method (EF000003) | DRA (DIN-rail adapter) |
| Pole type (EF008843) | Four conductor |
| Tariff type (EF007550) | Two-tariff |
| Approval (EF008837) | Domestic |
| Frequency (EF000416) | 47 Hz |
| Pulse output (EF008838) | Optic |
| Max. current (Imax) (EF000877) | 125 A |
| Pulse type (EF008839) | S0 |
| Tariff control (EF008834) | External |
| Suitable for (EF000073) | Purchase |
| Escapement mechanism (EF008835) | Yes |
| Model (EF000010) | Direct measurement |
| Calibrated (EF008836) | Yes |
| Type of meter (EF005441) | Electronic |
| Type of interface (EF006977) | RS-485 |
| Nominal current (In) (EF008873) | 20 A |
| Width in number of modular spacings (EF002950) | 6 |
| Nominal voltage (Un) N-L (EF008871) | 197 V |
| Nominal voltage (Un) L-L (EF008872) | 340 V |
| Depth (EF000049) | 65.6 mm |
| Type of indication (EF000306) | Digital |
| Width (EF000008) | 107.2 mm |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| 412074 EN_412074.pdf | 137 Kbytes |
 |
