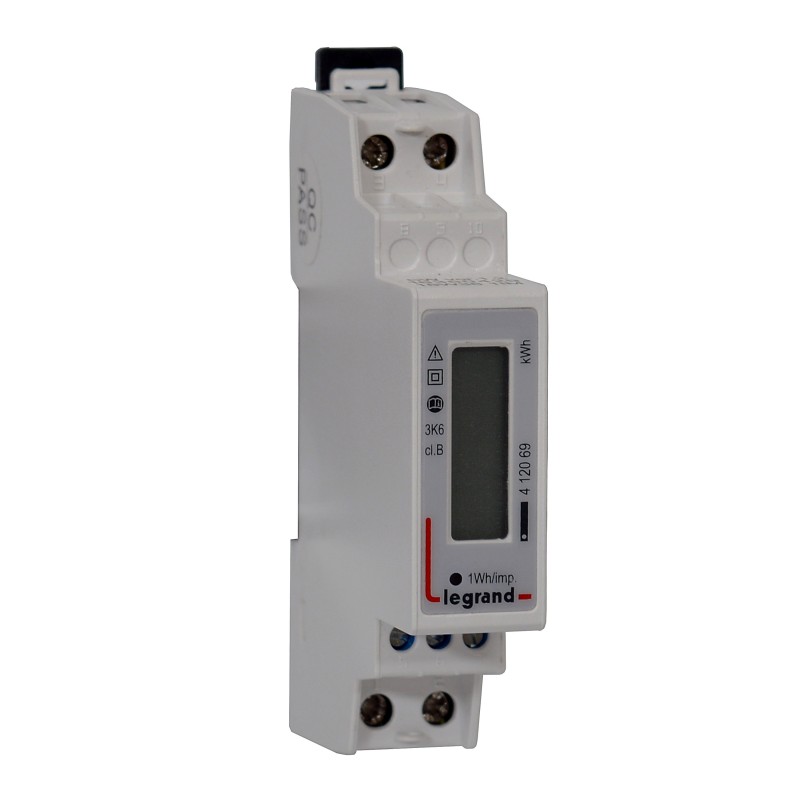

LEGRAND 412069 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

412069 LEGRAND EMDX3 MONOF COUNTER. MID 45A

Code: 412069

Manufacturer: LEGRAND

Description:

EMDX3 MONOF COUNTER. MID 45A
EMDX3 METER MONOF. MID 45A
EMDX³ 45A Energy Meter Single Phase Direct Connection Pulse Output MID Compliant
Single-phase energy meter EMDX³ - MID - direct connection 45A - 1mod

Categories:

  • Meters > Kilowatt-hour meter
  • LEGRAND > SUPERVISION AND ENERGY MEASUREMENT

Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 144,03 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 15-17 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

Measure the electricity consumed by a single phase or three phase circuit downstream of the electricity distribution metering Display electricity consumption in kWh, as well as other values such as current, active energy, reactive energy and power (depending on the catalogue number) MID compliance ensures accuracy of the metering with a view to recharging for the electricity used
Type of meterElectronic
Nominal current (In)5 A
Max. current (Imax)45 A
Nominal voltage (Un) N-L161-297 V
Frequency47-63 Hz
Accuracy classB
Pole typeSingle phase
ModelDirect measurement
Energy typeEffective power
Suitable forPurchase
Tariff typeOne-tariff
Measurement type load profileNo
Escapement mechanismYes
CalibratedYes
ApprovalMeasuring Instruments Directive
Pulse outputOptical
Pulse typeS0
Pulse rate1000-1000 Imp/kWh (kvarh)
Type of indicationDigital
Mounting methodDRA (DIN-rail adaptor)
Width in number of modular spacings1
Width62 mm
Depth18.1 mm
Height120 mm
Type of interfaceNone
EEC40 signatureNo
With lock codeNo
Number of positions total (counter)7
Degree of protection (IP)IP20
Operating / setting temperature-5-55 °C
Storage temperature-25-70 °C

ETIM for 412069 Meters (EC001506)

Feature nameMeasurement type load profile (EF008844)
Feature valueNo
Feature nameHeight (EF000040)
Feature value120 mm
Feature nameNumber of positions total (counter) (EF004442)
Feature value7
Feature nameEEC40 signature (EF008845)
Feature valueNo
Feature nameWith lock code (EF008846)
Feature valueNo
Feature nameDegree of protection (IP) (EF005474)
Feature valueIP20
Feature nameEnergy type (EF007135)
Feature valueEffective power
Feature namePulse rate (EF008840)
Feature value1000 Imp/kWh (kvarh)
Feature nameAccuracy class (EF008842)
Feature valueB
Feature nameMounting method (EF000003)
Feature valueDRA (DIN-rail adapter)
Feature namePole type (EF008843)
Feature valueSingle phase
Feature nameTariff type (EF007550)
Feature valueOne-tariff
Feature nameApproval (EF008837)
Feature valueMeasuring Instruments Directive
Feature nameFrequency (EF000416)
Feature value47 Hz
Feature namePulse output (EF008838)
Feature valueOptic
Feature nameMax. current (Imax) (EF000877)
Feature value45 A
Feature namePulse type (EF008839)
Feature valueS0
Feature nameSuitable for (EF000073)
Feature valuePurchase
Feature nameEscapement mechanism (EF008835)
Feature valueYes
Feature nameModel (EF000010)
Feature valueDirect measurement
Feature nameCalibrated (EF008836)
Feature valueYes
Feature nameType of meter (EF005441)
Feature valueElectronic
Feature nameType of interface (EF006977)
Feature valueNone
Feature nameNominal current (In) (EF008873)
Feature value5 A
Feature nameWidth in number of modular spacings (EF002950)
Feature value1
Feature nameNominal voltage (Un) N-L (EF008871)
Feature value161 V
Feature nameDepth (EF000049)
Feature value18.1 mm
Feature nameType of indication (EF000306)
Feature valueDigital
Feature nameWidth (EF000008)
Feature value62 mm
