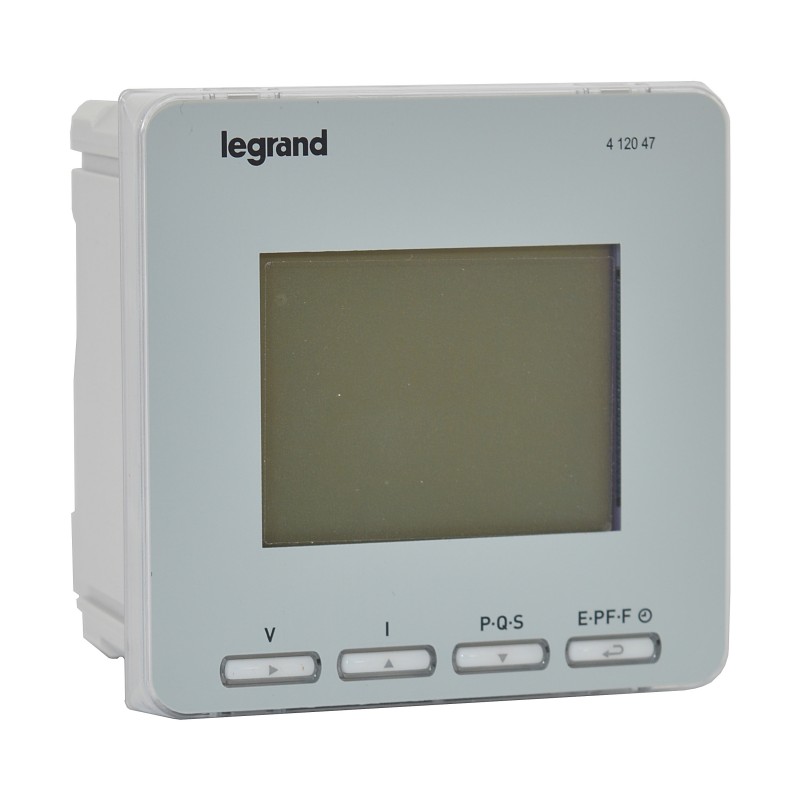

412047 LEGRAND A CENTRAL MEASURE ON THE DOOR
412047
LEGRAND
A CENTRAL MEASURE ON THE DOOR
Multifunction measuring unit EMDX³ Access - door/solid faceplate mounting
EMDX³ Basic multifunction measuring instrument - pulse output and Modbus RS485
Devices for distribution board-/surface mounting > Multifunction measuring instrument
SUPERVISION AND ENERGY MEASUREMENT
Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND
Best sellers
▲More info
▲- Energy efficiency solution
- Pack (number of units)1
- Volume (dm3)1.563
- Weight (g)338.00
Precision class: 1
- For mounting on door or solid faceplate
- Dimensions: 96 x 96 x 62 mm
- LCD display
- Connection with current transformers (CT)
- Measurement of currents, voltages, frequency, active, reactive and apparent power and power factor
- Metering:
- Active energy consumed or produced
- Reactive energy consumed or produced
- THD voltages and currents
- RS 485 communication and Pulse output
- Conform to standards:
- IEC 61557-12
- IEC 62053-22
| Feature Name | Feature Value |
|---|---|
| Display (EF000360) | LCD |
| Measurement type load profile (EF008844) | No |
| Height (EF000040) | 96 mm |
| Mounting method (EF000003) | Front mounting |
| With communication interface RS-485 (EF007314) | Yes |
| Pole type (EF008843) | Three conductor/four conductor |
| With communication interface KNX (EF015735) | No |
| Power factor (EF001927) | Yes |
| Number of voltage measurement inputs (EF015385) | 3 |
| Number of current measurement inputs (EF015388) | 3 |
| Apparent power (EF001929) | Yes |
| Supporting protocol for IEC 61850 Ethernet (EF015389) | No |
| Max. current (Imax) (EF000877) | 6 A |
| Pulse output (EF008838) | Electrical |
| Ampere meter (EF006555) | Yes |
| Voltage type (supply voltage) (EF002991) | AC |
| Supporting protocol for PROFINET IO (EF007525) | No |
| Pulse counter (EF006559) | No |
| Suitable for RJ plug (EF008697) | No |
| Frequency meter (EF006558) | Yes |
| With rotational speed meter (EF006557) | No |
| Measuring range for frequency (EF009469) | 45 Hz |
| Reactive power meter (EF006556) | Yes |
| Depth (EF000049) | 62 mm |
| Step angle (cos phi) (EF001930) | No |
| Degree of protection (IP), front side (EF003118) | Other |
| Width (EF000008) | 96 mm |
| Connectable conductor cross section solid-core (EF007337) | 2.5 mm² |
| Supporting protocol for Modbus (EF003057) | Yes |
| Supply voltage AC 50 Hz (EF007532) | 100 V |
| Supply voltage AC 60 Hz (EF007533) | 100 V |
| Accuracy class reactive energy according to IEC 62053-23 (EF015239) | Other |
| Supporting protocol for PROFIBUS (EF003052) | No |
| Effective power measurement device (EF006561) | Yes |
| Voltmeter (EF006560) | Yes |
| Wth communication interface M-Bus (EF016136) | No |
| Remote display (EF016138) | No |
| Calibrated (EF008836) | Yes |
| Nominal current (In) (EF008873) | 5 A |
| Supporting protocol for other bus systems (EF003062) | No |
| Accuracy class active energy according to IEC 62053-22 (EF015238) | Other |
| With audit logging (audit log) (EF015391) | No |
| Supporting protocol for OPC UA PubSub (EF015390) | No |
| With logging of security events (security event log) (EF015393) | No |
| Harmonics measurement (EF001835) | No |
| With firmware signature (EF015392) | No |
| Web server with HTTPS transfer protocol (EF015395) | No |
| With Role Based Access Control (RBAC) (EF015394) | No |
| Measured value memory (EF000307) | Yes |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| 412047 EN_412047.pdf | 480 Kbytes |
 |
