LEGRANDSUPERVISION AND ENERGY MEASUREMENT412045 LEGRAND MODULAR METER

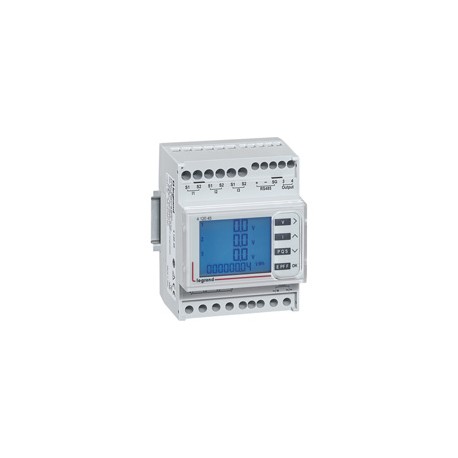

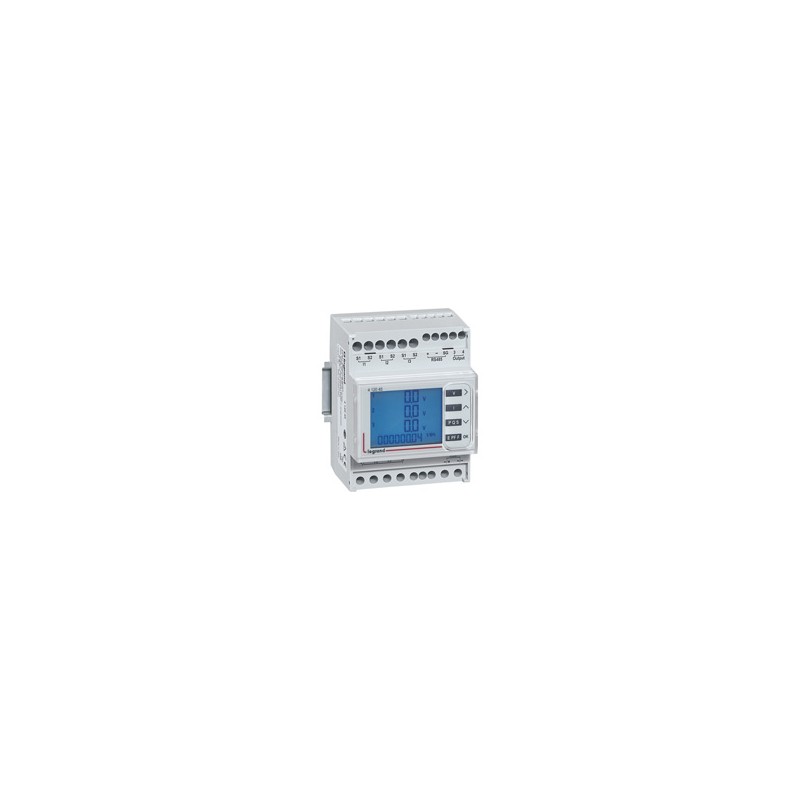

LEGRAND 412045 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

412045 LEGRAND MODULAR METER

Code: 412045

Manufacturer: LEGRAND

Description:

MODULAR METER
CENTRAL OF AS MODULAR
Multifunction measuring unit EMDX³ - rail mounting - 4 modules
Modular EMDX³ Basic Measuring Instrument - Pulse Output and Modbus RS485

Categories:

  • Devices for distribution board-/surface mounting > Multifunction measuring instrument
  • LEGRAND > SUPERVISION AND ENERGY MEASUREMENT

Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 226,60 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 5 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

  • Energy efficiency solution
  • Pack (number of units)1
  • Volume (dm3)0.701
  • Weight (g)235.00
Product characteristics
EMDX³ modular
Multi-function measuring unit
  • For mounting on symmetrical rail
  • Width: 4 modules
  • LCD display
  • Precision class: 1
  • Connection with current transformers (CT)
  • Measurement of currents, voltages, frequency, active, reactive and apparent power, power factor, active and reactive energy
  • THD voltages and currents
  • RS 485 and pulse output
General characteristics
EMDX³ multi-function measuring units - rail mounting
  • Conform to standards:
    • IEC 61557-12
    • IEC 62053-22
    • IEC 62053-23 class 1

ETIM for 412045 Modular devices for distribution board/surface mounting (EC002301)

Feature nameDisplay (EF000360)
Feature valueLCD
Feature nameMeasurement type load profile (EF008844)
Feature valueNo
Feature nameHeight (EF000040)
Feature value90 mm
Feature nameMounting method (EF000003)
Feature valueDIN rail
Feature nameWith communication interface RS-485 (EF007314)
Feature valueYes
Feature namePole type (EF008843)
Feature valueThree conductor/four conductor
Feature nameWith communication interface KNX (EF015735)
Feature valueNo
Feature namePower factor (EF001927)
Feature valueYes
Feature nameNumber of voltage measurement inputs (EF015385)
Feature value3
Feature nameNumber of current measurement inputs (EF015388)
Feature value3
Feature nameApparent power (EF001929)
Feature valueYes
Feature nameSupporting protocol for IEC 61850 Ethernet (EF015389)
Feature valueNo
Feature nameMax. current (Imax) (EF000877)
Feature value6 A
Feature namePulse output (EF008838)
Feature valueElectrical
Feature nameAmpere meter (EF006555)
Feature valueYes
Feature nameVoltage type (supply voltage) (EF002991)
Feature valueAC
Feature nameSupporting protocol for PROFINET IO (EF007525)
Feature valueNo
Feature namePulse counter (EF006559)
Feature valueNo
Feature nameSuitable for RJ plug (EF008697)
Feature valueNo
Feature nameFrequency meter (EF006558)
Feature valueYes
Feature nameWith rotational speed meter (EF006557)
Feature valueNo
Feature nameMeasuring range for frequency (EF009469)
Feature value45 Hz
Feature nameReactive power meter (EF006556)
Feature valueYes
Feature nameDepth (EF000049)
Feature value65 mm
Feature nameStep angle (cos phi) (EF001930)
Feature valueNo
Feature nameDegree of protection (IP), front side (EF003118)
Feature valueOther
Feature nameWidth (EF000008)
Feature value71.2 mm
Feature nameConnectable conductor cross section solid-core (EF007337)
Feature value2.5 mm²
Feature nameSupporting protocol for Modbus (EF003057)
Feature valueYes
Feature nameSupply voltage AC 50 Hz (EF007532)
Feature value100 V
Feature nameSupply voltage AC 60 Hz (EF007533)
Feature value100 V
Feature nameAccuracy class reactive energy according to IEC 62053-23 (EF015239)
Feature valueOther
Feature nameSupporting protocol for PROFIBUS (EF003052)
Feature valueNo
Feature nameEffective power measurement device (EF006561)
Feature valueYes
Feature nameVoltmeter (EF006560)
Feature valueYes
Feature nameWth communication interface M-Bus (EF016136)
Feature valueNo
Feature nameRemote display (EF016138)
Feature valueNo
Feature nameCalibrated (EF008836)
Feature valueYes
Feature nameNominal current (In) (EF008873)
Feature value5 A
Feature nameSupporting protocol for other bus systems (EF003062)
Feature valueNo
Feature nameAccuracy class active energy according to IEC 62053-22 (EF015238)
Feature valueOther
Feature nameWith audit logging (audit log) (EF015391)
Feature valueNo
Feature nameSupporting protocol for OPC UA PubSub (EF015390)
Feature valueNo
Feature nameWith logging of security events (security event log) (EF015393)
Feature valueNo
Feature nameHarmonics measurement (EF001835)
Feature valueNo
Feature nameWith firmware signature (EF015392)
Feature valueNo
Feature nameWeb server with HTTPS transfer protocol (EF015395)
Feature valueNo
Feature nameWith Role Based Access Control (RBAC) (EF015394)
Feature valueNo
Feature nameMeasured value memory (EF000307)
Feature valueYes

DATASHEET - PDF

Title
Size
Type
412045 EN_412045.pdf
536 Kbytes
