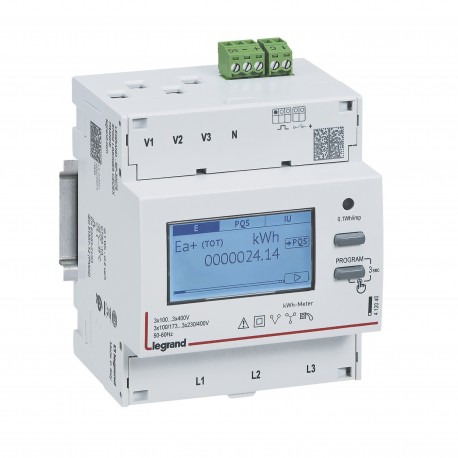

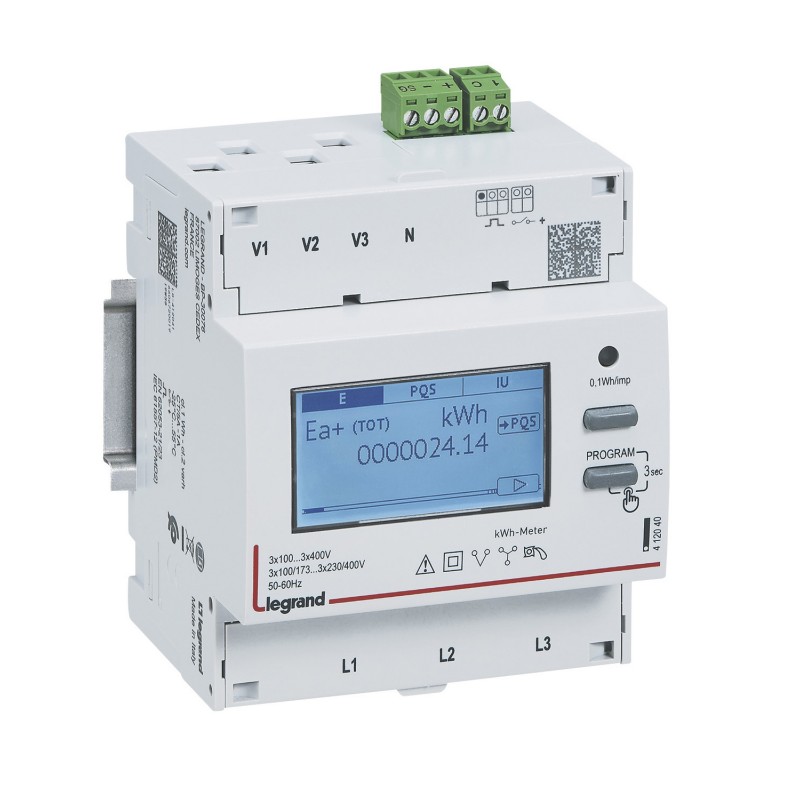

412042 LEGRAND EMDX3 TRI COUNTER FOR TI 5A MID

Measure the electricity consumed by a single phase or three phase circuit downstream of the electricity distribution metering Display electricity consumption in kWh, as well as other values such as current, active energy, reactive energy and power (depending on the catalogue number) MID compliance ensures accuracy of the metering with a view to recharging for the electricity used

Type of meter	Electronic
Nominal current (In)	5 A
Max. current (Imax)	6 A
Nominal voltage (Un) N-L	90-265 V
Nominal voltage (Un) L-L	156-460 V
Frequency	49-61 Hz
Accuracy class	B
Pole type	Three conductor/four conductor
Model	Measurement transformer
Energy type	Effective power and reactive power
Suitable for	Purchase/supply
Tariff type	Two-tariff
Tariff control	External
Measurement type load profile	No
Escapement mechanism	Yes
Calibrated	Yes
Approval	Measuring Instruments Directive
Pulse output	Optical
Pulse type	S0
Pulse rate	0.001-10 Imp/kWh (kvarh)
Type of indication	Digital

Mounting method	DRA (DIN-rail adaptor)
Width in number of modular spacings	4
Width	71.2 mm
Depth	66 mm
Height	92.4 mm
Type of interface	None
With lock code	Yes
Number of positions total (counter)	9
Degree of protection (IP)	IP54
Operating / setting temperature	-25-55 °C
Storage temperature	-25-70 °C
Voltage type	AC
Terminal marking indication	Yes
Colour	Grey
RAL-number	7035
Halogen free	Yes
Prewired	No
Connection type	Screwed terminal
Terminals capacity	1-16 mm²
Label space/information surface	No
Connected object	No
