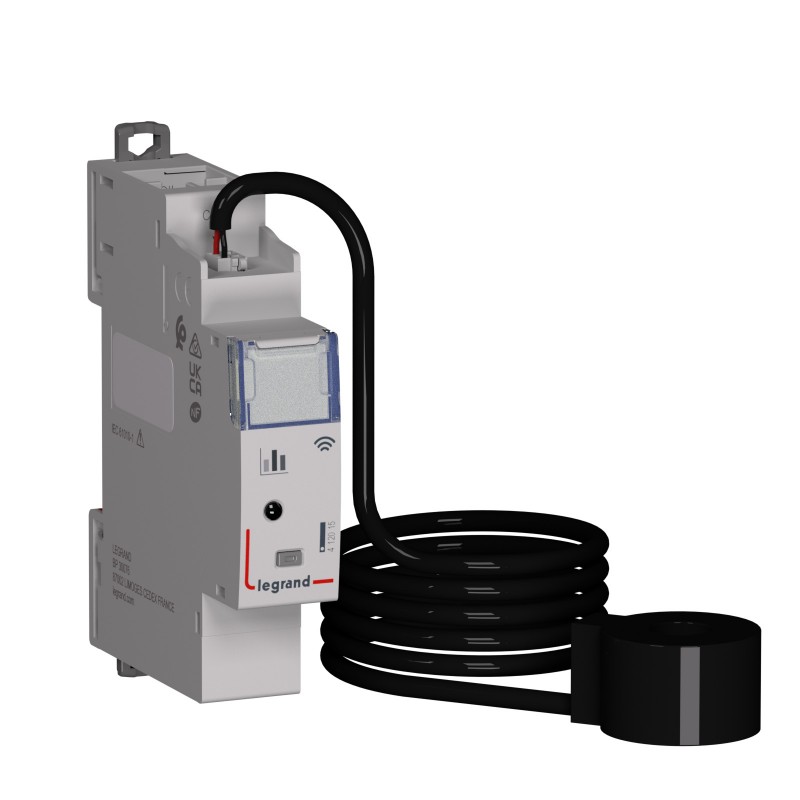

412015 LEGRAND CONNECTED MEASUREMENT MODULE
412015
LEGRAND
CONNECTED MEASUREMENT MODULE
EMDX³ with Netatmo Connected Energy Meter
63A connected measurement module
Installation bus systems > Energy management for bus system
Home > LEGRAND
Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND
Related products
▲Best sellers
▲More info
▲| Bus system KNX | No |
|---|---|
| Bus system KNX-RF (Radio Frequency) | No |
| Bus system radio frequency | No |
| Bus system LON | No |
| Bus system Powernet | No |
| Other bus systems | None |
| Radio frequency bidirectional | Yes |
| Model | Energy meter |
| Connection type | Direct , Cable |
| Reactive power | No |
| Approved according to PTB | No |
| S0 impulse interface | None |
| Tariff switch | No |
| Accuracy class | 1 |
| Width | 17.7 mm |
| Height | 101.9 mm |
| Depth | 67.2 mm |
| degree of impact strength (IK) | IK04 |
| Degree of protection (IP) | IP20 |
| Operating / setting temperature | 5-45 °C |
| Storage temperature | -40-70 °C |
| Voltage type | AC |
|---|---|
| Nominal voltage | 100-240 V |
| Frequency | 50-60 Hz |
| Terminal marking indication | Yes |
| Halogen free | Yes |
| Terminals capacity | 0.75-2.5 mm² |
| Label space/information surface | Yes |
| Fitted with USB plug | No |
| Mounting method | DIN rail |
| Addressable | No |
| Contains Batteries and/or Accumulator | No |
| Connected object | Yes |
| Operating method | Zigbee |
| Application store for download | Google Play Store , App Store |
| Programming way | Smartphone apps |
| Programmable | Yes |
| Interoperable connection Protocol | No |
| Connectable by Internet box | No |
| Compatible voice assistants | Amazon Alexa , Apple Siri , Google Assistant |
| Product use function | Energy measurement and metering |
| Application name | Home + Control |
| Feature Name | Feature Value |
|---|---|
| Bus system KNX-RF (Radio Frequency) (EF008855) | No |
| Model (EF000010) | Energy meter |
| S0 impulse interface (EF001530) | None |
| Bus system LON (EF003831) | No |
| Bus system KNX (EF001499) | No |
| Accuracy class (EF001532) | 1 |
| Connection type (EF000124) | Direct |
| Reactive power (EF001531) | No |
| Radio frequency bidirectional (EF009466) | Yes |
| Bus system Powernet (EF001501) | No |
| Bus system radio frequency (EF001500) | No |
| Approved according to PTB (EF001533) | No |
| Other bus systems (EF003811) | None |
| Tariff switch (EF001529) | No |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| 412015 EN_412015.pdf | 2 Mbytes |
 |
