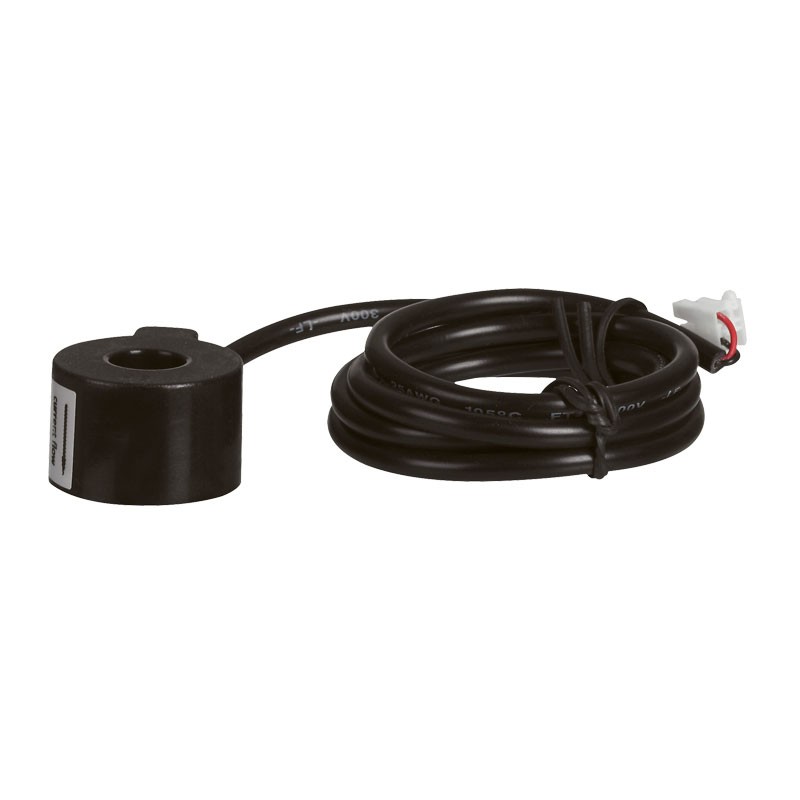

412008 LEGRAND TOROIDAL MEASURE 80A
412008
LEGRAND
TOROIDAL MEASURE 80A
Toroidal measuring up to 80A maximum for connected eco-meter
Low-voltage industrial components > Current transformer
SUPERVISION AND ENERGY MEASUREMENT
Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND
Best sellers
▲More info
▲Product features
Fast-connected closed current transformer - Associated with the connected eco-meter of the Smart Electrical Panel range for the measurement of the rest of the circuits - Allows to measure the electrical consumption up to 80AGeneral features
EMDX³ modular energy meters are used to measure the active and reactive electrical energy consumed/produced by a single-phase or three-phase circuit downstream of the power distribution meter. They display the energy consumption of the measured circuit as well as other values and transmit them to monitoring or energy management systems. The display is also done on the product by an LCD screen, and some meters are MID compatible for the rebilling of the energy consumed. EMDX³ control panels count the energy consumed by the different circuits, measure the electrical (intensity, voltage, power, etc.) or analog (temperature) values to check the correct operation of the installation. They monitor the quality of energy by harmonic analysis and the measurement of reactive energy and communicate the measured values to the energy monitoring or management systems, in order to optimize the consumption and energy quality of the electrical circuits. Mounting is possible on a rail or on a faceplate or door of the electrical cabinet.| Feature Name | Feature Value |
|---|---|
| Rated primary current (EF007405) | 80 A |
| Secondary connection (EF021093) | Plug-in connection |
| Model (EF000010) | Single-phase current converter |
| Calibrated (EF008836) | Yes |
| Overcurrent limiting factor (EF007511) | FS 10 |
| Accuracy class (EF008842) | Other |
| Snap mounting (EF007462) | Yes |
| With copper rail (EF007380) | No |
| Height opening (EF012757) | 10 mm |
| Opening diameter (EF005153) | 10 mm |
| Width opening (EF012758) | 10 mm |
| With contact protection (EF008186) | Yes |
| Number of primary inputs (EF006947) | 1 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| 412008 EN_412008.pdf | 2 Mbytes |
 |
