LEGRANDTERTIARY CIRCUIT BREAKERS411554 LEGRAND DX3 DIFFERENTIAL 2/25/30 A

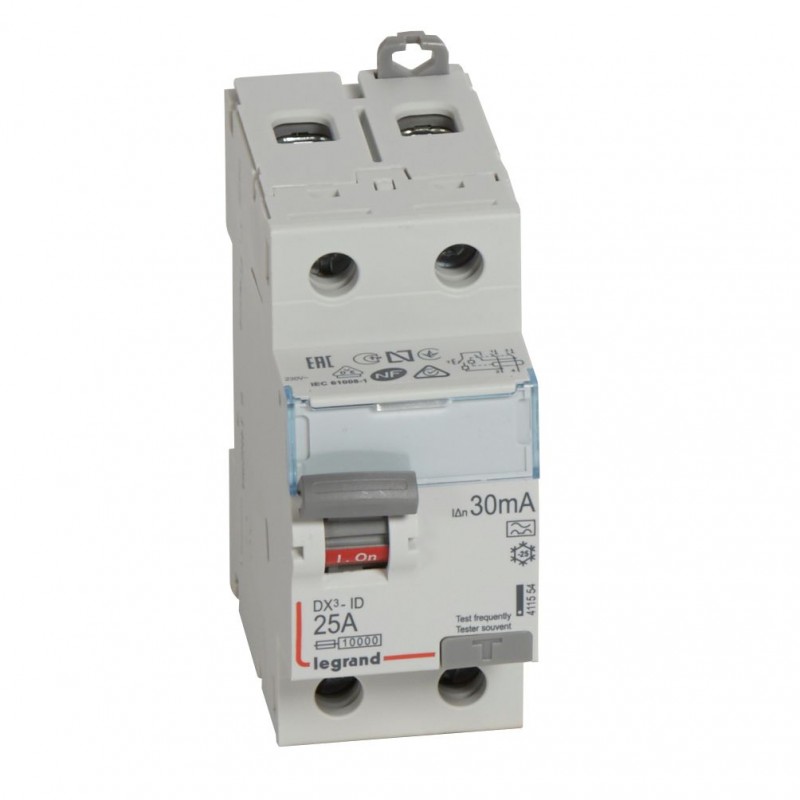

LEGRAND 411554 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

411554 LEGRAND DX3 DIFFERENTIAL 2/25/30 A

Code: 411554

Manufacturer: LEGRAND

Description:

DX3 DIFFERENTIAL 2/25/30 A
DIFFERENTIAL DX3 2/25/30 TO
DX³-ID 2 Pole 25A A Type RCD 30mA
DX³ Differential Switch - 2P - 230V~ - 25A - Type A - 30mA - 2mod

Categories:

  • Circuit breakers and fuses > Residual current circuit breaker (RCCB)
  • LEGRAND > TERTIARY CIRCUIT BREAKERS

Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 79,66 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 5 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

Conform to IEC 61008-1 * AC type : detect AC component faults * A type : detect AC and DC component faults Enhanced immunity to unwanted tripping in disturbed environments Can be equipped with DX3 auxiliaries and accessories
Number of poles2
Rated voltage230 V
Rated current25 A
Rated fault current0.03 A
Rated insulation voltage Ui250 V
Rated impulse withstand voltage Uimp4 kV
Mounting methodDIN rail
Leakage current typeA
Selective protectionNo
Short-time delayed trippingNo
Short-circuit breaking capacity (Icw)10 kA
Surge current capacity0.25 kA
Voltage typeAC
With interlocking deviceYes
Frequency50 Hz
Additional equipment possibleYes
Degree of protection (IP)IP20
Width in number of modular spacings2
Built-in depth44 mm
Ambient temperature during operating-25-60 °C
Pollution degree2
Connectable conductor cross section multi-wired0.75-35 mm²
Connectable conductor cross section solid-core0.75-50 mm²
ColourGrey
RAL-number (similar)7035
Explosion-proofNo
Width35.6 mm
Height94.8 mm
Depth77.8 mm
degree of impact strength (IK)IK04
Storage temperature-40-70 °C
Electric supplying directionBy the top or bottom
Terminal marking indicationNo
Stress test conformity (1000V)Yes
Halogen freeYes
Connection typeScrewed terminal , Busbar and cable
Label space/information surfaceYes

ETIM for 411554 Circuit breakers and fuses (EC000003)

Feature nameExplosion-proof (EF004663)
Feature valueNo
Feature nameConnectable conductor cross section solid-core (EF007337)
Feature value0.75 mm²
Feature nameFrequency (EF005455)
Feature value50 Hz
Feature nameSelective protection (EF002561)
Feature valueNo
Feature nameShort-circuit breaking capacity (Icw) (EF002562)
Feature value10 kA
Feature nameAmbient temperature during operating (EF007515)
Feature value-25 °C
Feature nameDegree of protection (IP) (EF005474)
Feature valueIP20
Feature nameLeakage current type (EF002560)
Feature valueA
Feature nameVoltage type (EF000187)
Feature valueAC
Feature nameAdditional equipment possible (EF008148)
Feature valueYes
Feature nameMounting method (EF000003)
Feature valueDIN rail
Feature nameSurge current capacity (EF002564)
Feature value0.25 kA
Feature nameNumber of poles (EF001391)
Feature value2
Feature nameShort-time delayed tripping (EF003604)
Feature valueNo
Feature nameRated fault current (EF002358)
Feature value0.03 A
Feature nameRated impulse withstand voltage Uimp (EF011980)
Feature value4 kV
Feature nameBuilt-in depth (EF000218)
Feature value44 mm
Feature nameRAL-number (similar) (EF003882)
Feature value7035
Feature namePollution degree (EF002570)
Feature value2
Feature nameWidth in number of modular spacings (EF002950)
Feature value2
Feature nameRated insulation voltage Ui (EF001366)
Feature value250 V
Feature nameWith interlocking device (EF007385)
Feature valueYes
Feature nameConnectable conductor cross section multi-wired (EF007343)
Feature value0.75 mm²
Feature nameRated current (EF000227)
Feature value25 A
Feature nameRated voltage (EF000228)
Feature value230 V
