LEGRANDTERTIARY CIRCUIT BREAKERS411240 LEGRAND MAGNET DIFER DX3 4P 300mA C20

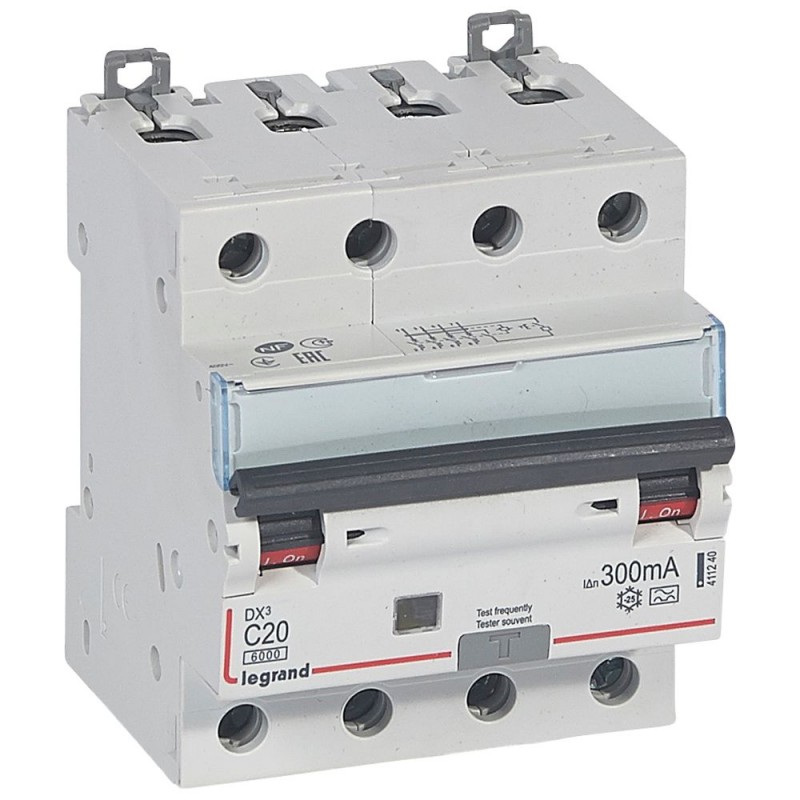

LEGRAND 411240 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

411240 LEGRAND MAGNET DIFER DX3 4P 300mA C20

Code: 411240

Manufacturer: LEGRAND

Description:

MAGNET DIFER DX3 4P 300mA C20
MAGNET DIFFER DX3 4P 300mA C20
RCBO - DX³ 6000 -10 kA -4P-400 V~ -20 A -300 mA -A type
Differential circuit breaker DX³ 6000/10kA curve C - 4P - 20A-300mA - Type A

Categories:

  • Circuit breakers and fuses > Earth leakage circuit breaker
  • LEGRAND > TERTIARY CIRCUIT BREAKERS

Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 171,84 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 15-17 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

  • Pack (number of units)1
  • Volume (dm3)0.701
  • Weight (g)474.00
Product characteristics
4-pole - 400 V~
  • 4-module RCBOs are compatible with prong-type and fork type supply busbars
  • 7-module RCBOs are compatible with prong-type supply busbars only
A Type 300 mA
  • C curve
  • Nominal rating In : 20 A
  • Number of modules : 4
General characteristics
RCBOs DX³ 6000 - 10 kA - residual current circuit breakers from 10 A to 63 A - AC, A and F types
  • Conform to IEC 61009-1, IEC 62423 (F type)
  • Voltage independent tripping
  • Breaking capacity:
    • 6000 - IEC 61009-1 - 10 kA / IEC 60947-2 for single pole + neutral, 2 and 4-pole
  • AC type : detect AC component faults
  • A type : detect AC and DC component faults
  • F type (High immunity) : detect AC and pulsating DC residual currents. Enhanced immunity to unwanted tripping in disturbed environments. Detection of high frequency fault currents
  • Can be equipped with DX³ signalling and remote tripping auxiliaries and motorised controls

ETIM for 411240 Circuit breakers and fuses (EC000905)

Feature nameFrequency (EF005455)
Feature value50 Hz
Feature nameDegree of protection (IP) (EF005474)
Feature valueIP20
Feature nameLeakage current type (EF002560)
Feature valueA
Feature nameVoltage type (EF000187)
Feature valueAC
Feature nameConcurrently switching neutral conductor (EF005997)
Feature valueYes
Feature nameSurge current capacity (EF002564)
Feature value0.25 kA
Feature nameAnti-nuisance tripping version (EF009497)
Feature valueNo
Feature nameRated short-circuit breaking capacity according to IEC 60947-2 (EF006065)
Feature value10 kA
Feature nameRated short-circuit breaking capacity according to EN 61009 (EF012628)
Feature value6 kA
Feature nameRated short-circuit breaking capacity Icn according to EN 61009-1 (EF011981)
Feature value6 kA
Feature nameRated fault current (EF002358)
Feature value0.3 A
Feature nameNumber of protected poles (EF005548)
Feature value4
Feature nameBuilt-in depth (EF000218)
Feature value44 mm
Feature nameNumber of poles (total) (EF008618)
Feature value4
Feature namePollution degree (EF002570)
Feature value2
Feature nameWidth in number of modular spacings (EF002950)
Feature value4
Feature nameWith interlocking device (EF007385)
Feature valueYes
Feature nameRated current (EF000227)
Feature value20 A
Feature nameCurrent limiting class (EF002568)
Feature value3
Feature nameRelease characteristic (EF000889)
Feature valueC
Feature nameRated voltage (EF000228)
Feature value400 V

DATASHEET - PDF

Title
Size
Type
411240 EN_411240.pdf
4 Mbytes
