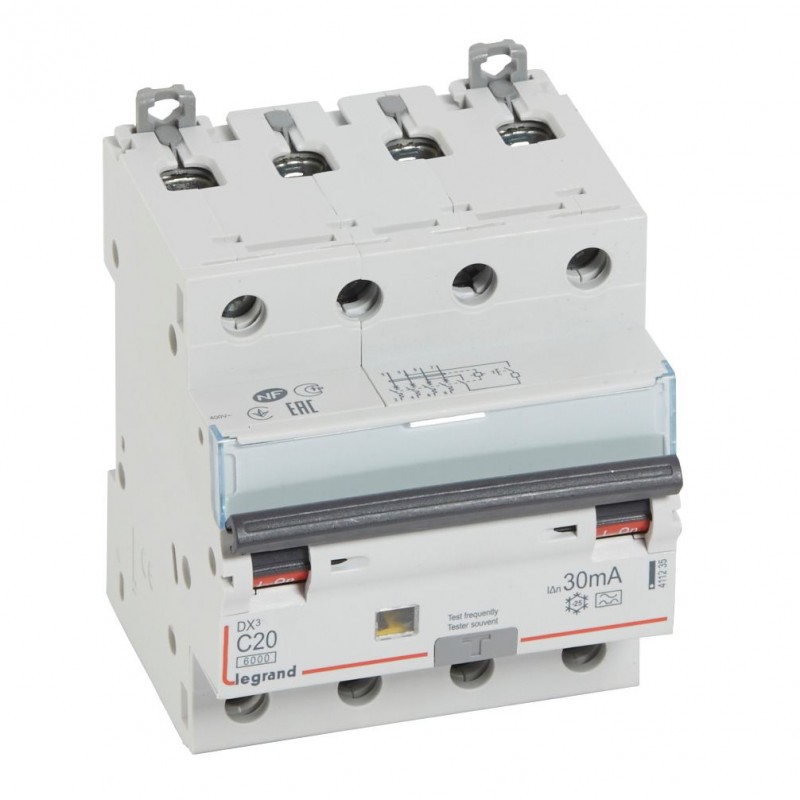

411235 LEGRAND MAGNET DIFFER DX3 4P 30mA C20
411235
LEGRAND
MAGNET DIFFER DX3 4P 30mA C20
RCBO - DX³ 6000 -10 kA -4P-400 V~ -20 A -30 mA -A type
Differential circuit breaker DX³ 6000/10kA curve C - 4P - 20A-30mA - Type A
Circuit breakers and fuses > Earth leakage circuit breaker
TERTIARY CIRCUIT BREAKERS
Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND
Often bought together
▲Best sellers
▲More info
▲- Pack (number of units)1
- Volume (dm3)0.701
- Weight (g)502.00
- 4-module RCBOs are compatible with prong-type and fork type supply busbars
- 7-module RCBOs are compatible with prong-type supply busbars only
- C curve
- Nominal rating In : 20 A
- Number of modules : 4
- Conform to IEC 61009-1, IEC 62423 (F type)
- Voltage independent tripping
- Breaking capacity:
- 6000 - IEC 61009-1 - 10 kA / IEC 60947-2 for single pole + neutral, 2 and 4-pole
- AC type : detect AC component faults
- A type : detect AC and DC component faults
- F type (High immunity) : detect AC and pulsating DC residual currents. Enhanced immunity to unwanted tripping in disturbed environments. Detection of high frequency fault currents
- Can be equipped with DX³ signalling and remote tripping auxiliaries and motorised controls
| Feature Name | Feature Value |
|---|---|
| Frequency (EF005455) | 50 Hz |
| Degree of protection (IP) (EF005474) | IP20 |
| Leakage current type (EF002560) | A |
| Voltage type (EF000187) | AC |
| Concurrently switching neutral conductor (EF005997) | Yes |
| Surge current capacity (EF002564) | 0.25 kA |
| Anti-nuisance tripping version (EF009497) | No |
| Rated short-circuit breaking capacity according to IEC 60947-2 (EF006065) | 10 kA |
| Rated short-circuit breaking capacity according to EN 61009 (EF012628) | 6 kA |
| Rated short-circuit breaking capacity Icn according to EN 61009-1 (EF011981) | 6 kA |
| Rated fault current (EF002358) | 0.03 A |
| Number of protected poles (EF005548) | 4 |
| Built-in depth (EF000218) | 44 mm |
| Number of poles (total) (EF008618) | 4 |
| Pollution degree (EF002570) | 2 |
| Width in number of modular spacings (EF002950) | 4 |
| With interlocking device (EF007385) | Yes |
| Rated current (EF000227) | 20 A |
| Current limiting class (EF002568) | 3 |
| Release characteristic (EF000889) | C |
| Rated voltage (EF000228) | 400 V |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| 411235 EN_411235.pdf | 4 Mbytes |
 |
