LEGRANDTERTIARY CIRCUIT BREAKERS411192 LEGRAND MAGNET DIFER DX3 4P 30mA C63

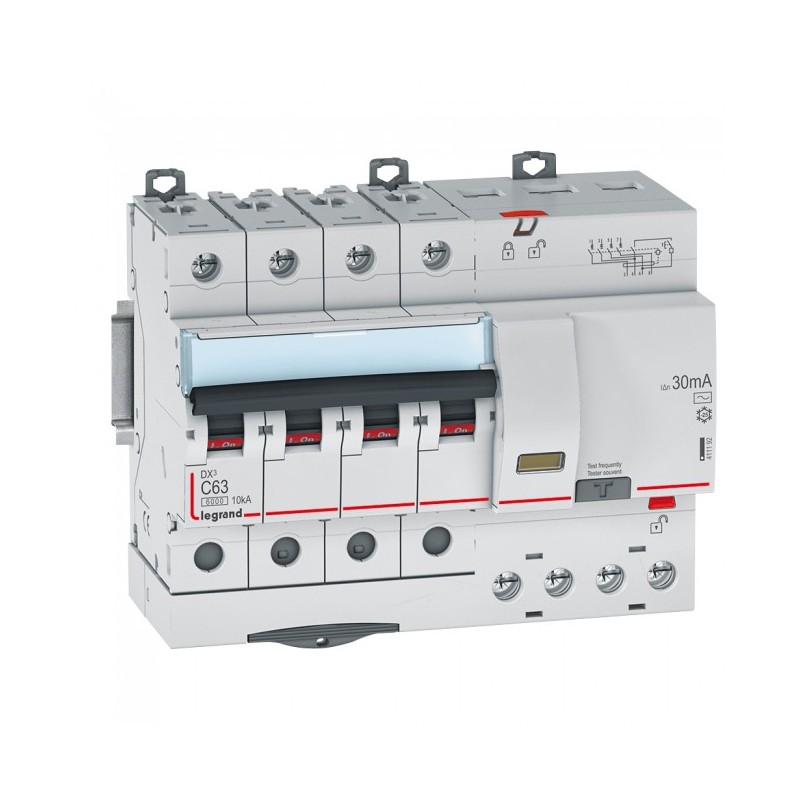

LEGRAND 411192 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

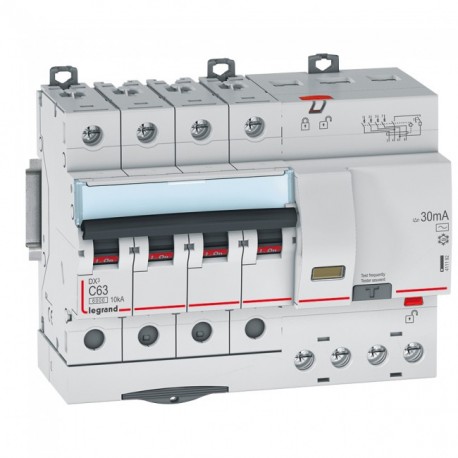

411192 LEGRAND MAGNET DIFER DX3 4P 30mA C63

Code: 411192

Manufacturer: LEGRAND

Description:

MAGNET DIFER DX3 4P 30mA C63
MAGNET DIFFER DX3 4P 30mA C63
DX³ 6000A 4 Pole 63A AC Type RCBO C Curve 30mA
Differential circuit breaker DX³ 6000/10kA curve C - 4P - 63A-30mA - Type AC

Categories:

  • Circuit breakers and fuses > Earth leakage circuit breaker
  • LEGRAND > TERTIARY CIRCUIT BREAKERS

Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 252,75 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 5 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

Breaking capacity: 6000 - IEC 61009-1 - 10 kA / IEC 60947-2 for single pole + neutral, double and four pole * AC type : detect AC component faults Enhanced immunity to unwanted tripping in disturbed environments Can be equipped with DX3 auxiliaries and accessories
Number of poles (total)4
Number of protected poles4
Rated voltage400 V
Rated current63 A
Rated fault current0.03 A
Leakage current typeAC
Current limiting class3
Rated short-circuit breaking capacity according to EN 610096 kA
Rated short-circuit breaking capacity according to IEC 60947-210 kA
Rated short-circuit breaking capacity Icn according to EN 61009-16 kA
Surge current capacity0.25 kA
Voltage typeAC
Frequency50 Hz
Release characteristicC
Concurrently switching neutral conductorYes
With interlocking deviceYes
Pollution degree2
Width in number of modular spacings7
Built-in depth44 mm
Anti-nuisance tripping versionNo
Degree of protection (IP)IP20
Connectable conductor cross section solid-core1-35 mm²
Connectable conductor cross section multi-wired1-25 mm²

ETIM for 411192 Circuit breakers and fuses (EC000905)

Feature nameFrequency (EF005455)
Feature value50 Hz
Feature nameConnectable conductor cross section solid-core (EF007337)
Feature value1 mm²
Feature nameDegree of protection (IP) (EF005474)
Feature valueIP20
Feature nameLeakage current type (EF002560)
Feature valueAC
Feature nameVoltage type (EF000187)
Feature valueAC
Feature nameConcurrently switching neutral conductor (EF005997)
Feature valueYes
Feature nameSurge current capacity (EF002564)
Feature value0.25 kA
Feature nameAnti-nuisance tripping version (EF009497)
Feature valueNo
Feature nameRated short-circuit breaking capacity according to IEC 60947-2 (EF006065)
Feature value10 kA
Feature nameRated short-circuit breaking capacity according to EN 61009 (EF012628)
Feature value6 kA
Feature nameRated short-circuit breaking capacity Icn according to EN 61009-1 (EF011981)
Feature value6 kA
Feature nameRated fault current (EF002358)
Feature value0.03 A
Feature nameNumber of protected poles (EF005548)
Feature value4
Feature nameBuilt-in depth (EF000218)
Feature value44 mm
Feature nameNumber of poles (total) (EF008618)
Feature value4
Feature namePollution degree (EF002570)
Feature value2
Feature nameWidth in number of modular spacings (EF002950)
Feature value7
Feature nameWith interlocking device (EF007385)
Feature valueYes
Feature nameConnectable conductor cross section multi-wired (EF007343)
Feature value1 mm²
Feature nameRated current (EF000227)
Feature value63 A
Feature nameCurrent limiting class (EF002568)
Feature value3
Feature nameRelease characteristic (EF000889)
Feature valueC
Feature nameRated voltage (EF000228)
Feature value400 V

DATASHEET - PDF

Title
Size
Type
411192 EN_411192.pdf
1 Mbytes
