LEGRANDTERTIARY CIRCUIT BREAKERS411189 LEGRAND MAGNET DIFER DX3 4P 30mA C32

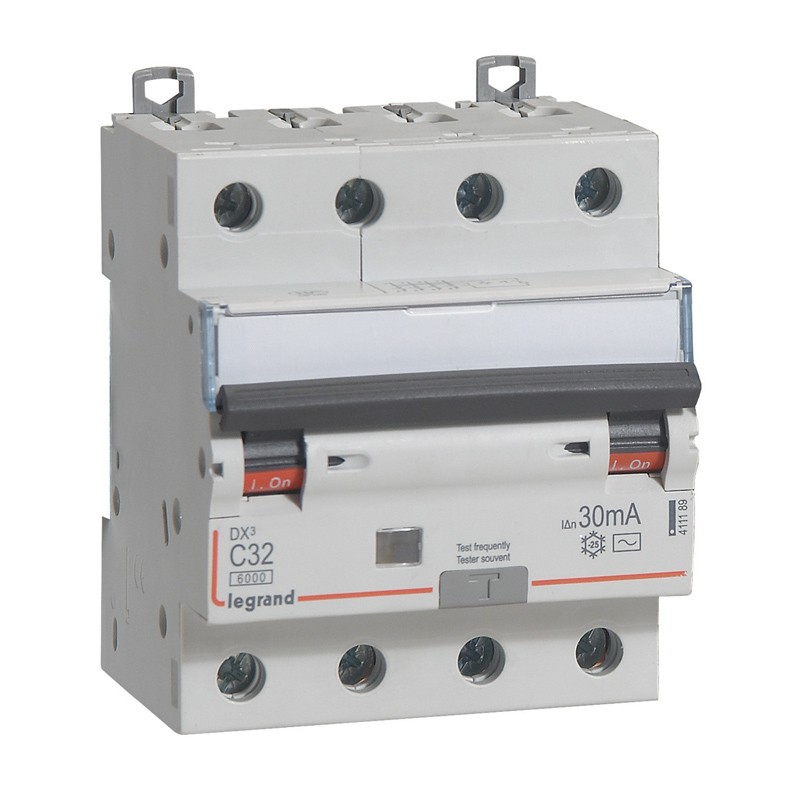

LEGRAND 411189 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

411189 LEGRAND MAGNET DIFER DX3 4P 30mA C32

Code: 411189

Manufacturer: LEGRAND

Description:

MAGNET DIFER DX3 4P 30mA C32
MAGNET DIFFER DX3 4P 30mA C32
DX³ 6000A 4 Pole 32A AC Type RCBO C Curve 30mA
Differential circuit breaker DX³ 6000/10kA curve C - 4P - 32A-30mA - AC Type

Categories:

  • Circuit breakers and fuses > Earth leakage circuit breaker
  • LEGRAND > TERTIARY CIRCUIT BREAKERS

Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 156,69 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 5 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

Breaking capacity: 6000 - IEC 61009-1 - 10 kA / IEC 60947-2 for single pole + neutral, double and four pole * AC type : detect AC component faults Enhanced immunity to unwanted tripping in disturbed environments Can be equipped with DX3 auxiliaries and accessories
Number of poles (total)4
Number of protected poles4
Rated voltage400 V
Rated current32 A
Rated fault current0.03 A
Leakage current typeAC
Current limiting class1
Rated short-circuit breaking capacity according to EN 610096 kA
Rated short-circuit breaking capacity Icn according to EN 61009-16 kA
Surge current capacity0.25 kA
Voltage typeAC
Frequency50 Hz
Release characteristicC
Concurrently switching neutral conductorYes
With interlocking deviceYes
Pollution degree2
Width in number of modular spacings4
Built-in depth44 mm
Anti-nuisance tripping versionNo
Degree of protection (IP)IP20

ETIM for 411189 Circuit breakers and fuses (EC000905)

Feature nameFrequency (EF005455)
Feature value50 Hz
Feature nameDegree of protection (IP) (EF005474)
Feature valueIP20
Feature nameLeakage current type (EF002560)
Feature valueAC
Feature nameVoltage type (EF000187)
Feature valueAC
Feature nameConcurrently switching neutral conductor (EF005997)
Feature valueYes
Feature nameSurge current capacity (EF002564)
Feature value0.25 kA
Feature nameAnti-nuisance tripping version (EF009497)
Feature valueNo
Feature nameRated short-circuit breaking capacity according to IEC 60947-2 (EF006065)
Feature value10 kA
Feature nameRated short-circuit breaking capacity according to EN 61009 (EF012628)
Feature value6 kA
Feature nameRated short-circuit breaking capacity Icn according to EN 61009-1 (EF011981)
Feature value6 kA
Feature nameRated fault current (EF002358)
Feature value0.03 A
Feature nameNumber of protected poles (EF005548)
Feature value4
Feature nameBuilt-in depth (EF000218)
Feature value44 mm
Feature nameNumber of poles (total) (EF008618)
Feature value4
Feature namePollution degree (EF002570)
Feature value2
Feature nameWidth in number of modular spacings (EF002950)
Feature value4
Feature nameWith interlocking device (EF007385)
Feature valueYes
Feature nameRated current (EF000227)
Feature value32 A
Feature nameCurrent limiting class (EF002568)
Feature value1
Feature nameRelease characteristic (EF000889)
Feature valueC
Feature nameRated voltage (EF000228)
Feature value400 V

DATASHEET - PDF

Title
Size
Type
411189 EN_411189.pdf
4 Mbytes
